Teltonika TSW040 Industrial 8-Port Fast Ethernet PoE+ Switch, 240W
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, Reliable Power and Connectivity for Industrial Environments
The Teltonika TSW040 is a rugged, unmanaged industrial PoE+ switch designed for high-performance connectivity in demanding conditions. This plug-and-play device features eight 10/100 Mbps Fast Ethernet ports, all equipped with IEEE 802.3af/at Power over Ethernet (PoE+) capabilities. With a total power budget of 240W, it can deliver up to 30W of power per port, making it the perfect solution for powering IP cameras, VoIP phones, wireless access points, and other PoE-compatible devices without needing separate power supplies.
Built for Harsh Conditions
Engineered for industrial applications, the TSW040 is housed in a durable anodized aluminum casing that provides IP30-rated protection. It is built to withstand a wide operating temperature range of -40°C to 75°C, ensuring reliable operation in factories, warehouses, and other unconditioned environments. Its compact design, combined with an integrated DIN rail bracket and wall mounting options, allows for easy and versatile installation in control cabinets and other space-constrained areas.
Effortless Plug-and-Play Deployment
As an unmanaged switch, the TSW040 requires no configuration, offering a true plug-and-play experience for rapid deployment. It supports a wide power input voltage range of 7-57 VDC and features a 2-pin industrial DC power socket, providing flexibility for various industrial power systems. The switch also supports auto MDI/MDIX, eliminating the need for crossover cables.
Technical Specifications
| Ethernet | |

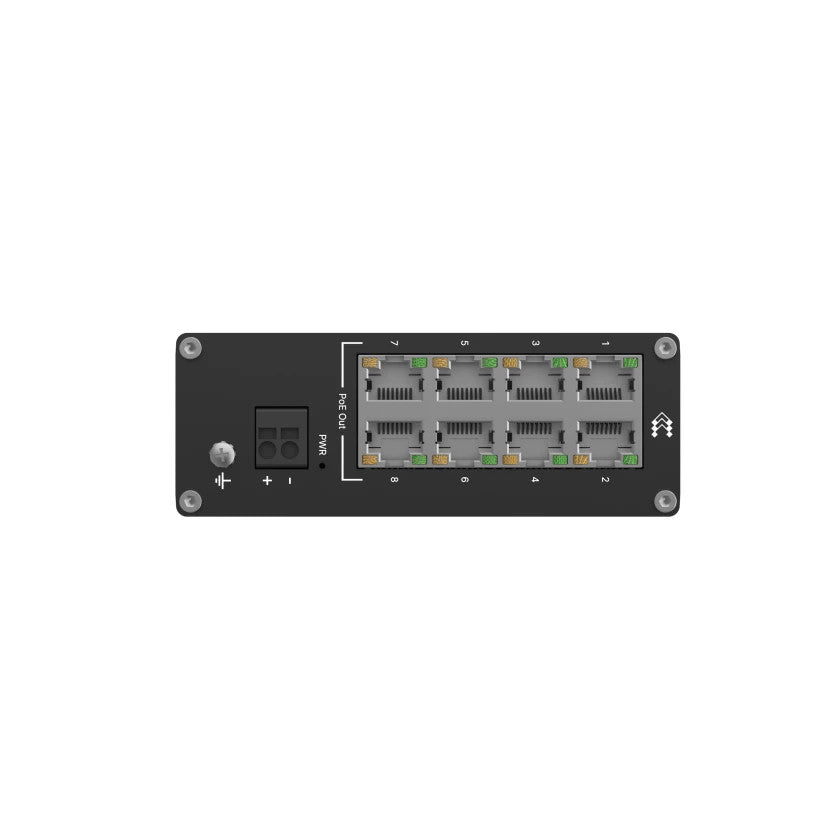

| Ports | 8 x RJ45, 10/100 Mbps |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE (Power over Ethernet) | |
| PoE Ports | 8 Ports (1-8) |
| PoE Standards | 802.3af and 802.3at |
| Max Power per Port | 30 W |
| Total PoE Power Budget | 240 W |
| Performance | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table | 2K Entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| PoE-out Voltage Range | 44 – 57 VDC |
| Power Consumption | Idle: 1W / Max: 2W / PoE Max: 246W |
| Physical | |
| Casing Material | Anodized aluminum housing |
| Dimensions (W x H x D) | 113.1 x 41.2 x 74.6 mm |
| Weight | 280 g |
| Mounting | Integrated DIN rail bracket, wall mount (additional kit needed) |
| Environmental | |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
