Teltonika

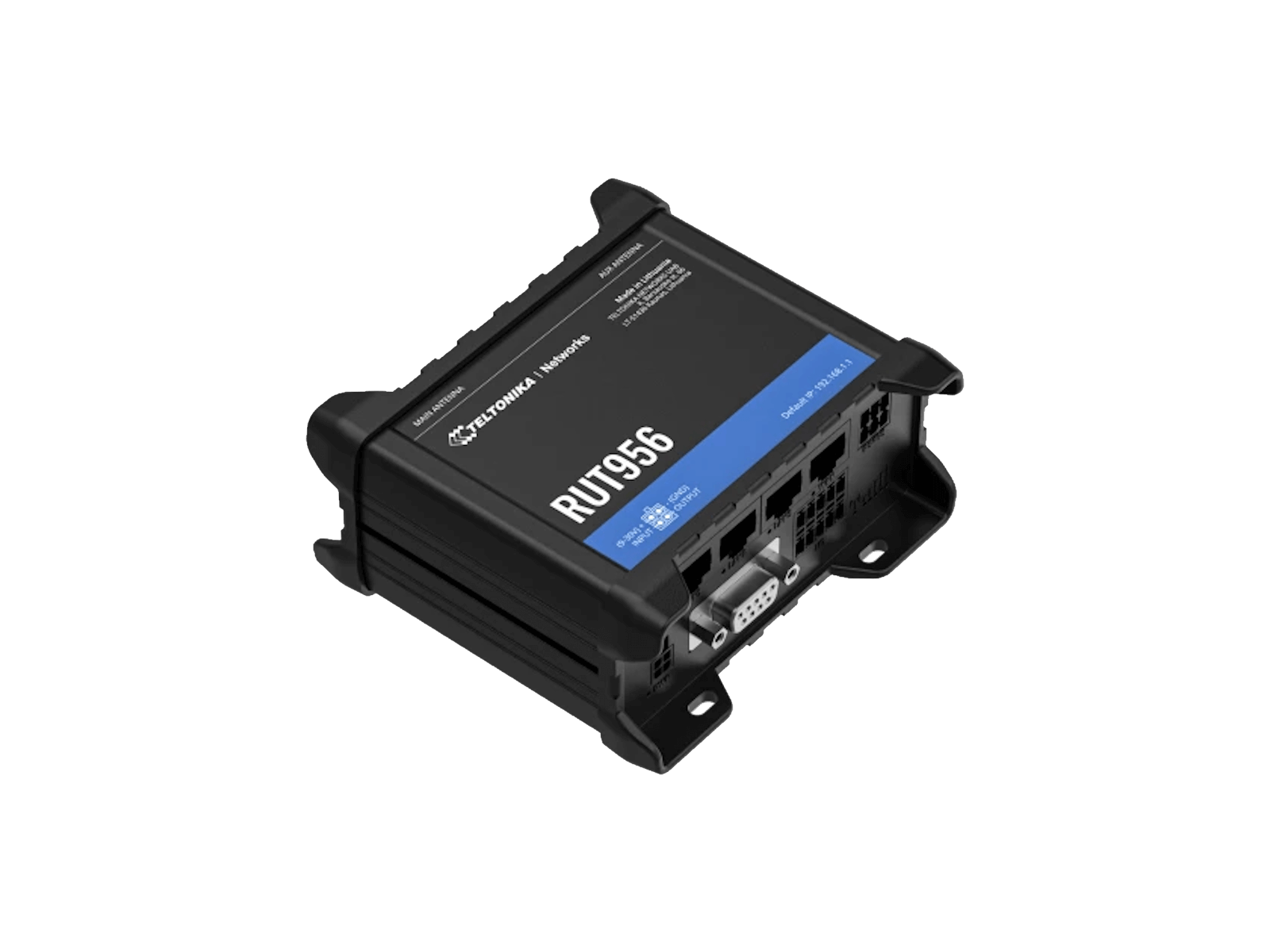

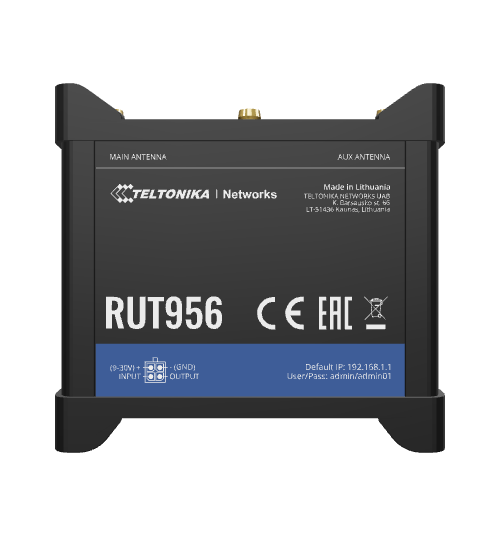

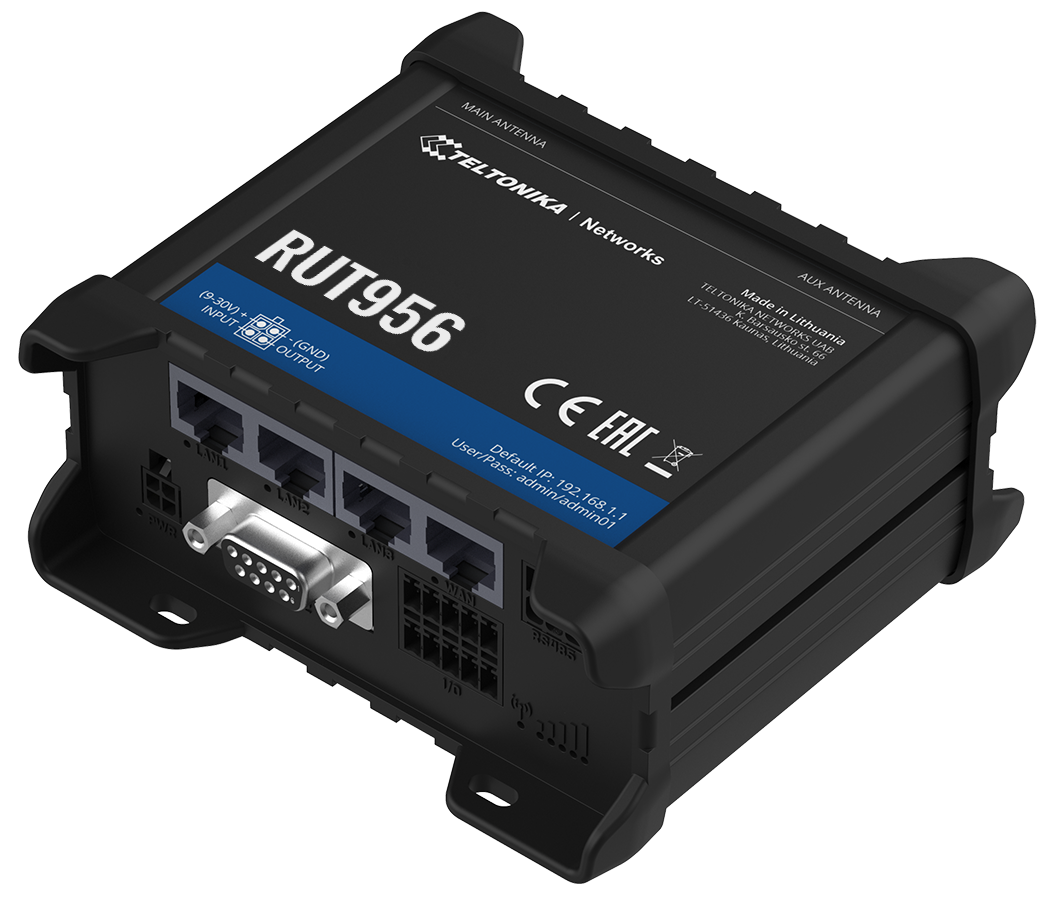

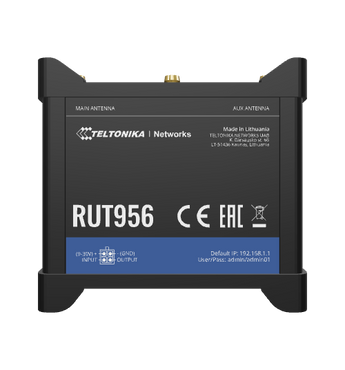

Teltonika RUT956 Industrial 4G LTE Dual-SIM M2M Router with RS232/RS485 & GNSS
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust Industrial Connectivity with Legacy System Integration
The Teltonika RUT956 is a high-performance industrial 4G LTE router designed for mission-critical applications. It provides a powerful combination of cellular, Wi-Fi, and wired connectivity, ensuring reliable internet access in demanding environments. This router is engineered to deliver seamless connection continuity, featuring dual SIM failover. If the primary connection is lost, it automatically switches to a backup SIM, providing essential redundancy for your operations.
Advanced Communication and Control
What sets the RUT956 apart is its extensive range of interfaces designed for versatile M2M and IoT applications. It comes equipped with RS232 and RS485 serial ports, enabling you to connect and manage a wide variety of industrial and legacy equipment. Additionally, its multiple digital and analog inputs/outputs, combined with the advanced RutOS software, allow for sophisticated equipment control, automation, and event notifications. The integrated GNSS (GPS) capabilities provide precise location services and time synchronization, making it ideal for fleet management and asset tracking.
Designed for Industry, Ready for Anything
The RUT956 is built to last, with a rugged design suitable for a wide range of operating temperatures and conditions. Its compact size allows for easy integration into existing setups. Packed with advanced software features like Modbus, SNMP, MQTT, and multiple VPN services, this router offers secure and reliable communication for industrial control systems. The RUT956 is also fully compatible with the Teltonika Remote Management System (RMS), allowing you to conveniently monitor and manage your entire fleet of routers from a single platform.
Technical Specifications
| CATEGORY | SPECIFICATION |
| Mobile |
Mobile Module: 4G (LTE) Cat 4 up to 150 Mbps, 3G up to 42 Mbps, 2G up to 236.8 kbps SIM Switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail Status: Signal strength (RSSI), SINR, RSRP, RSRQ, Bytes sent/received, connected band, IMSI, ICCID Band Management: Band lock, Used band status display |
| Wireless |
Wireless Mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA) WiFi Security: WPA2-Enterprise, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes SSID: SSID stealth mode and access control based on MAC address WiFi Users: Up to 100 simultaneous connections |
| Ethernet |
WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX LAN: 3 x LAN ports, 10/100 Mbps, IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Interfaces |
Ethernet: 4 x RJ45 ports, 10/100 Mbps I/O: 2 x Inputs and 2 x Outputs on 10-pin industrial socket; 1 x Digital Input and 1 x Digital Output on 4-pin power connector Serial: 1 x DB9 socket for RS232, 1 x 6-pin socket for RS485 USB: 1 x USB A port for external devices Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
| Power |
Connector: 4-pin industrial DC power socket Input Voltage Range: 9 – 30 VDC, reverse polarity protection PoE (Passive): Passive PoE over spare pairs (Mode B), 9-30 VDC (not compatible with IEEE 802.3af/at) Power Consumption: < 7 W Max |
| Physical & Environmental |
Housing: Aluminium housing with plastic panels Dimensions (W x H x D): 110 x 50 x 100 mm Weight: 287 g Operating Temperature: -40 °C to 75 °C Operating Humidity: 10% to 90% non-condensing |
| Software & Network |
Operating System: RutOS (OpenWrt based Linux OS) Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, PPP, DHCP, Telnet Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP Industrial Protocols: Modbus TCP slave/master, MQTT Gateway, NTRIP Client |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
