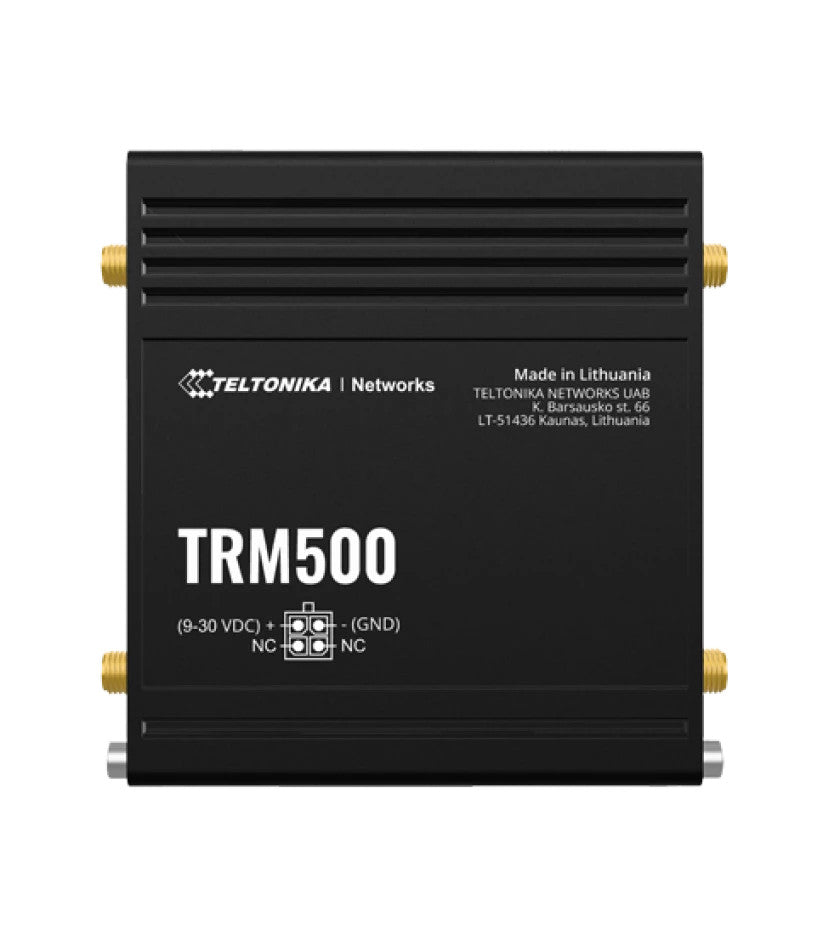

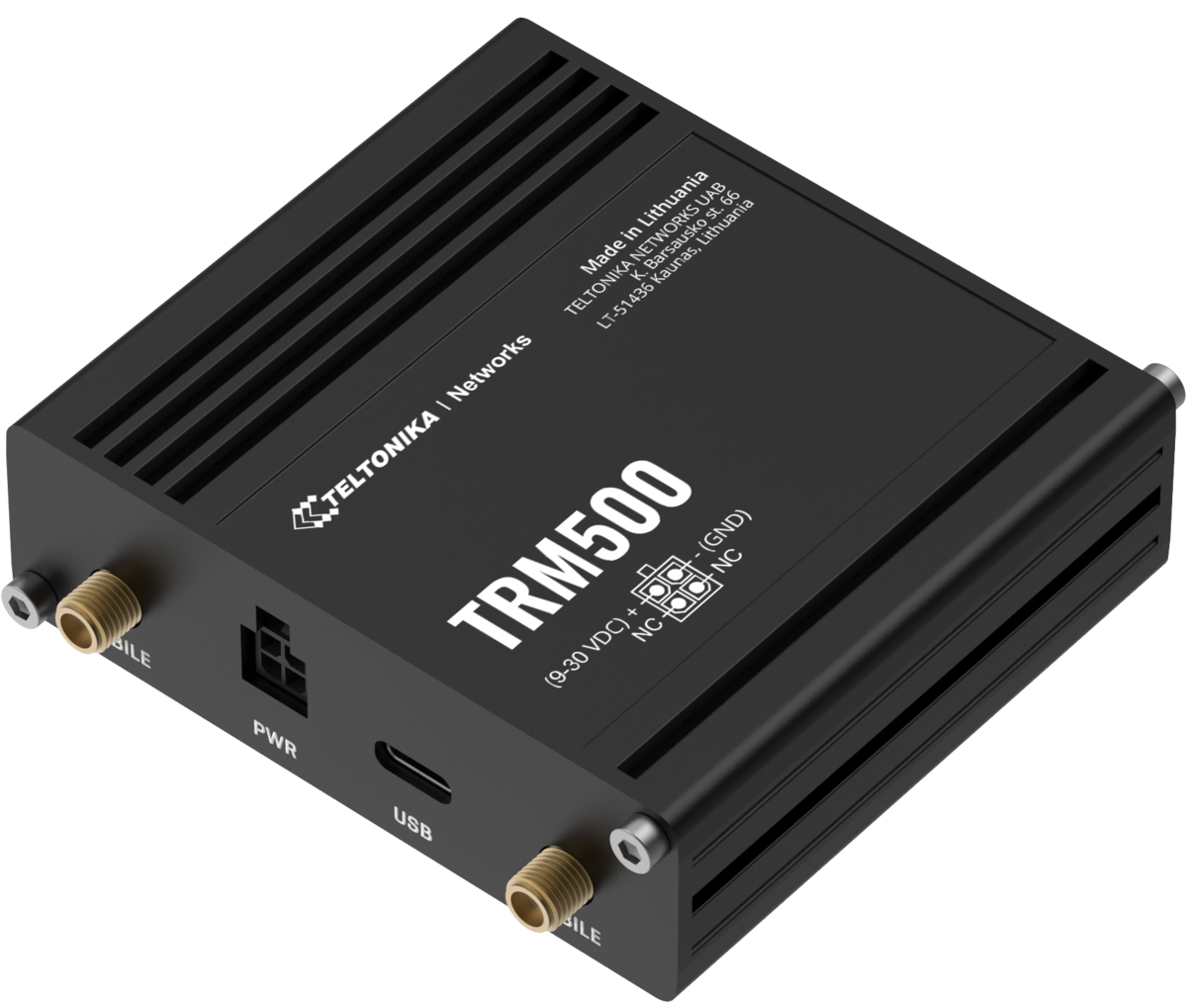

Teltonika TRM500 Industrial 5G Modem, USB-C
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Next-Generation Industrial IoT with Ultra-Fast 5G Connectivity
Experience a new era of industrial connectivity with the Teltonika TRM500, a compact and robust 5G modem designed for the most demanding applications. This device delivers ultra-high cellular speeds up to 3.4 Gbps, ensuring your operations benefit from lightning-fast data transfer and single-digit latency. Its industrial-grade design is built to withstand extreme conditions, making it the ultimate solution for remote management, IoT deployments, and ensuring seamless communication in harsh environments. The TRM500 provides reliable, high-speed connectivity and is fully backward compatible with 4G (LTE Cat 19) and 3G networks, guaranteeing a stable connection even where 5G coverage is intermittent.
Engineered for Seamless Integration and Reliability
The Teltonika TRM500 is engineered for versatility and easy integration. It features a modern USB Type-C interface that uniquely handles both high-speed data transfer and power delivery, simplifying cabling and installation. For applications requiring a dedicated power source, a 4-pin industrial DC socket is also included, supporting a wide voltage range of 9-30 VDC. Housed in a durable anodized aluminum casing, the TRM500 is built to last. Its compact and lightweight design, combined with DIN rail and surface mounting options, allows for flexible deployment in a variety of industrial settings. Four SMA antenna connectors ensure enhanced cellular coverage and signal strength.
Key Features:
- 5G Connectivity: Achieves ultra-high cellular speeds of up to 3.4 Gbps for rapid data transmission.
- Future-Proof: Maintains connection with backward compatibility for 4G (LTE Cat 19) and 3G networks.
- USB Type-C Interface: Provides simultaneous network data transfer and device powering for simplified setups.
- Industrial-Grade Durability: Housed in a rugged anodized aluminum casing with an IP30 rating, designed for harsh environments.
- Wide Operating Temperature: Reliably operates in extreme temperatures ranging from -40°C to 75°C.
- Flexible Powering: Can be powered via USB-C (5V @ 3A) or a 4-pin industrial DC socket (9-30 VDC).
- Compact & Versatile Mounting: Small footprint and lightweight design with DIN rail, wall, and flat surface mounting options.
| Mobile | |
| Mobile Module | 5G Sub-6GHz SA/NSA, 4G (LTE-FDD/LTE-TDD), 3G (WCDMA) |
| 5G Speeds | NSA: 3.4Gbps (DL) / 550Mbps (UL) SA: 2.4Gbps (DL) / 900Mbps (UL) |
| 4G (LTE Cat 19) Speeds | 1.6Gbps (DL) / 200Mbps (UL) |
| 3G Speeds | 42 Mbps (DL) / 5.76 Mbps (UL) |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Antennas | 4 x SMA for Mobile |
| Power | |
| Connector | 1 x 4-pin industrial DC power socket, 1 x USB Type-C |
| Input Voltage Range | 4-pin: 9 - 30 VDC USB Type-C: 5 VDC (host must provide 5V @ 3A) |
| Power Consumption | Idle: < 5 W, Max: < 12 W |
| Physical Interfaces | |
| USB | 1 x USB Type-C (Virtual network interface for power and data) |
| Status LEDs | 1 x Power LED, 1 x 5G LED, 1 x Network LED |
| Reset | Reboot/User default reset/Factory reset button |
| Physical Specification | |
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 83 x 25 x 85.4 mm |
| Weight | 94.5 g |
| Mounting Options | DIN rail, wall mount, flat surface (requires additional kit) |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
