Teltonika

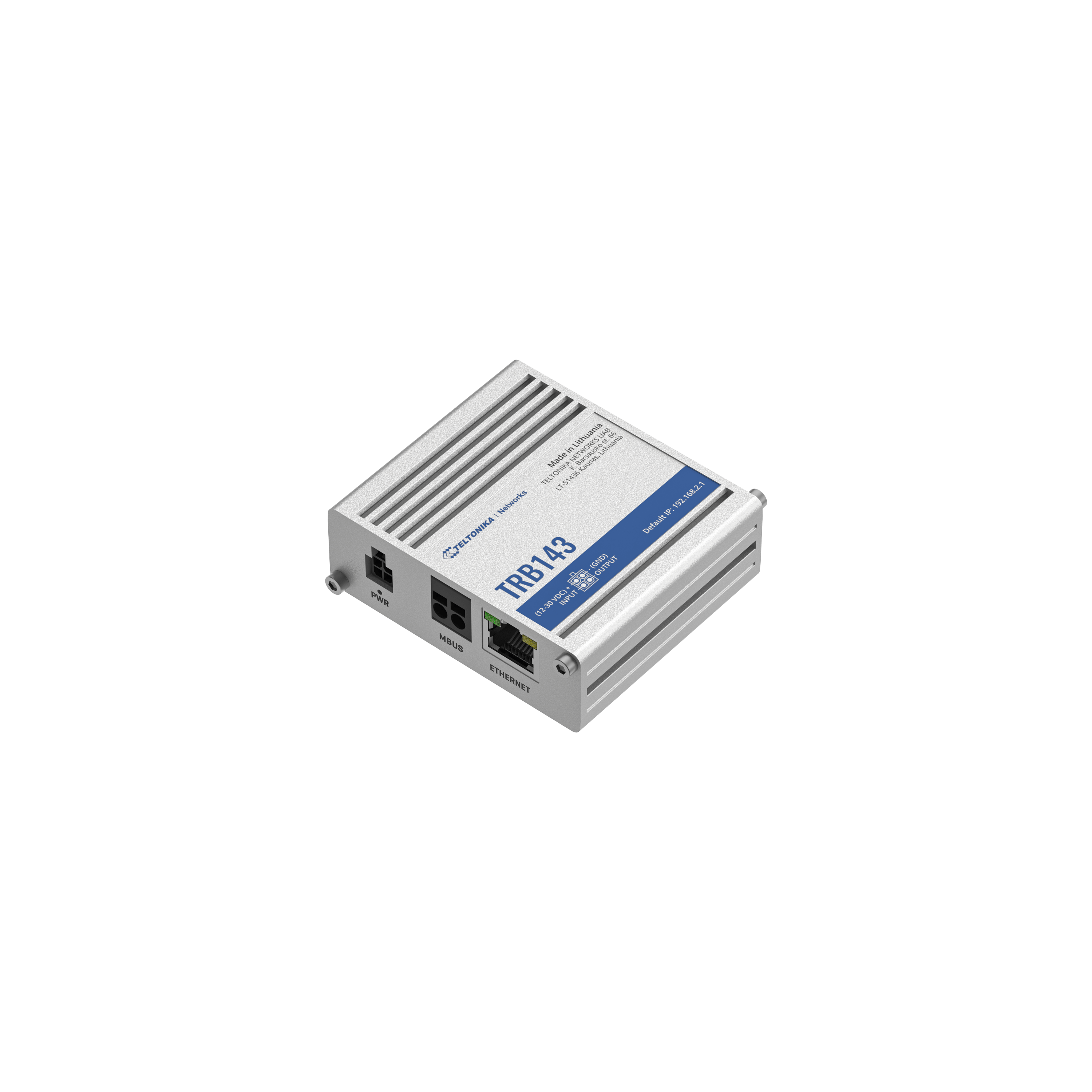

Teltonika TRB143 Industrial 4G LTE M-Bus IoT Gateway
Pickup available at NexGen Computing
Usually ready in 24 hours
Streamline Utility Monitoring with a Rugged, High-Speed IoT Gateway
The Teltonika TRB143 is an industrial-grade cellular gateway engineered specifically for advanced telemetry and utility monitoring applications. It combines a dedicated M-Bus interface with reliable 4G LTE Cat 4 connectivity, a Gigabit Ethernet port, and digital I/Os, providing a comprehensive solution for remotely collecting data from utility meters. Its rugged aluminum housing and wide operating temperature range ensure dependable performance in even the most demanding industrial environments.
Key Features:
- Integrated M-Bus Interface: Directly connect and power M-Bus slave devices, supporting up to 250 meters for large-scale data acquisition.
- High-Speed 4G LTE Connectivity: Features a 4G LTE Cat 4 module for data transfer speeds up to 150 Mbps, with 3G and 2G fallback for consistent network access.
- Industrial-Grade Durability: Housed in a compact and robust aluminum casing with an IP30 rating, designed to operate in temperatures from -40 °C to 75 °C.
- Advanced Connectivity: Equipped with a Gigabit Ethernet port, digital Inputs/Outputs, and a Micro-USB port for versatile integration possibilities.
- Remote Management: Fully compatible with the Teltonika Remote Management System (RMS), allowing for easy remote monitoring, configuration, and firmware updates.
- Robust Security: Features advanced security options including a pre-configured firewall, OpenVPN, IPsec, and attack prevention to safeguard your critical data.
Comprehensive Specifications
| Feature | Specification |
|---|---|
| Mobile | |
| Mobile Module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Antenna Connector | 1 x SMA for LTE |
| M-Bus Interface | |
| Protocol Support | Supports up to 250 slave devices, can power up to 6 slave devices |
| Ethernet | |
| LAN | 1 x LAN port, 10/100/1000 Mbps, supports auto MDI/MDIX |
| System & Hardware | |
| CPU | ARM Cortex-A7, 1.3 GHz |
| RAM | 256 MB |
| Flash Storage | 512 MB |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 12 – 30 VDC |
| PoE (Passive) | Passive PoE over spare pairs, Mode B, 12-30 VDC (not compatible with IEEE 802.3af/at/bt) |
| Power Consumption | Idle: 3 W, Max: 6 W |
| Physical Interfaces | |
| Inputs/Outputs | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Physical Specification | |
| Casing Material | Aluminum housing |
| Dimensions (W x H x D) | 74.5 x 25 x 73 mm |
| Weight | 145 g |
| Mounting Options | DIN rail, flat surface placement |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
