Teltonika

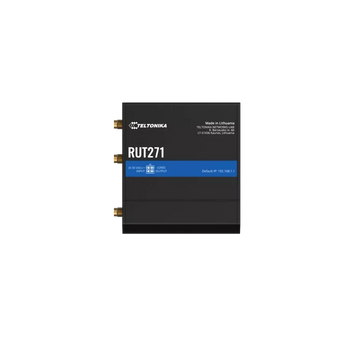

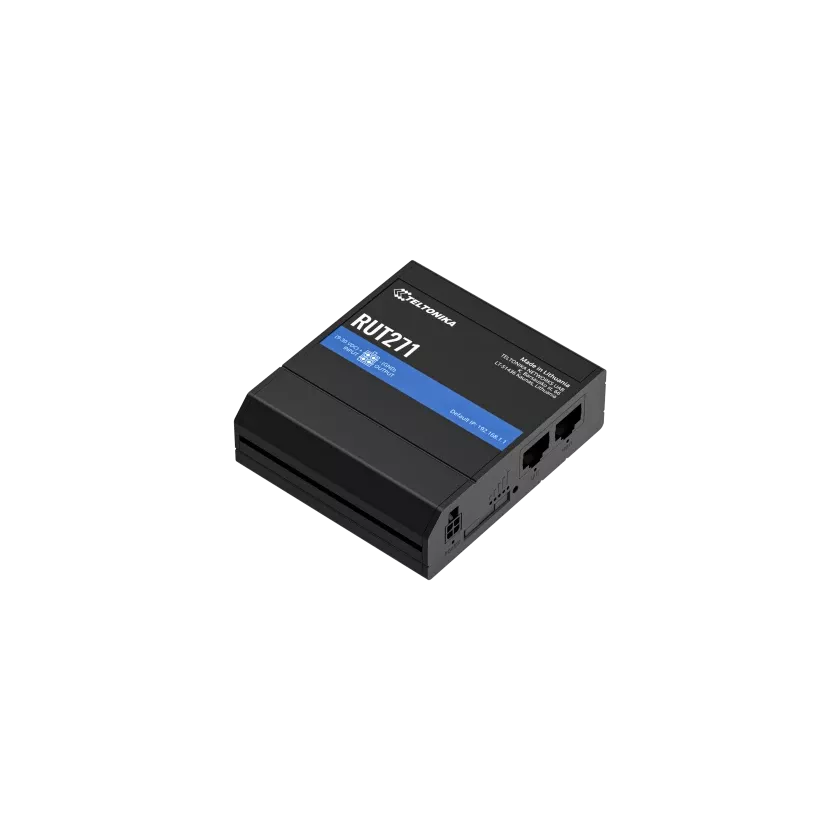

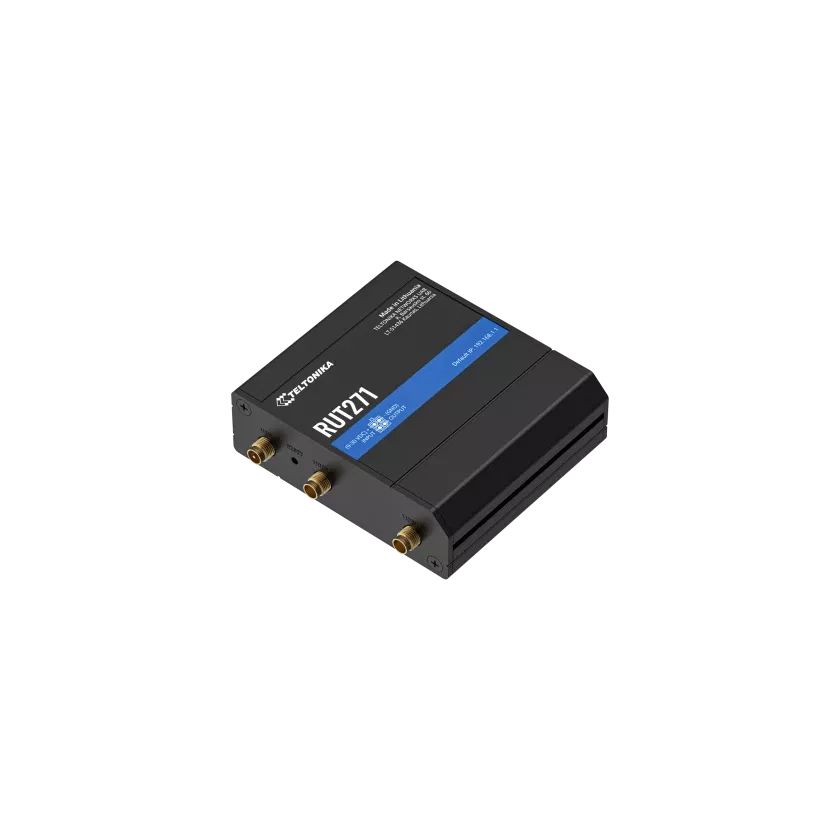

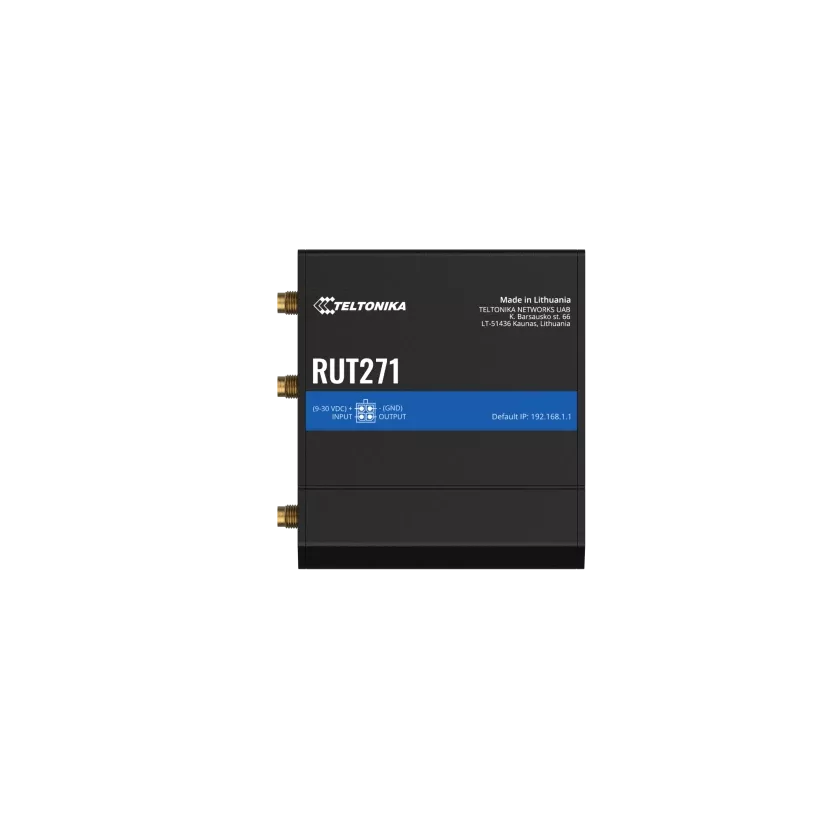

Teltonika RUT271 Industrial 5G RedCap Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Future-Proof Your IoT with 5G RedCap Connectivity
Step into the future of industrial connectivity with the Teltonika RUT271, a compact and powerful 5G RedCap router. Designed to bridge the gap between 4G LTE and high-speed 5G, RedCap (Reduced Capability) technology delivers the low latency and efficiency of 5G at a fraction of the cost and power consumption. This makes it the perfect solution for a wide range of IoT and M2M applications, from industrial automation and remote monitoring to building management and POS systems. The RUT271 is also backward-compatible with 4G (LTE CAT4), ensuring reliable connectivity even in areas without 5G coverage.
Robust and Reliable for Industrial Environments
Engineered for resilience, the RUT271 is housed in a durable aluminum casing with an IP30 ingress protection rating. It is built to withstand harsh conditions, operating flawlessly in a wide temperature range of -40°C to 75°C. Its compact design allows for easy integration into space-constrained environments. For uninterrupted connectivity, the router features WAN failover, automatically switching to a backup connection if the primary link fails. Powering the device is flexible, with options for a standard 9-30 VDC input or passive PoE through the LAN1 port.
Advanced Features and Remote Management
The RUT271 runs on RutOS, a powerful OpenWrt-based operating system that offers a wealth of advanced features. Secure your data with a comprehensive suite of VPN services, including OpenVPN, WireGuard, and IPsec. The device also includes a stateful firewall, DoS protection, and VLAN support to safeguard your network. For seamless integration with IoT platforms, it supports protocols like Modbus TCP/RTU, MQTT, and DNP3. The RUT271 is fully compatible with the Teltonika Remote Management System (RMS), allowing you to conveniently monitor and manage your entire fleet of routers from a single platform.
Comprehensive Specifications Table
| Mobile | |
| Mobile module | 5G Sub-6GHz SA / 4G (LTE) Cat 4 |
| 5G NR Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79 |
| 4G LTE-FDD Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71 |
| 4G LTE-TDD Bands | B34, B38, B39, B40, B41, B42, B43, B48 |
| Data Rates | 5G SA: 223 Mbps (DL), 123 Mbps (UL) 4G LTE: 195 Mbps (DL), 105 Mbps (UL) |
| SIM | 1 x Mini SIM slot (2FF) |
| Wireless | |
| Wireless mode | 802.11b/g/n (Wi-Fi 4) |
| Wi-Fi security | WPA2/WPA3 |
| Simultaneous connections | Up to 50 |
| Ethernet | |

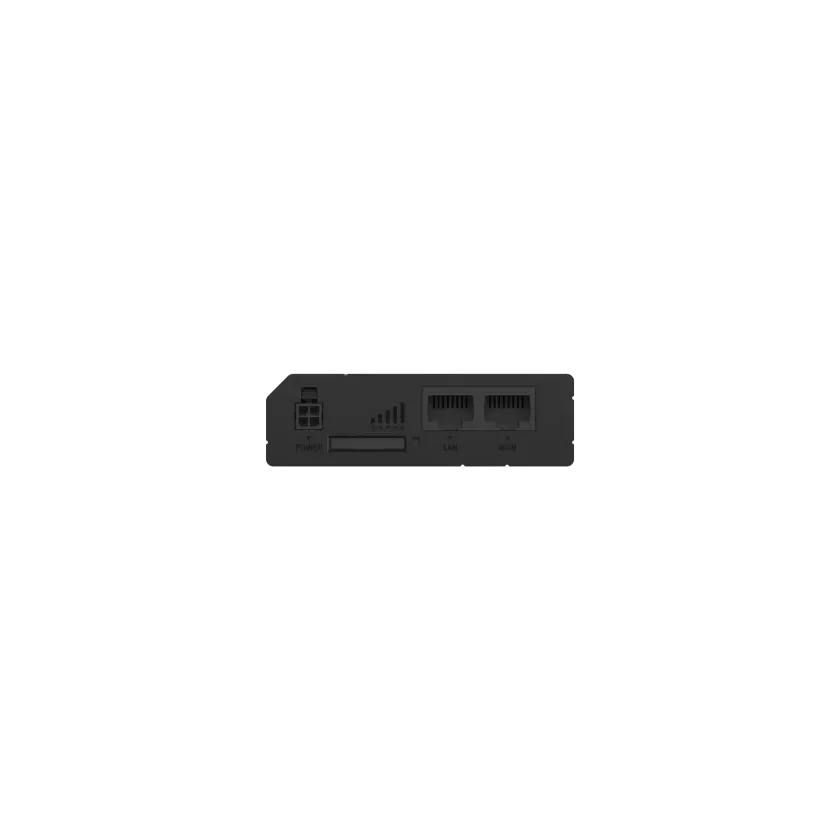

| Ports | 2 x 10/100 Mbps RJ45 ports (configurable as 1 x WAN, 1 x LAN) |
| Hardware & Interfaces | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 16 MB, NOR Flash |
| Inputs/Outputs | 1 x Digital Input, 1 x Digital Open Collector Output on 4-pin power connector |

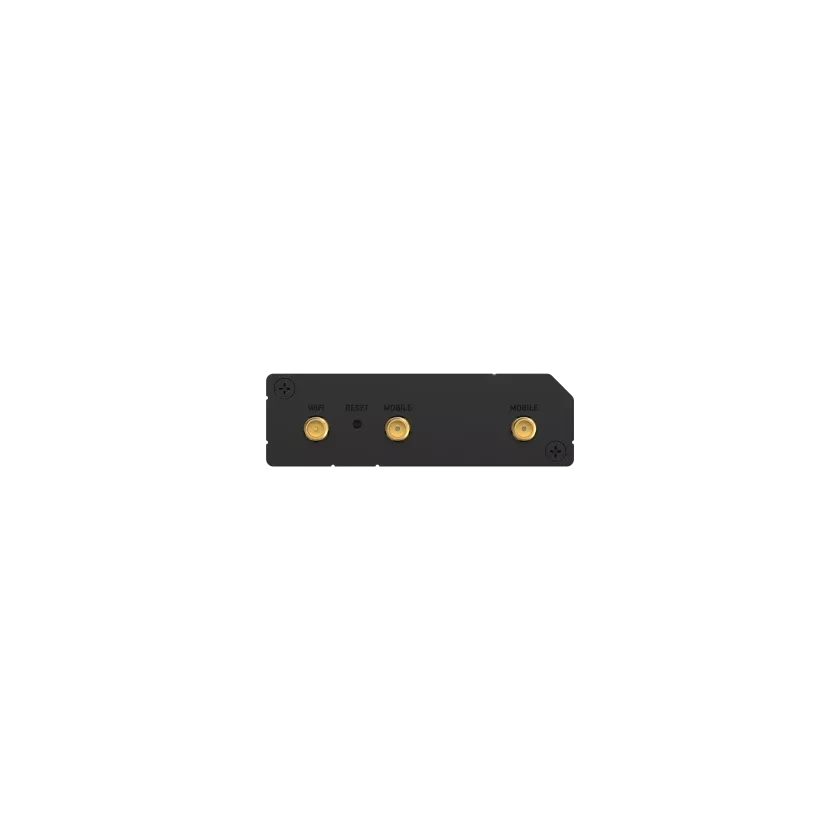

| Antenna connectors | 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| Power | |
| Power connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection |
| PoE (passive) | Passive PoE over spare pairs, Mode B, 9-30 VDC (not compatible with IEEE 802.3af/at/bt) |
| Power consumption | Idle: <1.5 W, Max: <3 W |
| Physical | |
| Casing material | Aluminium housing and plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 130 g |
| Operating temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
