Teltonika

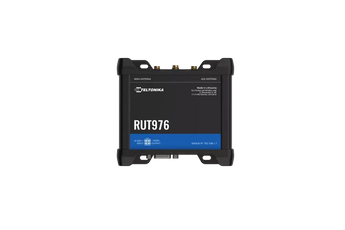

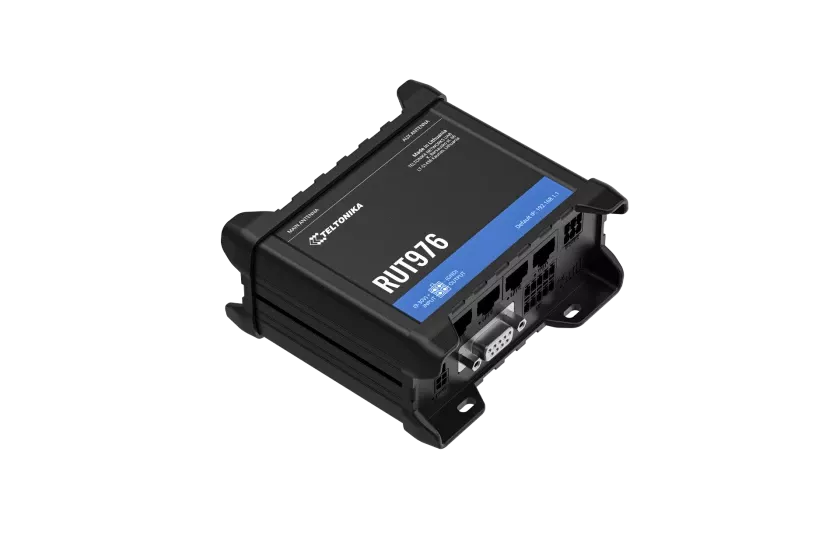

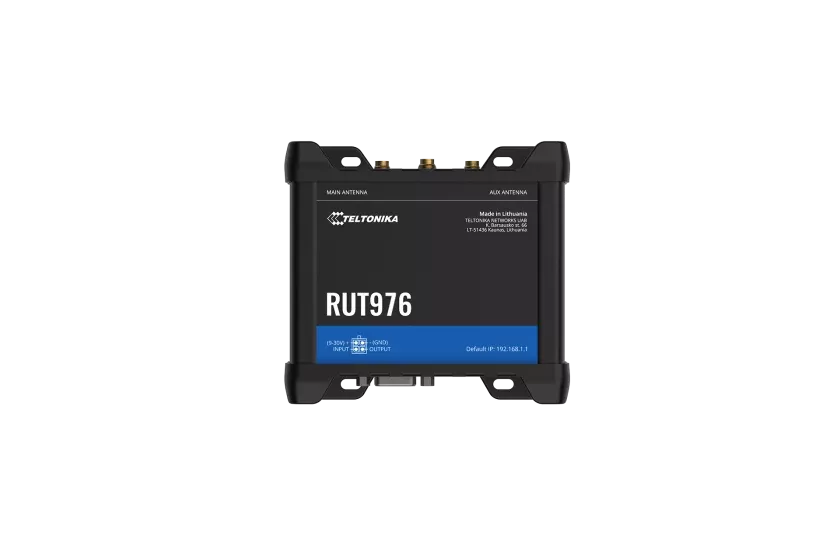

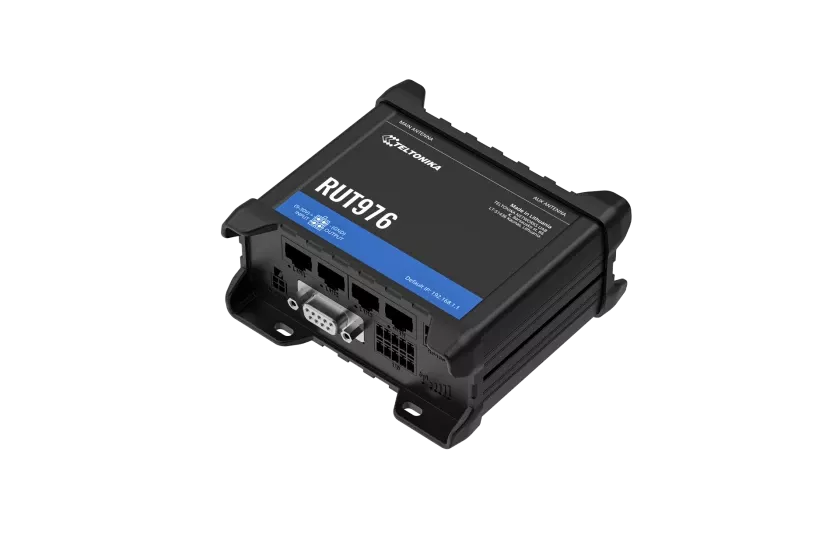

Teltonika RUT976 Industrial 5G RedCap Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Future-Proof Your IoT with Efficient 5G RedCap Connectivity
Introducing the Teltonika RUT976, an industrial 5G router engineered to deliver the perfect balance of next-generation speed and operational efficiency for IoT and M2M applications. This router leverages 5G RedCap (Reduced Capability) technology to provide the low latency and high capacity of 5G, specifically tailored for industrial deployments where reliable, cost-effective connectivity is paramount. It is the ideal solution for upgrading from 4G without committing to the expense of full-scale 5G, ensuring a future-proof investment. For maximum reliability, the device is backward compatible with 4G (LTE CAT4), guaranteeing a stable connection even in areas with limited 5G coverage.
Uninterrupted Performance & Industrial Resilience
Engineered for mission-critical scenarios, the RUT976 features dual SIM slots with automatic failover, providing redundant connectivity to eliminate downtime. Its robust aluminum housing, IP30 ingress protection rating, and wide operating temperature range (-40 °C to 75 °C) ensure dependable performance in the most demanding industrial environments. The router is equipped with a comprehensive suite of interfaces, including four 10/100 Mbps Ethernet ports, Wi-Fi 4 supporting up to 100 simultaneous connections, and legacy serial ports (RS232/RS485), making it a versatile hub for connecting a wide array of industrial equipment.
Advanced Control with RutOS and RMS
Powered by Teltonika's RutOS, the RUT976 offers advanced networking features and robust security. This powerful operating system provides extensive VPN services, VLAN separation, and precise mobile quota control. When paired with the Teltonika Remote Management System (RMS), you gain complete control over your entire fleet of routers. RMS allows for remote monitoring, configuration, and maintenance, significantly reducing operational complexity and cost for large-scale deployments.
Key Features:
- 5G RedCap Technology: Low latency and efficient 5G performance ideal for IoT.
- 4G LTE Cat 4 Fallback: Ensures continuous connectivity.
- Dual SIM with Auto-Failover: Provides critical connection redundancy.

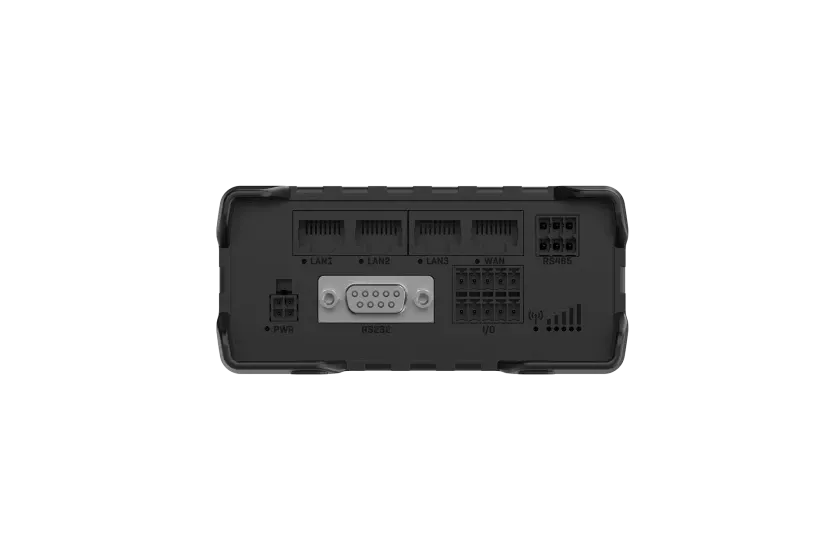

- Multiple Interfaces: Includes 4x Ethernet, RS232, RS485, USB, and multiple I/Os for versatile integration.
- Industrial-Grade Durability: Housed in a rugged aluminum case with a wide operating temperature range.
- GNSS Positioning: Integrated GPS, GLONASS, BeiDou, Galileo, and QZSS for location tracking.
- Teltonika RMS Compatible: For advanced remote monitoring and management.
Technical Specifications
| Mobile | |
|---|---|
| Mobile Module | 5G Sub-6Ghz SA: 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4: 195 Mbps DL, 105 Mbps UL |
| 3GPP Release | Release 17 RedCap |
| SIM | 2 x SIM slots (Mini SIM - 2FF), auto-switch |
| Wireless | |
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi Security | WPA2-Enterprise, WPA3, OWE, AES-CCMP |
| Wi-Fi Users | Up to 100 simultaneous connections |
| Ethernet | |
| LAN | 3 x LAN ports, 10/100 Mbps |
| WAN | 1 x WAN port (can be configured as LAN), 10/100 Mbps |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 16 MB, NOR Flash |
| Physical Interfaces | |
| I/O | 2 x Inputs and 2 x Outputs on 10-pin socket, 1 x Digital Input and 1 x Digital Output on 4-pin power connector |
| Power | 1 x 4-pin industrial DC power socket |

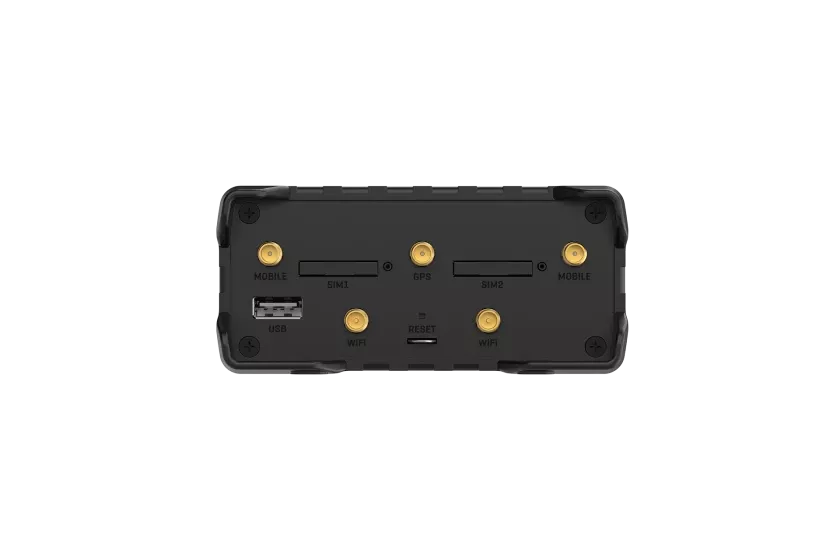

| Antennas | 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port |
| Serial | 1 x DB9 for RS232, 1 x 6-pin socket for RS485 |
| Power | |
| Input Voltage Range | 9 - 30 VDC, reverse polarity protection |
| PoE (Passive) | Passive PoE over spare pairs, Mode B, 9-30 VDC (not compatible with IEEE 802.3af/at) |
| Power Consumption | < 3 W Idle, < 7 W Max |
| Physical & Environmental | |
| Casing Material | Aluminum housing with plastic panels |
| Ingress Protection | IP30 |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
