Teltonika

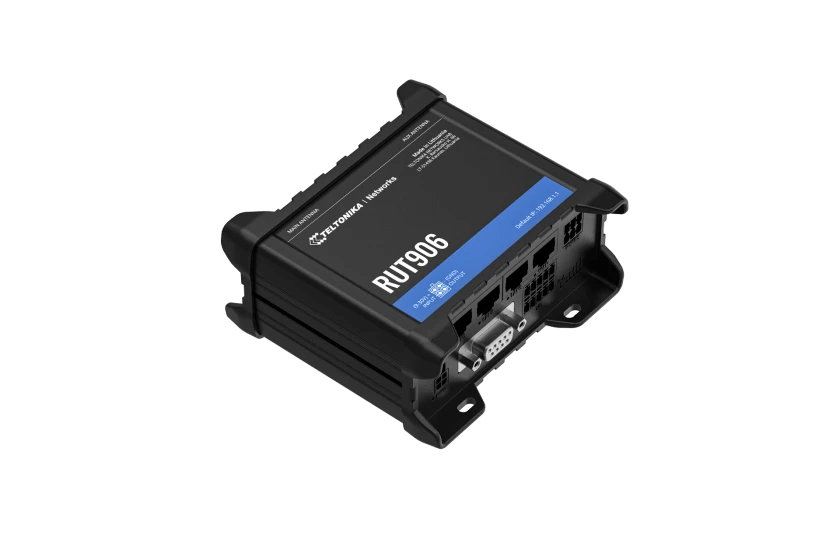

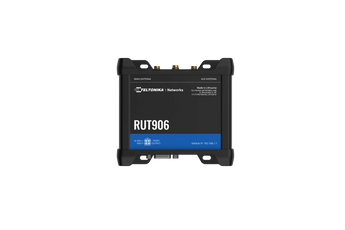

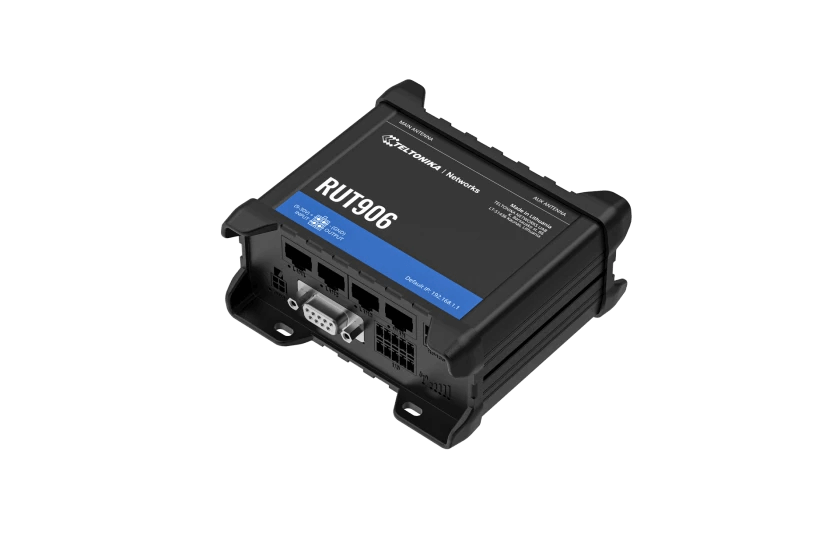

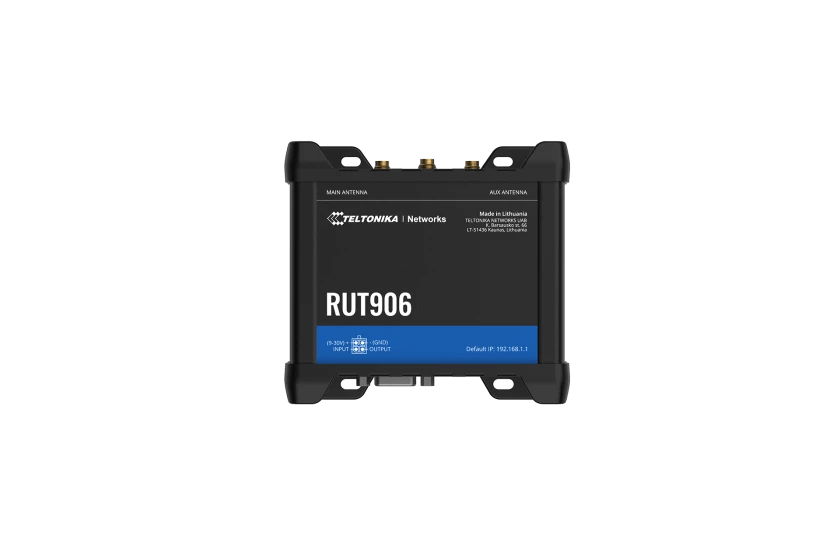

Teltonika RUT906 Industrial 4G LTE Router with Wi-Fi, RS232/RS485 & GNSS
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, High-Performance Connectivity for Industrial IoT
The Teltonika RUT906 is a cellular 4G router engineered for demanding industrial and M2M/IoT applications. It provides reliable, high-performance connectivity with 4G LTE Cat 4, 3G, and 2G fallback, ensuring your operations stay online. Equipped with dual SIM slots featuring automatic failover, backup WAN, and other switching scenarios, the RUT906 guarantees uninterrupted data transmission for critical applications. Its robust set of interfaces, including RS232, RS485, multiple I/Os, and Ethernet, makes it a versatile solution for integrating both modern and legacy industrial equipment.
Advanced Features for Unfailing Operation
Beyond its primary connectivity functions, the RUT906 is packed with features designed for professional use. It comes equipped with GNSS (GPS, GLONASS, BeiDou, Galileo, and QZSS) for precise location services, NTRIP, and time synchronization. The router supports a wide range of industrial protocols such as MQTT, BACnet, and OPC UA, facilitating seamless communication in complex automation systems. With Wi-Fi, four Ethernet ports, and compatibility with Teltonika's Remote Management System (RMS), the RUT906 offers a comprehensive and secure solution for remote monitoring and management.
Built for Harsh Environments
Designed to withstand extreme conditions, the RUT906 features a durable aluminum housing and can operate in temperatures ranging from -40°C to 75°C. Its combination of rugged construction, versatile interfaces, and advanced software features makes the Teltonika RUT906 the ideal choice for deploying reliable and secure connectivity in manufacturing, automation, smart city, and other challenging industrial environments.
Technical Specifications
| Mobile | |
| Mobile Module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| SIM Switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Frequency Bands | 4G (LTE-FDD): B1, B3, B7, B8, B20, B28; 4G (LTE-TDD): B38, B40; 3G: B1, B8; 2G: B3, B8 |
| Wireless | |
| Wireless Mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Wi-Fi Security | WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| Data Rate | Up to 300 Mbps with 2x2 MIMO |
| Ethernet | |

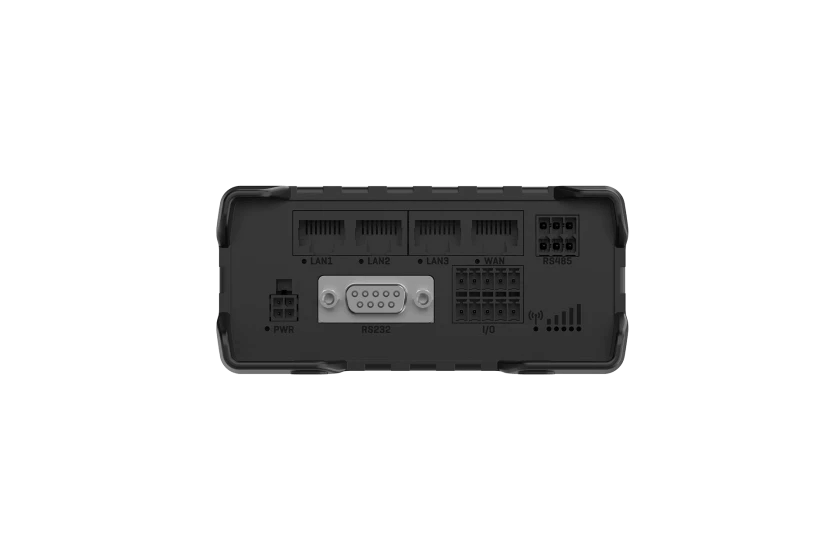

| WAN | 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Interfaces | |
| I/O | 1 x Digital Input, 1 x Digital Output on 4-pin power connector; 2 x Inputs, 2 x Outputs on 10-pin industrial socket |
| Serial | 1 x RS232 (DB9 socket), 1 x RS485 (6-pin industrial socket) |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |

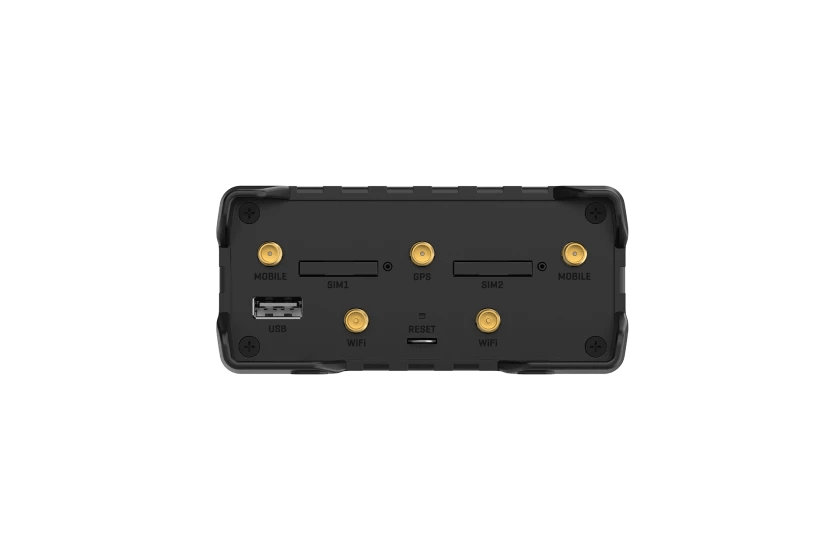

| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| System & Power | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Flash Storage | 16 MB, SPI Flash |
| Powering | 4-pin DC socket, 9-30 VDC. Passive PoE over spare pairs (LAN1 port, not 802.3af/at compliant) |
| Physical & Environmental | |
| Casing | Aluminum housing |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
