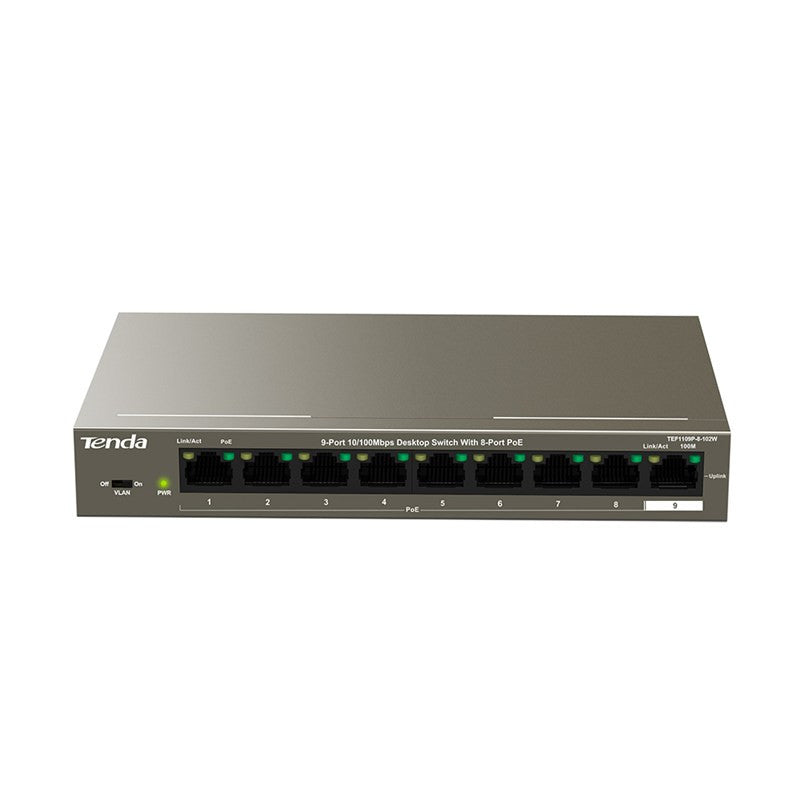

Tenda 9-Port Fast Ethernet Desktop Switch with 8-Port PoE | TEF1109P-8-102W
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Protect Your Network with the Tenda 9-Port PoE+ Desktop Switch
Engineered for small to medium-sized businesses, hotels, and offices, the Tenda TEF1109P-8-102W is a robust and reliable unmanaged switch designed to power your essential devices. It's the perfect solution for small-scale HD surveillance systems and wireless networks, offering a powerful combination of performance, protection, and ease of use. This desktop switch provides power and data to devices like IP cameras, VoIP phones, and wireless access points through standard CAT5e cables, simplifying your installation and reducing cabling costs.
Key Features:
- High-Power PoE+ Output: With a total power budget of 92W, this switch delivers up to 30W on any of its 8 PoE ports, fully compliant with IEEE 802.3af/at standards.
- Extended 250m Transmission: Featuring innovative extension technology, the switch can transmit data and power up to 250 meters, providing a cost-effective alternative to fiber optics or network extenders for long-distance deployments.
- Enhanced Network Security: A simple hardware DIP switch allows you to enable VLAN mode. In this mode, ports 1-8 are isolated from each other but can all communicate with the uplink port, effectively isolating broadcast storms and improving LAN security.
- Superior Lightning Protection: The switch is equipped with 6KV lightning protection for the uplink port, safeguarding your investment against power surges and thunderstorms for enhanced stability.
- Intelligent Power Management: An integrated smart power management chip accurately calculates power output. If the total power draw exceeds the 92W rating, it automatically powers down lower-priority ports to prevent overload and extend the switch's service life.
- Plug & Play Simplicity: As an unmanaged switch with a fanless, desktop design, it requires no configuration. Simply plug it in, connect your devices, and enjoy seamless network connectivity.
Technical Specifications
| Hardware Specifications | |
| Interfaces | 8 x 10/100Base-T ports (Data/Power) 1 x 10/100Base-T port (Data) |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Lightning Protection | 6KV for uplink port |
| LED Indicators | 9 x Link/Act Indicators, 1 x Power Indicator |
| Fan Quantity | Fanless |
| Dimensions (W x D x H) | 177.5mm x 104mm x 26mm |
| Performance | |
| Switching Capacity | 1.6 Gbps (Some sources state 1.8 Gbps) |
| Packet Forwarding Rate | 1.34 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 1Mb |
| Forwarding Mode | Store-and-Forward |
| PoE Specifications | |
| PoE Ports | Ports 1-8 |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 92W |
| Max Power Per Port | 30W |
| PoE Pin Assignment | 1/2(+), 3/6(-) and 4/5(+), 7/8(-) |
| Software & Management | |
| Management | Unmanaged, Plug and Play |
| Port Features | Hardware DIP switch for Standard and VLAN modes |
| Power & Environment | |
| Input Voltage | AC: 100-240V ~ 50/60Hz |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
