Acconet

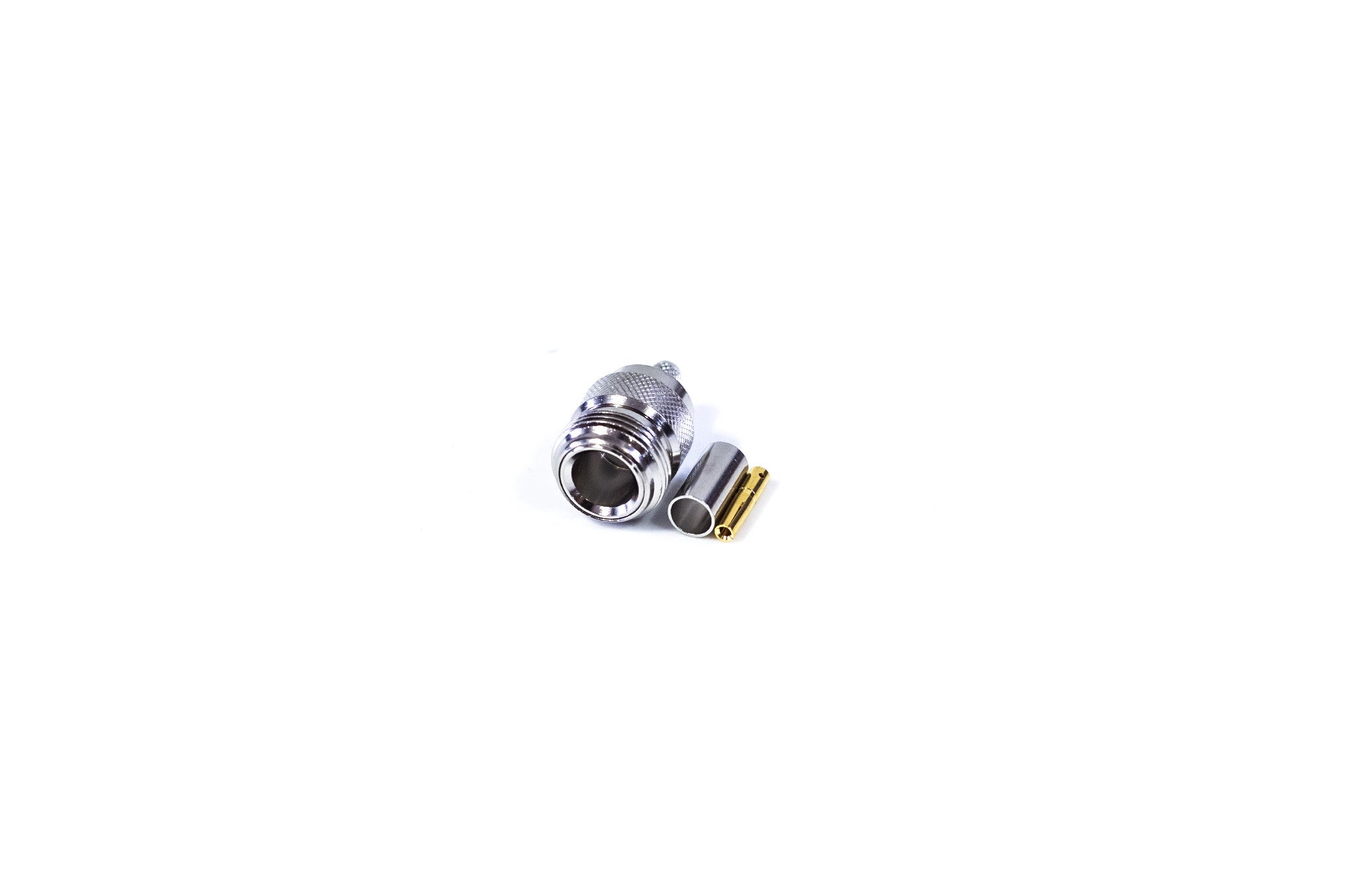

TNC (Female) Reverse Polarity Connector for ARF195
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance RF Connectivity Solution
Achieve superior, reliable connections in your wireless systems with the Acconet Reverse Polarity TNC (RP-TNC) Female Connector, expertly engineered for ARF195 and other 195-series low-loss coaxial cables. This premium connector is the ideal choice for assembling custom-length, high-performance cables for a wide range of RF applications, including Wi-Fi, WLAN, GPS, and other wireless communication systems. Its threaded coupling mechanism ensures a secure, vibration-resistant mating, providing stable and consistent performance where it matters most.
Secure and Durable by Design
The reverse polarity design is a key safety feature, preventing accidental connections with standard TNC connectors, which is crucial for protecting sensitive RF equipment. Constructed from high-quality materials, including a nickel-plated brass body and a gold-plated center contact, this connector offers exceptional durability and resistance to corrosion for long-term reliability. The robust crimp-style termination provides a strong, professional-grade cable attachment, ensuring optimal signal integrity for your critical applications.
Technical Specifications
The following specifications represent typical performance values for this class of connector. For precise component data, please refer to the official Acconet datasheet if available.
| Electrical Specifications | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | DC - 6 GHz |
| Voltage Rating | 500 Volts Peak |
| Dielectric Withstanding Voltage | 1500 Volts RMS |
| Insulation Resistance | ≥ 5000 MΩ |
| Mechanical & Material Specifications | |
| Connector Type | TNC Female, Reverse Polarity (RP) |
| Cable Compatibility | ARF195, LMR-195, and equivalent low-loss cables |
| Termination Method | Crimp |
| Body Material | Nickel-Plated Brass |
| Center Contact | Gold-Plated Brass |
| Insulator | PTFE |
| Coupling Mechanism | Threaded (7/16-28 UNEF) |
| Environmental Specifications | |
| Operating Temperature Range | -40°C to +85°C |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
