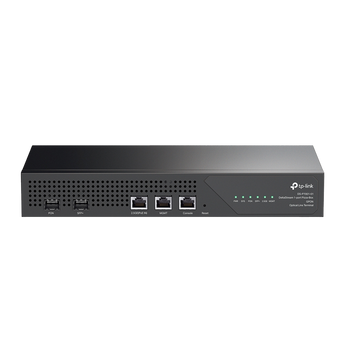

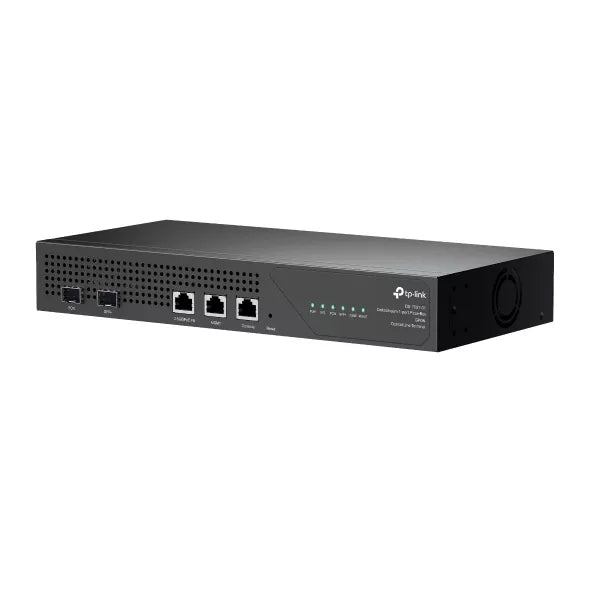

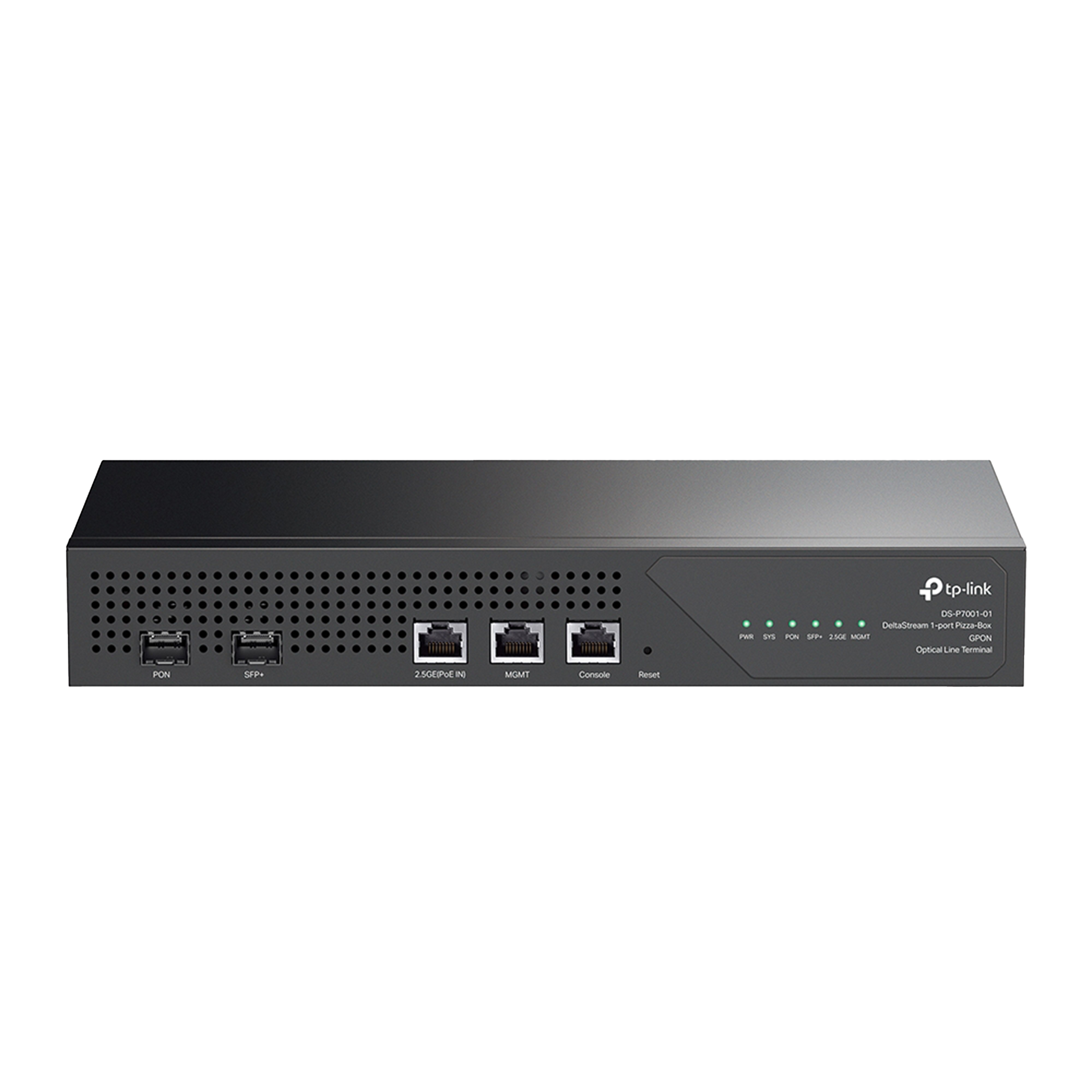

TP-Link DS-P7001-01 1-Port GPON OLT with 10G SFP+ and 2.5G Uplink
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, Compact GPON Solution
The TP-Link DS-P7001-01 is a high-performance, compact 1-port Gigabit Passive Optical Network (GPON) Optical Line Terminal (OLT), engineered for small-scale fiber deployments. It's an ideal and cost-effective solution for small businesses, home offices, and small-scale network environments seeking reliable, high-bandwidth connectivity. This device supports up to 128 Optical Network Terminals (ONTs) with a 1:128 splitting ratio, offering extensive scalability for growing networks over a transmission distance of up to 60km.
Flexible and High-Speed Connectivity
The DS-P7001-01 is equipped with a 10G SFP+ port and a 2.5G RJ45 uplink port, providing flexible and high-bandwidth backhaul options to integrate seamlessly into various network infrastructures. For deployment versatility, it supports dual power supplies: a standard DC input and 802.3at Power-over-Ethernet (PoE), allowing for flexible installation in diverse scenarios.
Advanced Management and L2/L3 Features
Centralized network management is simplified through the DeltaStream PON Management System (DPMS), as well as support for SNMP, CLI, and a user-friendly Web UI. The OLT also features a range of advanced Layer 2 and Layer 3 functionalities, including static routing and IGMP Snooping, to meet the demands of various applications and ensure enhanced network stability.
| Hardware Features | |
| Interface |
1× GPON Port 1× 10 Gbps SFP+ Uplink Port 1× 10/100/1000/2500 Mbps RJ45 Uplink Port 1× RJ45 Console Port 1× RJ45 MGMT Port |
| Button | Reset Button |
| Power Supply | Dual Power Supplies: DC and 802.3at PoE DC Adapter: 12.0V/2.5A 802.3at PoE: 42.5~57V/0.6A |
| Power Consumption | Max. 17W |
| Dimensions (W x D x H) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| GPON Features | |
| Splitting Ratio | 1:128 |
| Transmission Distance | Up to 60 km |
| Data Rates | Downstream: 2.5 Gbps Upstream: 1.25 Gbps |
| Wavelength | TX: 1490 nm RX: 1310 nm |
| Software Features | |
| Management | DeltaStream PON Management System (DPMS) SNMP CLI Web UI |
| Advanced L2/L2+ Functions | Static Routing, IGMP Snooping, and more |
| Security | ACL (IPv4/IPv6), DHCP Filter, Port Security |
| ONU Authentication | ONU Auto Authentication |
| General | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Package Contents | Device, Power adapter, 19" rack mounts |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
