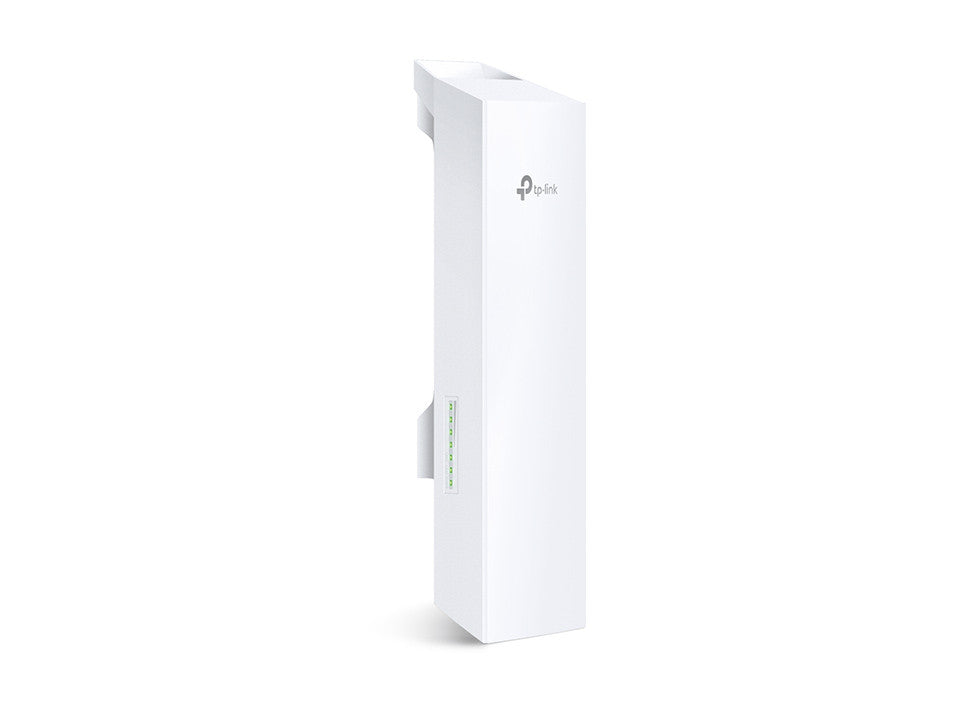

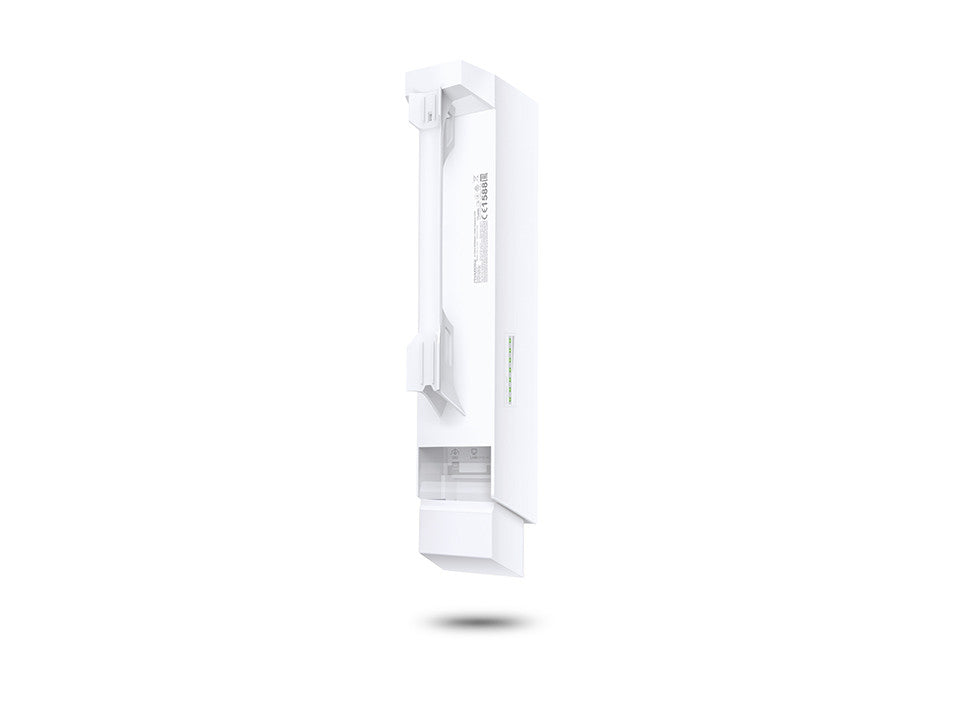

TP-Link Pharos CPE220 2.4GHz 300Mbps Outdoor CPE
Pickup available at NexGen Computing
Usually ready in 24 hours
Long-Range Wireless Connectivity for Demanding Outdoor Environments
The TP-Link CPE220 is a cost-effective and high-performance solution designed for outdoor wireless networking applications. It excels at providing stable, long-distance data transmission, making it the perfect choice for point-to-point (PtP) and point-to-multipoint (PtMP) networks, as well as general outdoor Wi-Fi coverage. With enterprise-grade hardware and a user-friendly design, the CPE220 is ideal for both business and home users seeking reliable, extended-range connectivity.
Enterprise-Level Hardware for Maximum Performance
Engineered with Qualcomm Atheros enterprise-level chipsets, a high-gain 12dBi antenna, and premium materials, the CPE220 is built for superior performance. The specially designed hardware enables system-level optimizations that support wireless transmission over distances greater than 13km. Its advanced antenna system features a built-in 2x2 dual-polarized directional MIMO antenna with a dedicated metal reflector, which ensures higher gain and minimizes noise interference for a more stable connection.
Built to Withstand the Elements
The CPE220 is specifically designed for outdoor use and can operate flawlessly in nearly any climate. It features a weatherproof enclosure made from outdoor ASA stabilized plastic and has an IPX5 waterproof certification. This durable device can withstand operating temperatures ranging from -40℃ to +70℃ (-40℉ to +158℉) and is equipped with 15KV ESD and 6KV lightning protection for robust, long-term reliability.
Advanced Software and Network Management
TP-Link's exclusive Pharos MAXtream TDMA technology enhances performance by improving throughput, capacity, and latency, which is critical as network scale increases. The CPE220 also includes Pharos Control, a centralized management software that allows users to easily discover, monitor, and manage all network devices from a single PC. The device supports multiple operation modes, including AP, Client, Bridge, Repeater, and AP Router, providing flexible solutions for various networking scenarios.
Simplified Installation with Passive PoE
The included Passive PoE Adapter supports Power over Ethernet deployment up to 60 meters (200 feet), allowing for flexible installation in locations where power outlets are not readily available. This feature also enables the device to be reset remotely, adding another layer of convenience for network maintenance.
Detailed Technical Specifications
| Hardware Features | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |

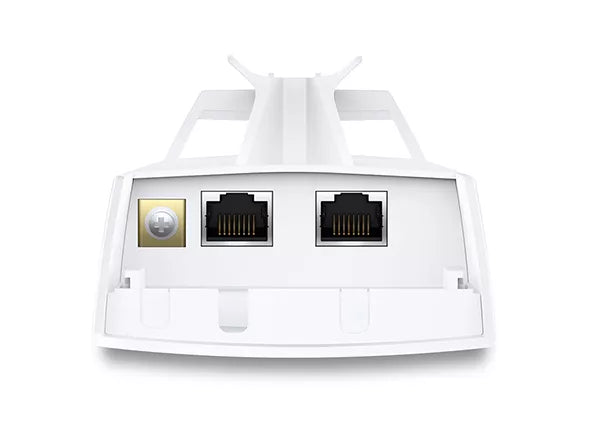

| Interface | 1 x 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in) 1 x 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 x Grounding Terminal 1 x Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Dimensions (W x D x H) | 11×3.1×2.1 inch (276×79×60 mm) |
| Antenna Type | Built-in 12dBi 2x2 Dual-polarized Directional MIMO Antenna |
| Beamwidth | 60° (H-Plane) / 30° (E-Plane) |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
| Wireless Features | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic) |
| Frequency | 2.4~2.483GHz |
| Transmission Power | Max. 30dBm/1000mw (Adjustable power) |
| Software Features | |
| Wireless Configurations | Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable SSID Broadcast Enable/Disable |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption 64/128/152-bit WEP Encryption |
| Management | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management |
| System Tools | Signal Quality, Noise, and CCQ indicators Ping Watch Dog Web-based Speed Test |
| POE Adapter Features | |
| Dimensions (W x D x H) | 110×57×33.5mm |
| Input/Output | Input: 100-240VAC, 50/60Hz Output: 24VDC, 1.0A Max |
| Button | Remote Reset Button |
| Others | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, 8, 7, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
