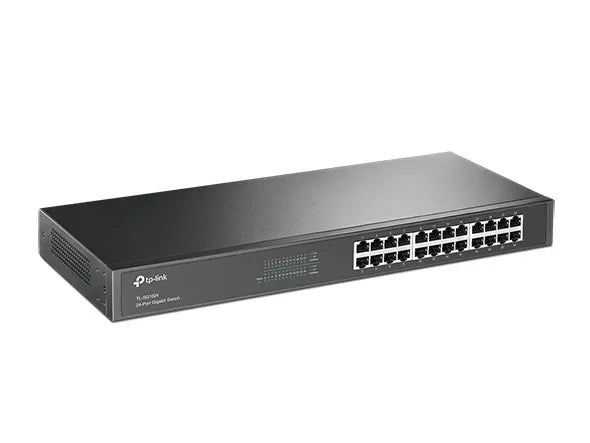

TP-Link TL-SG1024 24-Port Gigabit Ethernet Unmanaged Rackmount Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Upgrade Your Network with High-Speed Gigabit Performance
Experience a seamless and powerful network upgrade with the TP-Link 24-Port Gigabit Switch, the TL-SG1024. This high-performance, easy-to-use switch is designed to boost your network to 1000Mbps, providing a standard, low-cost solution for your home or office. With 24 gigabit ports, it dramatically expands your network's capacity, enabling instant transfers of large, bandwidth-intensive files. Whether you're in a creative production environment, a busy office, or a workgroup, you can move graphics, CGI, CAD, or multimedia files across the network almost instantly.
Effortless Plug-and-Play Installation
The auto features of this gigabit switch make installation hassle-free and require no configuration. All 24 ports support Auto-MDI/MDIX, which cleverly eliminates the need for crossover cables. Additionally, auto-negotiation on each port intelligently senses the link speed of a network device (10, 100, or 1000 Mbps) and adjusts for optimal performance and compatibility.
Eco-Friendly and Energy Efficient
The TL-SG1024 features the latest in innovative, energy-efficient technology that significantly expands your network capacity with much less power. It automatically adjusts power consumption based on the link status, helping to limit your network's carbon footprint. This switch is also compliant with the EU's RoHS, which prohibits the use of certain hazardous materials.
Robust Performance and Reliability
Housed in a standard 19-inch rack-mountable steel case, this switch is built for durability. It features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With a 10KB Jumbo frame, the performance of large file transfers is significantly improved. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion, ensuring the TL-SG1024 works reliably.
Comprehensive Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
| Max Power Consumption | 13.62W |
| Max Heat Dissipation | 46.44 BTU/h |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Performance | |
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | 24-Port Gigabit Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
