TP-Link

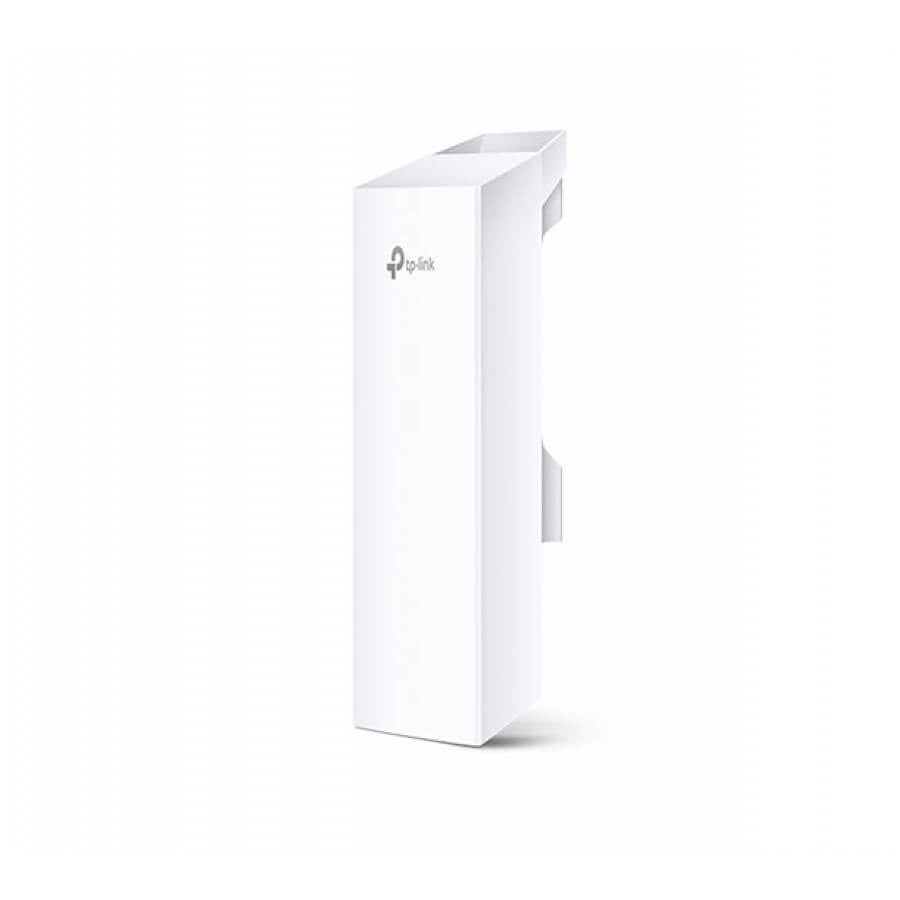

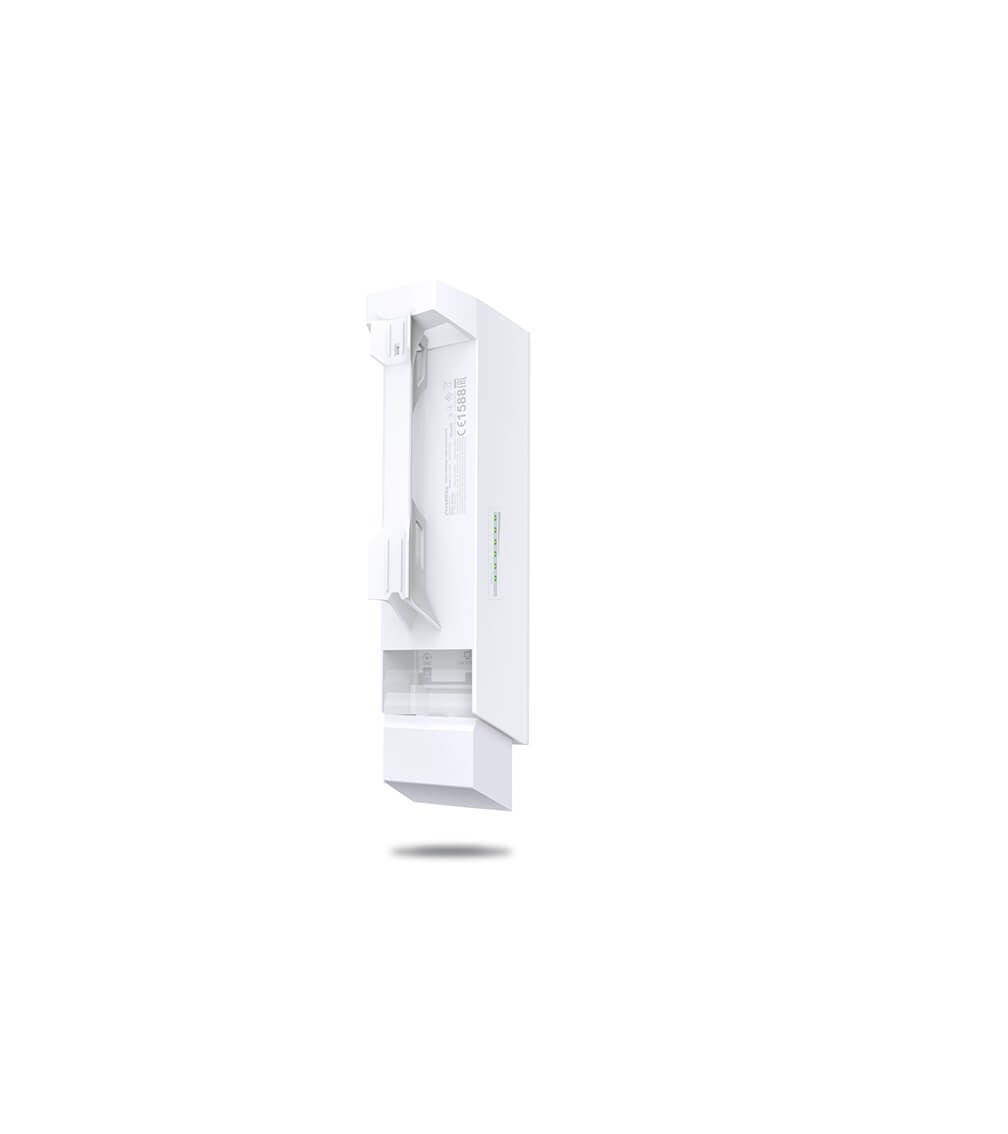

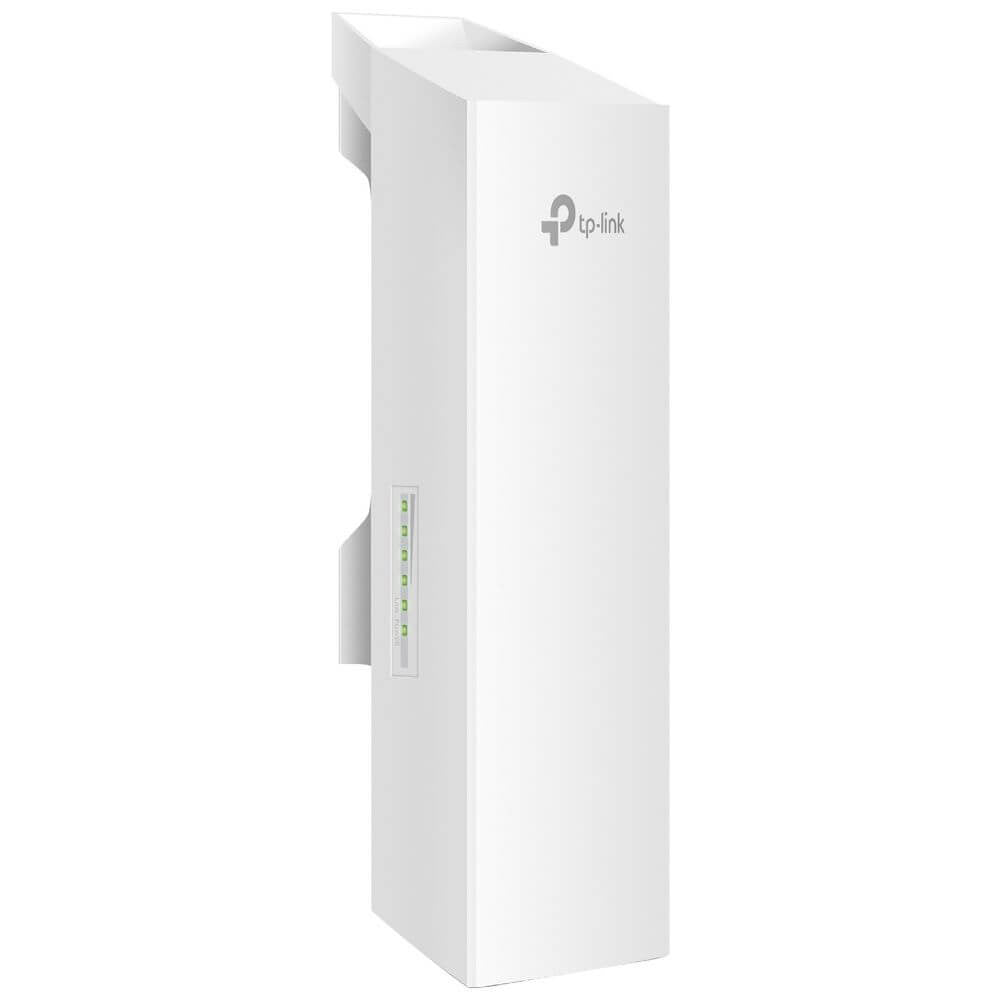

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE | CPE510
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, Long-Distance Outdoor Wireless Networking
TP-Link's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510, is a cost-effective and high-performance solution for outdoor wireless networking. It excels in long-distance wireless data transmission, making it ideal for point-to-point (PtP) and point-to-multipoint (PtMP) applications, as well as providing extensive outdoor Wi-Fi coverage. With its centralized management system and user-friendly design, the CPE510 is a perfect choice for both business and home users seeking reliable, long-range connectivity.
Enterprise-Level Hardware for Any Climate
Engineered with Qualcomm Atheros enterprise-level chipsets, high-gain antennas, and a specially designed weatherproof enclosure, the CPE510 is built for outdoor use. It can operate flawlessly in nearly any climate, withstanding temperatures from as low as -40℃ (-40℉) to as high as +70℃ (158℉). The advanced antenna system features a built-in 13dBi 2x2 dual-polarized directional MIMO antenna with a dedicated metal reflector to ensure higher gain and reduce noise interference.
Superior Performance Over 15km
The CPE510 is specifically designed for long-range applications, with system-level optimizations that enable wireless data transmission over distances greater than 15km. To overcome the wireless competition and collisions that occur as a network grows, it utilizes TP-LINK's Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology. This technology significantly improves throughput, capacity, and latency performance, ensuring a stable and high-performing network, especially in PTMP applications.
Centralized Management with Pharos Control
The device comes equipped with Pharos Control, a free centralized management software that allows users to easily manage all CPE510 units and other Pharos devices on their network from a single PC. Functions like device discovery, status monitoring, firmware upgrades, and network maintenance are all streamlined through this intuitive platform. The user-friendly, web-based management system, PharOS, also allows for more specific and advanced configurations.
Key Features at a Glance:
- Long-Range Transmission: Capable of wireless speeds up to 300Mbps over 15km+.
- High-Gain Antenna: Built-in 13dBi 2x2 dual-polarized directional MIMO antenna.
- Durable Outdoor Design: IPX5 waterproof certified enclosure and robust protection against ESD and lightning.
- Passive PoE Support: Includes a Passive PoE adapter that supports deployment up to 60 meters (200 feet) and allows for remote reset.
- Flexible Operation Modes: Supports AP / Client / AP Router / AP Client Router (WISP) modes.
- Advanced Software: TP-LINK Pharos MAXtream TDMA technology improves performance and latency.
| Technical Specifications | |
|---|---|
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 x 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in) 1 x Grounding Terminal 1 x Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Dimensions (W x D x H) | 224 x 79 x 60 mm |
| Antenna Type | Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic) |
| Frequency | 5.15~5.85GHz |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption 64/128/152-bit WEP Encryption |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 10/8/7, MAC OS, NetWare, UNIX or Linux. |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
