TP-Link
TP-Link DeltaStream DS-P7001-04 4-Port GPON OLT with 10GE SFP+ Uplink
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Capacity, Carrier-Class Fiber Access Solution

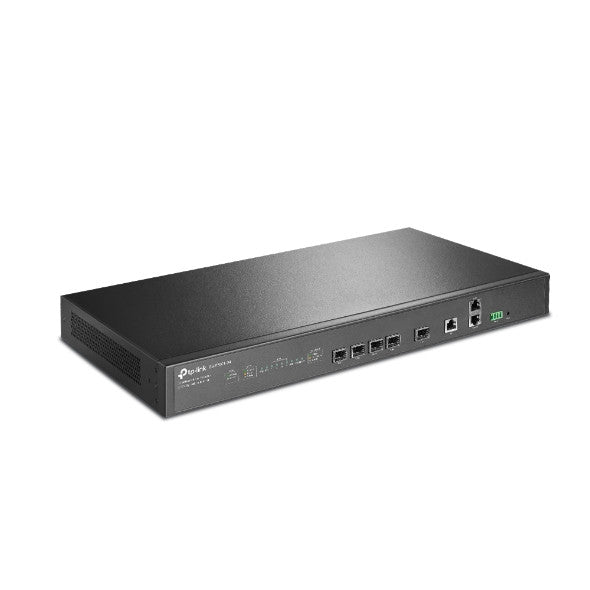

The TP-Link DeltaStream DS-P7001-04 is a high-performance 4-port GPON Optical Line Terminal (OLT) designed for flexible, scalable, and reliable fiber-to-the-home (FTTH) and enterprise deployments. Housed in a compact 1U pizza-box form factor, it provides a robust solution for internet service providers. With four GPON ports, it supports a high 1:128 splitting ratio, allowing a single device to serve up to 512 Optical Network Terminals (ONTs). This OLT is equipped with high-speed uplink ports, including one 10GE SFP+ port and one Gigabit RJ45 port, ensuring ample bandwidth for your network backbone.
Uninterrupted Service with Redundant Power
Engineered for carrier-class reliability, the DS-P7001-04 features dual redundant power supplies. It supports both AC and DC power inputs, providing a failsafe that guarantees continuous operation and protects your network from power-related disruptions, ensuring constant availability for your users.
Comprehensive Management and Advanced L2/L3 Functions
Simplify network administration with TP-Link's free DeltaStream PON Management System (DPMS). Centralized management is also accessible via SNMP, a command-line interface (CLI), and a user-friendly web UI, enabling efficient batch configuration, remote updates, and intelligent network monitoring. The DS-P7001-04 is packed with a full suite of L2 and advanced L3 features, including Static Routing, IGMP Snooping, 802.1x Authentication, and robust QoS, to meet diverse commercial service requirements.
Technical Specifications
| Hardware Features | |
|---|---|
| Interface |
• 4 × 2.5G GPON Ports (SFP Slots) • 1 × 10 Gbps SFP+ Uplink Port • 1 × 10/100/1000 Mbps RJ45 Uplink Port • 1 × RJ45 Console Port • 1 × RJ45 MGMT Port • 1 × Alarm Port (Reserved) |
| GPON Port Attributes | • Max. Splitting Ratio: 1:128 • Transmission Distance: 20km • Data Rate: Downstream: 2.5 Gbps, Upstream: 1.25 Gbps • Wavelength: Tx: 1490 nm, Rx: 1310 nm • Fiber Type: 9/125μm SMF (Single Mode Fiber) • Interface Type: SC/UPC |
| Power Supply | Dual Redundant Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| Max. Power Consumption | 58W |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Software Features | |
| Centralized Management | • DeltaStream PON Management System (DPMS) • SNMP • CLI • Web UI |
| Routing | Static Routing |
| Security | • ACL • 802.1x Authentication • ARP Inspection • IP Source Guard • Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption |
| DHCP | • DHCP Server • DHCP Relay |
| Multicast | • IGMP Snooping • MLD Snooping |
| QoS | • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP |
| ONU Management | • Standard OMCI Management Supported • ONU Auto Authentication |
| Environment & Package | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Package Contents | • OLT Device • Power Cord and Console Cable • Installation Guide • Mounting Brackets, Screws and Rubber Feet |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
