TP-Link
TP-Link DeltaStream DS-P7001-08 8-Port GPON OLT with Dual 10GE SFP+ Uplinks
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Density GPON for Scalable FTTH Networks

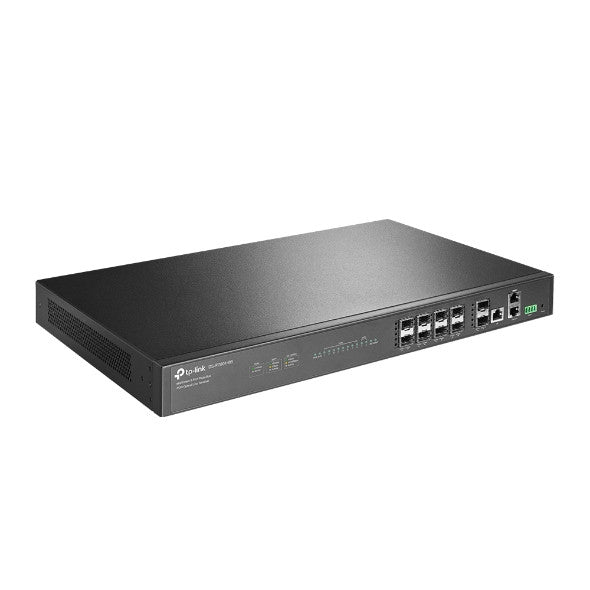

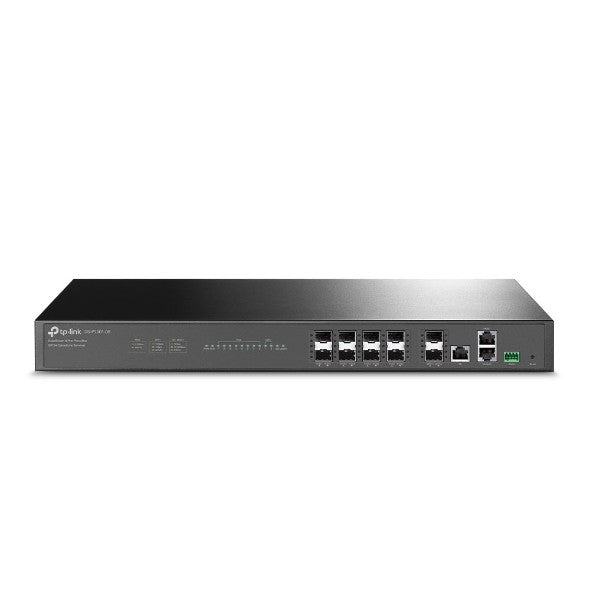

The TP-Link DeltaStream DS-P7001-08 is a high-performance 8-port GPON Optical Line Terminal (OLT) designed for flexible, scalable, and reliable Fiber-to-the-Home (FTTH) deployments. It supports a 1:128 splitting ratio for each port, allowing a single device to serve up to 1,024 Optical Network Terminals (ONTs). With high-speed uplink capabilities, including two 10GE SFP+ ports and a gigabit RJ45 port, it ensures a non-blocking, high-capacity connection to your core network.
Carrier-Class Reliability and Redundancy

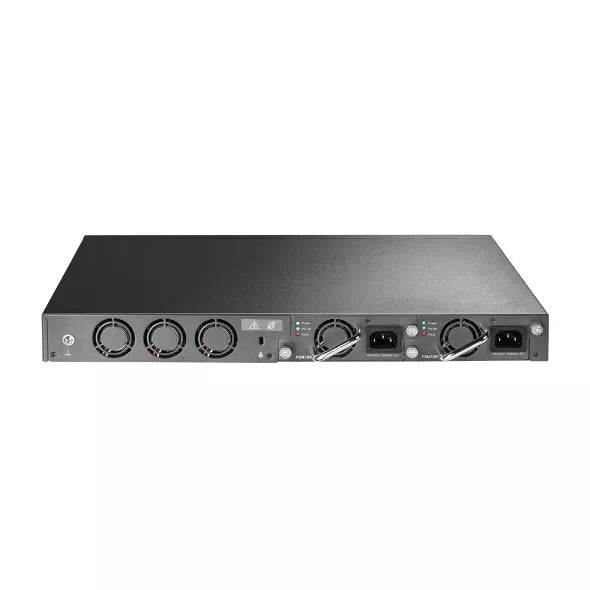

Engineered for constant operation, the DS-P7001-08 features dual hot-swappable power supplies. This carrier-class reliability is enhanced by its support for both AC and DC power inputs, providing flexible and redundant power options to ensure your network remains online. Its compact, 1U pizza-box design allows for easy and flexible rack-mounted deployment.
Advanced L2/L3 Features and Centralized Management
The DeltaStream OLT is equipped with a comprehensive set of L2 and advanced L3 functions to meet diverse commercial requirements. Features like Static Routing and IGMP Snooping enhance network efficiency and application performance. Management is streamlined through the DeltaStream PON Management System (DPMS), which allows for centralized configuration and maintenance of all devices. Additionally, it supports management via SNMP, CLI, and a user-friendly Web UI.
| Technical Specifications | |
|---|---|
| Hardware Features |
Interface: - 8 x 2.5G GPON Ports (SFP Slot) - 2 x 10 Gbps SFP+ Uplink Ports - 1 x 10/100/1000 Mbps RJ45 Uplink Port - 1 x RJ45 Console Port - 1 x RJ45 MGMT Port Power Supply: Dual hot-swappable power supplies - AC Input: 100V~240V, 50/60Hz - DC Input: -38.4V~-72V Max Power Consumption: 70W Dimensions (W x D x H): 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm) |
| GPON Port Attributes |
Max. Splitting Ratio: 1:128 Transmission Distance: 20 km Data Rate: Downstream: 2.5 Gbps, Upstream: 1.25 Gbps Wavelength: Tx: 1490 nm, Rx: 1310 nm Interface Type: SC/UPC Fiber Type: 9/125μm SMF (Single Mode Fiber) Tx Power: Class C+ |
| Software Features |
Security: ACL, 802.1x Authentication, ARP Inspection, IP Source Guard DHCP: DHCP Server, DHCP Relay Routing: Static Routing Multicast: IGMP Snooping, MLD Snooping QoS: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP ONU Management: Standard OMCI Management, Auto Authentication, Rouge ONU Detection and Isolation Centralized Management: DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
