TP-Link

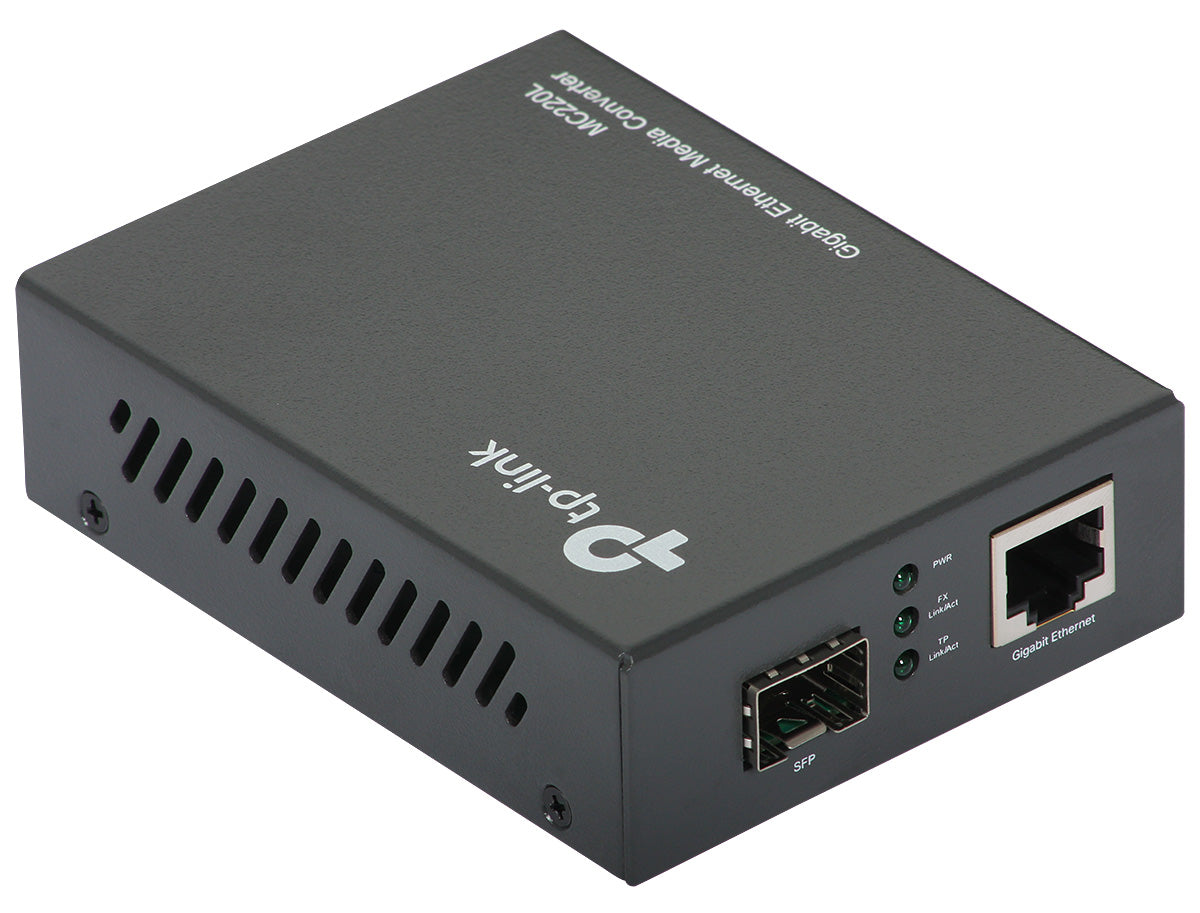

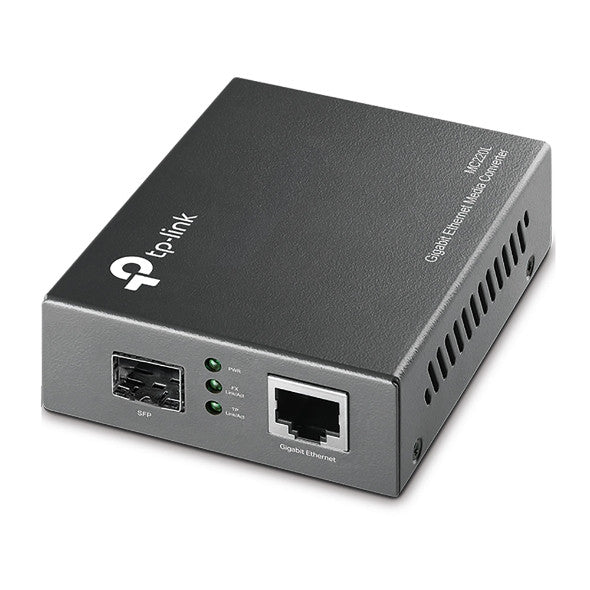

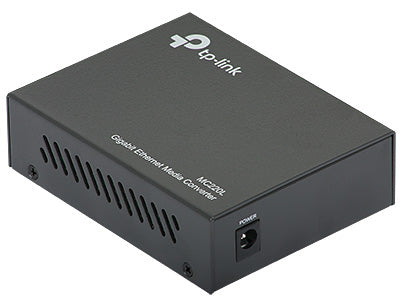

TP-Link MC220L Gigabit SFP to Ethernet Media Converter
Pickup available at NexGen Computing
Usually ready in 24 hours
Seamlessly Bridge Fiber and Copper Gigabit Networks
The TP-Link MC220L is a high-performance media converter engineered to bridge the gap between 1000BASE-SX/LX fiber optic and 1000Base-T copper Ethernet networks. This device provides a simple and reliable solution for extending your Gigabit Ethernet network over long distances using fiber optic cabling. Its versatile design allows it to be used as a standalone unit or integrated into TP-Link's 19-inch system chassis for broader applications.
Flexible and High-Speed Connectivity
Equipped with a hot-swappable SFP slot, the MC220L is compatible with both multi-mode and single-mode SFP modules, offering incredible flexibility for your network infrastructure. Depending on the SFP module used, this converter can extend fiber optic distances up to 550 meters with multi-mode fiber and up to 10 kilometers or more with single-mode fiber. It operates at 1000 Mbps in full-duplex mode for both its TX (copper) and FX (fiber) ports, ensuring maximum performance and data throughput. The RJ45 port features auto MDI/MDIX, eliminating the need for crossover cables, and supports auto-negotiation for 10/100/1000Mbps speeds to seamlessly integrate with various devices.
Plug-and-Play Simplicity
Designed for immediate deployment, the MC220L is a true plug-and-play device requiring no software installation or configuration. Easy-to-read front panel LED indicators provide real-time status monitoring of power and network activity on both the fiber (FX) and copper (TP) ports, simplifying installation and troubleshooting.
Comprehensive Specifications Table
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance based on SFP module |
| Ports | 1 x Gigabit SFP Slot 1 x 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media (Copper) | UTP category 5, 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media (Fiber) | Multi-Mode/Single-Mode SFP Module |
| LED Indicators | PWR, FX Link/Act, TP Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter: 9V/0.6A |
| Max Power Consumption | 1.7W |
| ENVIRONMENT | |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Certifications | CE, RoHS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
