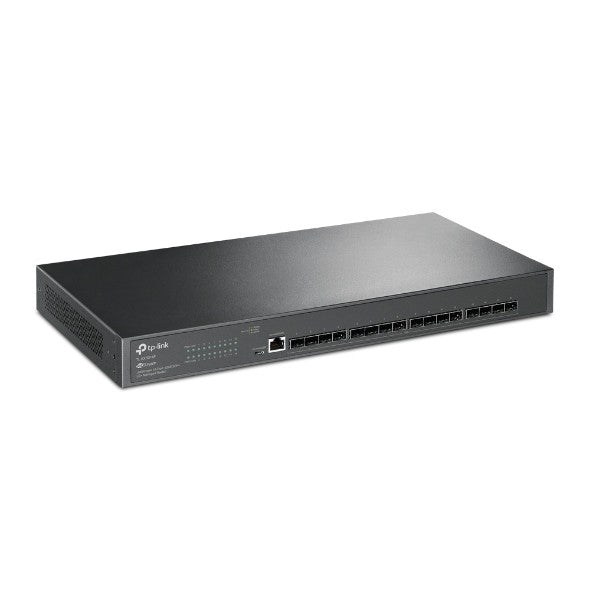

TP-Link JetStream 16-Port 10G SFP+ L2+ Managed Aggregation Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Blazing-Fast Fiber Connectivity
Elevate your business network to the next level with the TP-Link JetStream 16-Port 10GE SFP+ L2+ Managed Switch. Designed for high-demand environments, this switch serves as a powerful aggregation core, delivering lightning-fast, low-latency, and reliable connections for servers, network-attached storage (NAS), and other backbone devices. With a non-blocking 320 Gbps switching capacity, it effortlessly handles massive data transfers, making it the ideal solution for small, medium, and large enterprise networks seeking to expand and build a robust, high-speed infrastructure.
Core Features for a Future-Proof Network
- Full 10-Gigabit Fiber Ports: Equipped with 16 dedicated 10Gbps SFP+ slots, this switch provides high-bandwidth aggregation and ultra-low latency for a pure fiber, high-performance network.
- Impressive Switching Capacity: A 320 Gbps switching capacity and a 238.08 Mpps packet forwarding rate ensure smooth, non-blocking traffic flow even under the heaviest loads.
- Seamless Omada SDN Integration: As part of the Omada Software Defined Networking (SDN) platform, this switch allows for centralized cloud management. Access and manage your network from a single interface, anywhere, anytime, for ultimate control and scalability.
- Advanced L2+ Features: Go beyond basic switching with a full suite of L2+ features, including Static Routing for efficient traffic management, 802.1Q VLAN, Link Aggregation (LACP), and IGMP Snooping to optimize multicast traffic.
- Robust Security Strategies: Protect your network investment with comprehensive security. Features include IP-MAC-Port Binding, Access Control Lists (ACL, L2-L4), Port Security, Storm Control, and 802.1X Authentication to safeguard against a wide range of threats.
- Uninterrupted Reliability: Dual redundant power supplies ensure continuous operation and provide a reliable networking architecture, making it a dependable choice for mission-critical applications.
- Flexible Management: In addition to Omada SDN, the switch supports standalone management via a user-friendly web GUI, Command Line Interface (CLI), SNMP, and RMON for maximum flexibility.
Official Specifications
| Hardware Features | |
|---|---|
| Interface | • 16× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 1 |
| Power Supply | Dual Redundant Power Supplies, 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.74 W (220 V / 50 Hz) |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| Performance | |
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Software Features | |
| Quality of Service (QoS) | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP, WRR, SP+WRR • Bandwidth Control |
| L2 and L2+ Features | • Static Routing • Link Aggregation (Static, 802.3ad LACP) • Spanning Tree Protocol (STP/RSTP/MSTP) • IGMP Snooping • Loopback Detection |
| VLAN | • VLAN Group (Max 4K VLAN Groups) • 802.1Q tagged VLAN • MAC VLAN • Protocol VLAN • Private VLAN • Guest VLAN |
| Security | • IP-MAC-Port Binding • Access Control List (L2~L4 ACL) • Port Security • DoS Defend • Storm Control (Broadcast/Multicast/Unicast) • 802.1X Authentication • DHCP Snooping |
| Management | • Omada App • Centralized Management (Omada Hardware/Software/Cloud-Based Controller) • Cloud Access • Web-based GUI • CLI (Console Port, Telnet, SSH) • SNMP v1/v2c/v3 • RMON (1, 2, 3, 9 groups) • Dual Image |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
