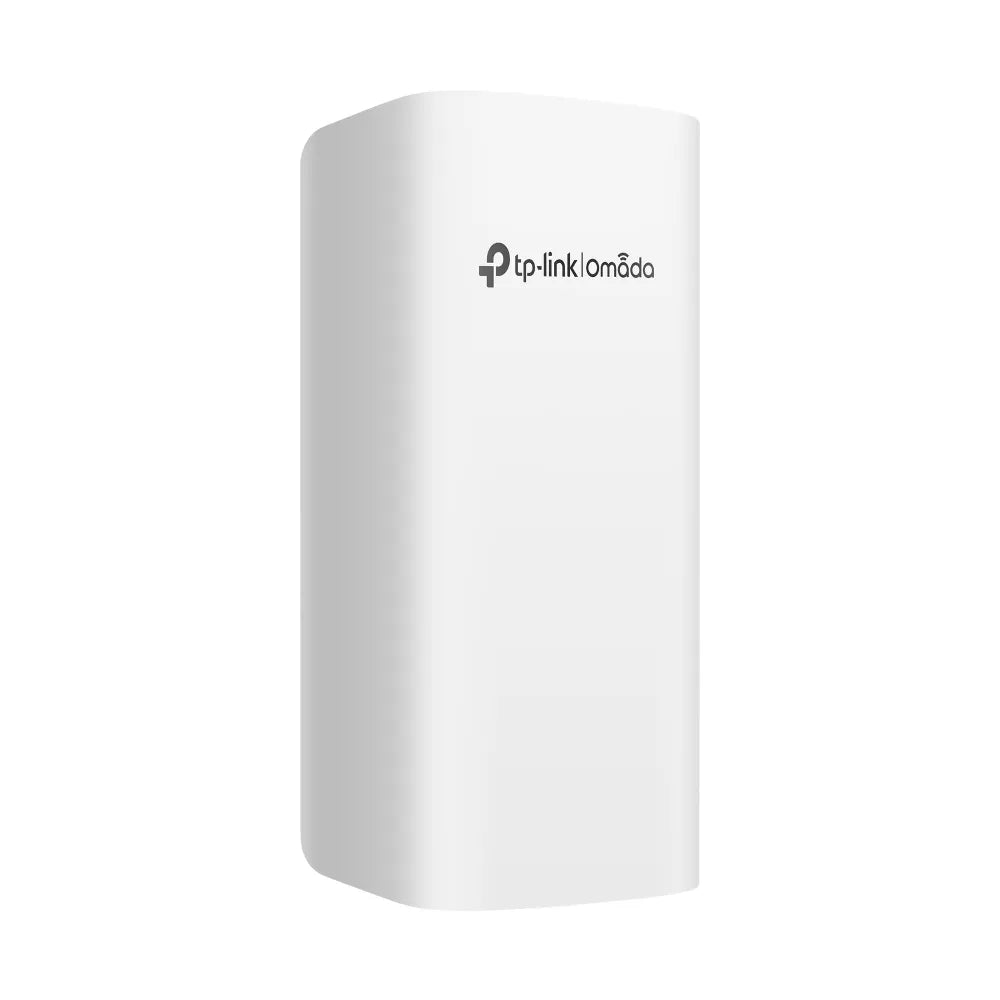

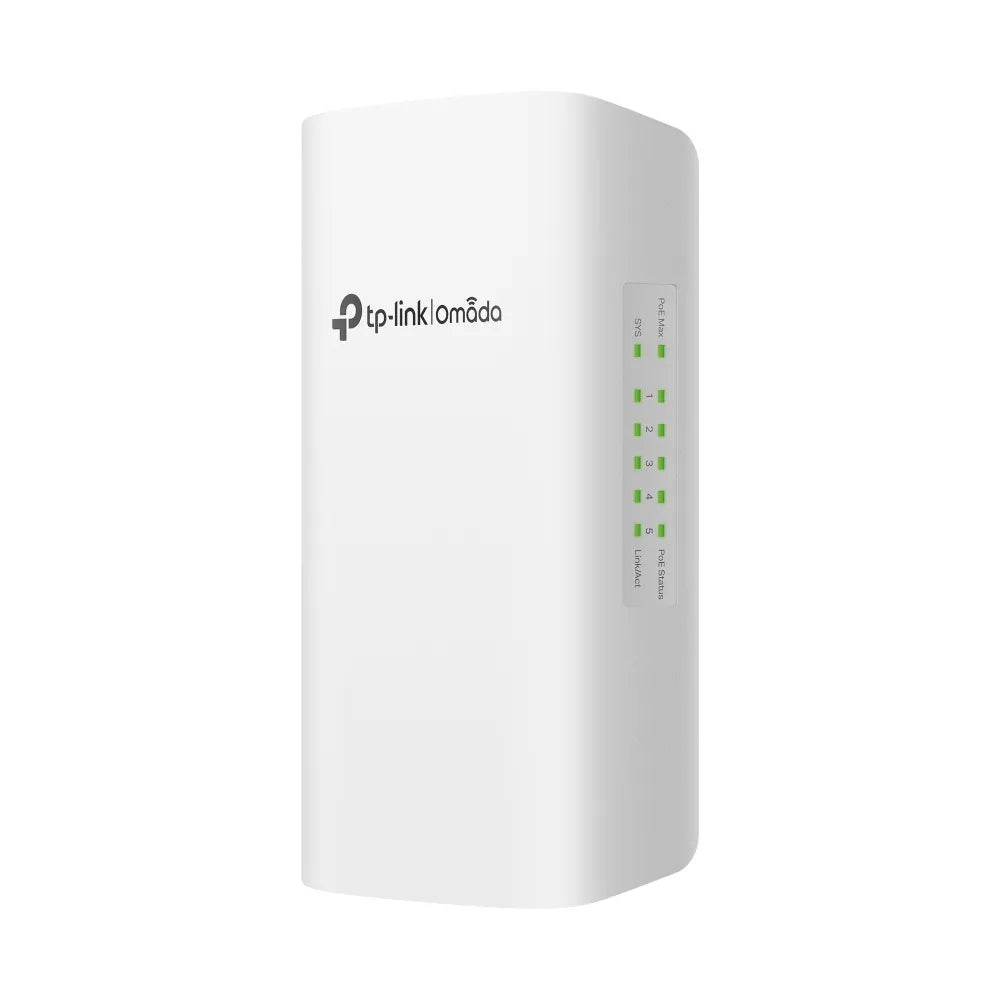

TP-Link Omada SG2005P-PD 5-Port Gigabit Outdoor PoE+ Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Extend Your Outdoor Network with Ease
Introducing the TP-Link Omada SG2005P-PD, a rugged and intelligent 5-port Gigabit switch designed to thrive in the harshest outdoor environments. This switch is uniquely powered by PoE++ (802.3bt) and delivers robust PoE+ (802.3at/af) power to four other devices, making it the perfect solution for deploying IP cameras, outdoor access points, and other PoE-compatible hardware where power outlets are non-existent. Its durable IP55-rated weatherproof enclosure ensures protection against dust and water, while the UV-resistant casing and wide operating temperature range (-40 to 60 °C) guarantee reliability through any season.
Key Features:
- PoE Passthrough Powerhouse: Features one Gigabit PoE++ input port to power the switch and four Gigabit PoE+ output ports to power your devices, with a total power budget up to 64W.
- Built for the Outdoors: A resilient IP55 weatherproof, dustproof, and UV-resistant enclosure, coupled with 4KV lightning protection, ensures stable operation in severe outdoor conditions.
- Extended PoE Range: Doubles the standard PoE distance from 100 meters to 200 meters, allowing for flexible, long-range deployment of devices like surveillance cameras without losing Gigabit speeds.
- Omada SDN Integration: Seamlessly integrates into the Omada Software Defined Networking (SDN) platform for 100% centralized cloud management from a single interface, enabling zero-touch provisioning and remote control.
- Advanced L2+ Features: Equipped with a full lineup of L2+ features, including Static Routing, 802.1Q VLAN, Access Control Lists (ACL), and Quality of Service (QoS) to optimize your network for peak performance and security.

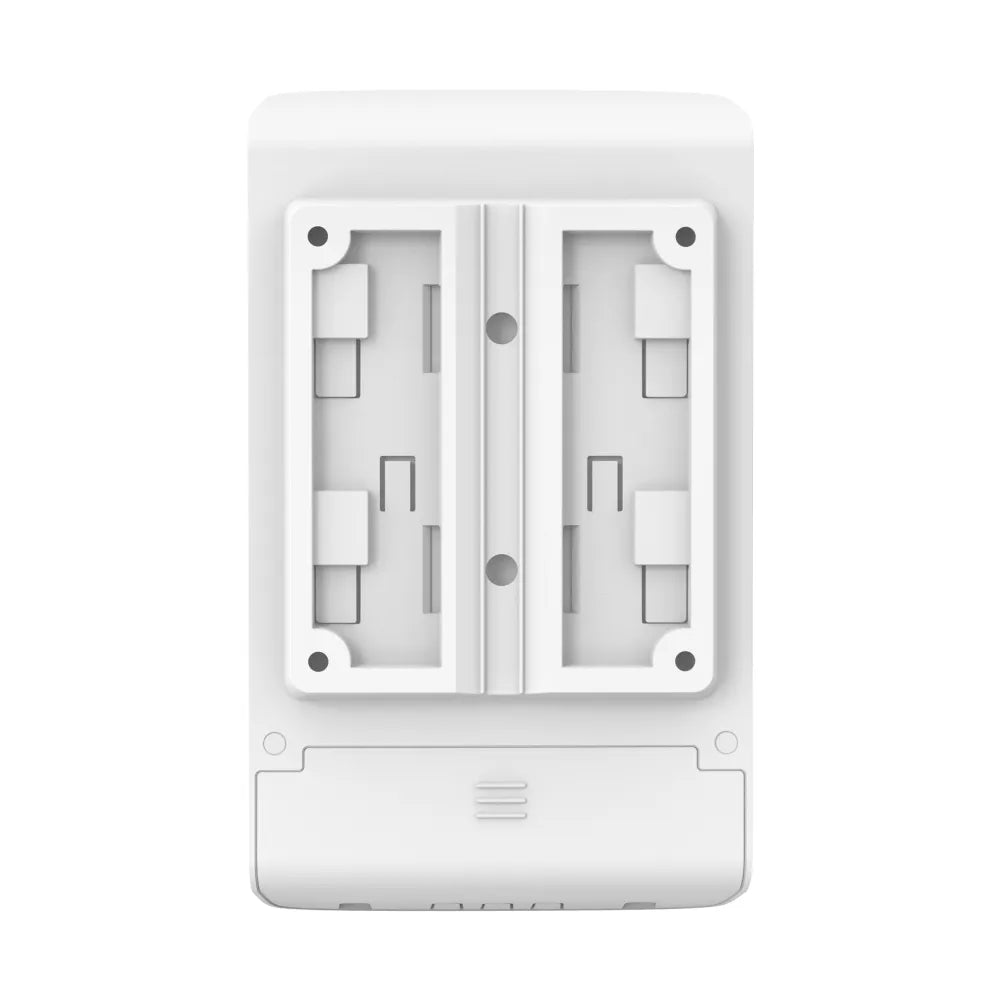

- Flexible Installation: Includes mounting kits for easy installation on a wall or pole, fitting a wide variety of outdoor deployment needs.
Official Technical Specifications
| Hardware Features | |
|---|---|
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x |

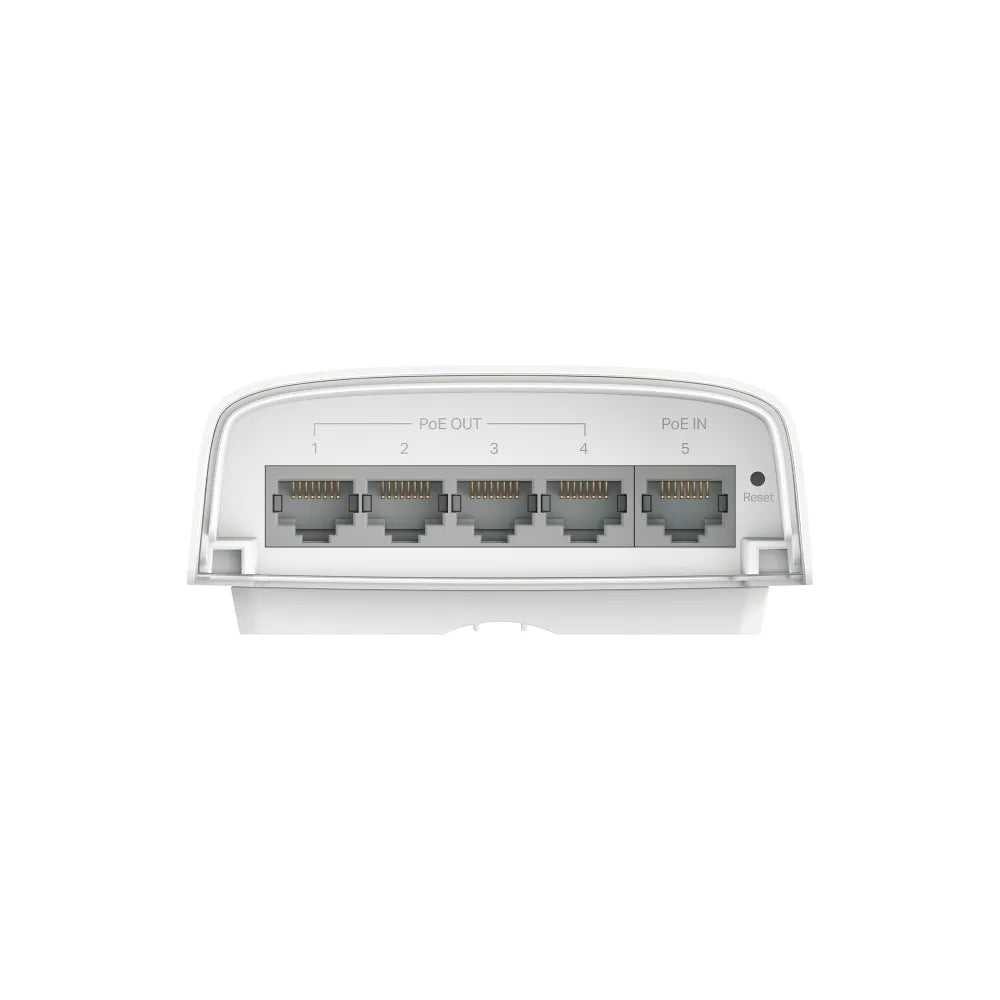

| Interface | 1× 10/100/1000 Mbps RJ45 PoE In Port (802.3af/at/bt) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (802.3af/at) |
| Fan Quantity | Fanless |
| Power Supply | Powered by 802.3af/at/bt PoE Source (No DC or AC power input supported) |
| Mounting | Pole / Wall Mounting |
| Dimensions (W x D x H) | 3.9 x 1.5 x 6.7 in (100 x 38.5 x 170 mm) |
| PoE Specifications | |
| PoE Ports (Out) | Ports 1-4, compliant with 802.3af/at |
| PoE Power Budget | Up to 64W (Powered by 802.3bt Type 4, 90W) Up to 44W (Powered by 802.3bt Type 3, 60W) Up to 19W (Powered by 802.3at) Up to 6W (Powered by 802.3af) |
| Performance | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Software Features | |
| Management | Omada App, Centralized Management (Omada Hardware/Software Controller), Cloud Access, Web-based GUI, CLI, SNMP v1/v2c/v3, RMON |
| L2 and L2+ Features | Static Routing, DHCP Relay, Link Aggregation (LACP), STP/RSTP/MSTP, IGMP Snooping, 802.1Q VLAN, Voice VLAN, and more |
| Security | Access Control List (ACL), Port Security, IP-MAC-Port Binding, Storm Control, 802.1X Authentication, SSL and SSH encryption |
| Quality of Service (QoS) | 802.1p CoS/DSCP priority, 8 priority queues, Queue scheduling, Voice VLAN |
| Environment & Certifications | |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating / Storage Humidity | 10-90% / 5-90% non-condensing |
| Weatherproof Rating | IP55 |
