4-Channel 4K
H.265+ Support
Up to 10TB Storage
80Mbps Inbound

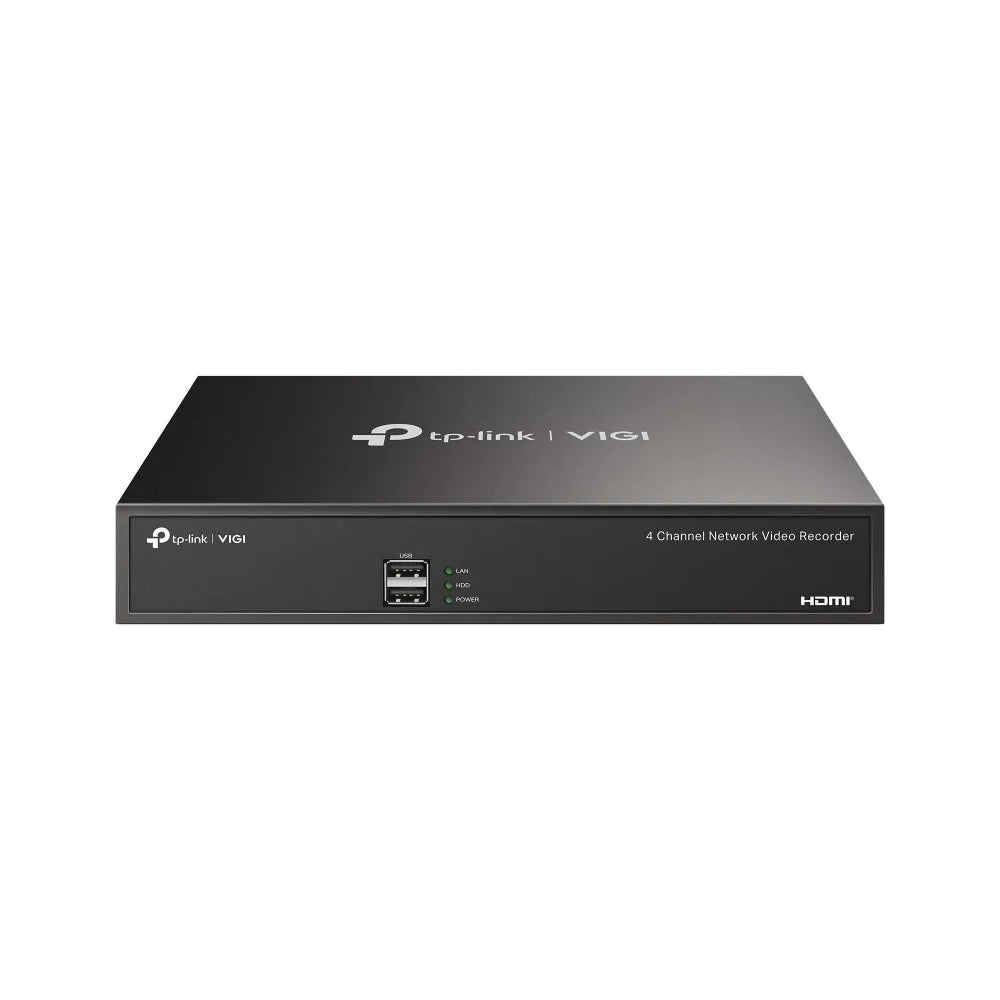

TP-Link VIGI 4-Channel 4K H.265+ Network Video Recorder | NVR1004H
Estimated delivery
Includes R 0 already in your cart
High-Definition Video Recording
The TP-Link VIGI 4-Channel Network Video Recorder (NVR1004H) is a reliable solution for storing, viewing, and managing your IP camera feeds. With support for 4K HDMI output and advanced H.265+ compression, it ensures crisp image quality while maximizing your hard drive storage capacity.
HDMI and VGA outputs work simultaneously, smart detections such as line-crossing, intrusion, human and vehicle detection can trigger recordings and alerts, and ONVIF support lets you add compatible third-party cameras. A hard drive (not included) must be installed for recording.
Features
- 4-Channel Support: Connect and record from up to 4 IP cameras simultaneously.
- 4K Video Output: Delivers sharp image definition up to 8MP via HDMI (3840 × 2160 at 30 Hz).
- H.265+ Compression: Reduces bandwidth and storage requirements without sacrificing quality.
- High Bandwidth: Supports 80Mbps incoming and 60Mbps outgoing bandwidth.
- Massive Storage: Includes 1 SATA interface supporting hard drives up to 10TB.
- Simultaneous Output: HDMI and VGA outputs at the same time.
- 4-Channel Synchronous Playback with instant, regular, tag and event playback.
- Smart Detection: Motion, line-crossing, intrusion, region entering/exiting, loitering, human and vehicle detection (requires compatible cameras).
- Two-Way Audio: Listen and talk in real time.
- Remote Access: Easily manage your system from anywhere using the VIGI app.
Specifications
| Model | VIGI NVR1004H |
| Channels | 4 |
| Incoming / Outgoing Bandwidth | 80 Mbps / 60 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711A / G.711U / G.726 |
| Max Resolution | 4K (8MP) |
| Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP; 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| HDMI Output | 1 x HDMI, up to 3840 × 2160/30Hz |
| VGA Output | 1 x VGA, up to 1920 × 1080/60Hz |
| Multi-View Display | 1 / 4 |
| Storage Capacity | 1x SATA, up to 10TB (HDD not included) |
| Network Interface | 1 x RJ-45 10/100 Mbps |
| USB | 2 x USB 2.0 |
| Audio Interface | 1-ch RCA input, 1-ch RCA output |
| Interoperability | ONVIF (Profile S), CGI |
| Mobile / Browser Access | Android, iOS; Chrome 57+, Firefox 52+, Edge 91+ |
| Power Supply | DC 12V / 1.5A |
| Max Power Consumption | 4.25 W (without disk) |
| Working Temperature | NVR: -10 to 55 °C; power adapter: 0 to 40 °C |
| Dimensions (W × D × H) | 246.2 × 148.2 × 45 mm |
| Net Weight | 0.59 kg |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
What's in the Box
- 1 x VIGI Network Video Recorder
- 1 x Power adapter
- HDD screws
- 1 x Mouse
- Rubber feet
- 1 x Quick Installation Guide
Hard disk drive not included.
