Ubiquiti

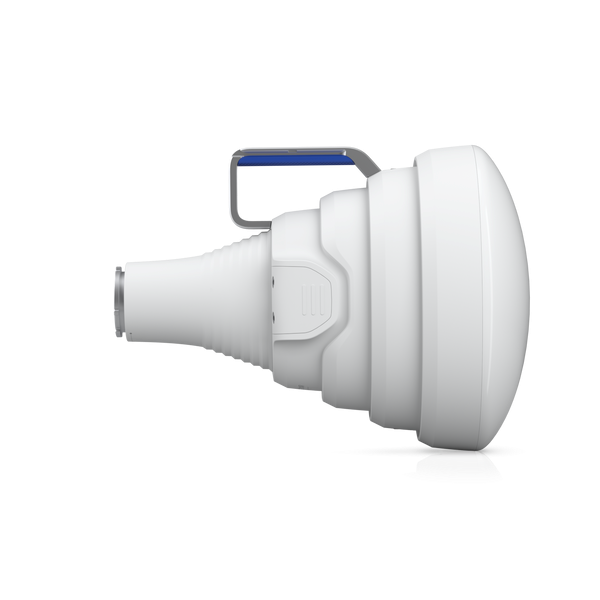

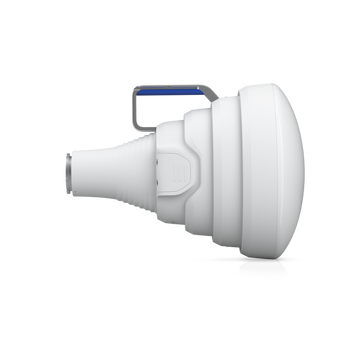

Ubiquiti UISP-Horn 5GHz PtMP Horn Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Conquer Congested RF Environments
The Ubiquiti UISP Horn is a high-performance Point-to-MultiPoint (PtMP) antenna engineered to deliver exceptional signal isolation in crowded and noisy RF environments. Its innovative horn design significantly minimizes side lobes and back-radiation, which is crucial for the co-location of multiple radios on a single tower. This antenna is the ideal solution for Wireless Internet Service Providers (WISPs) and network operators seeking to build robust, high-density networks with clean and reliable signals.
Optimized for Performance
Operating over a wide frequency range of 5.15 to 6.875 GHz, the UISP Horn provides versatility and adaptability to various regional regulations and spectrum availability. It features a precise 30° beamwidth for targeted coverage and a gain of up to 19.5 dBi, ensuring strong connections over long distances, with a Point-to-MultiPoint link range exceeding 15 km. The antenna's design boasts a high front-to-back ratio and excellent cross-pol isolation, further enhancing its performance in interference-rich areas.
Seamless Radio Integration

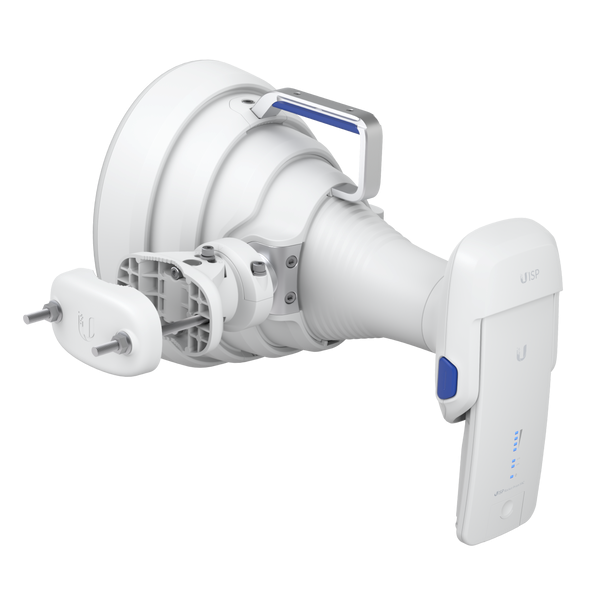

The UISP Horn is designed for seamless integration with a range of Ubiquiti radios. With the included WaveGuide adapter, it can be easily and securely attached to an airFiber® 5XHD, LTU® Rocket®, or airMAX® Rocket Prism® AC 5 GHz Radio. The antenna features secure latches on each side for a stable, snap-in radio connection, ensuring reliability and peace of mind.
Built for Durability
Constructed from UV-stabilized polycarbonate and a durable aluminum alloy, the UISP Horn is built to withstand harsh outdoor conditions. It can survive winds of up to 200 km/h (124 mph) and has an IPX6 weatherproofing rating, guaranteeing longevity and consistent performance. The included pole mounting kit allows for precise mechanical adjustments for optimal alignment.
Technical Specifications
| Hardware Specifications | |
|---|---|
| Frequency Range | 5.15 - 6.875 GHz |
| Gain | 19.5 dBi |
| Beamwidth | Azimuth: 30° (6 dB), Elevation: 25° (6 dB) |
| Polarization | Dual-linear |
| Max. VSWR | 2:1 |
| Front-to-Back Ratio | Typical: 45 to 50 dB, Min.: 40 dB |
| Cross-Pol Isolation | 20 dB |
| Electrical Downtilt | 0° |
| Mechanical Specifications | |
| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15") |
| Weight | Device: 3.06 kg (6.75 lb), Mount: 925 g (2.04 lb) |
| Enclosure Materials | UV stabilized polycarbonate, aluminum alloy |
| Weatherproofing | IPX6 |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) |
| Mounting | |

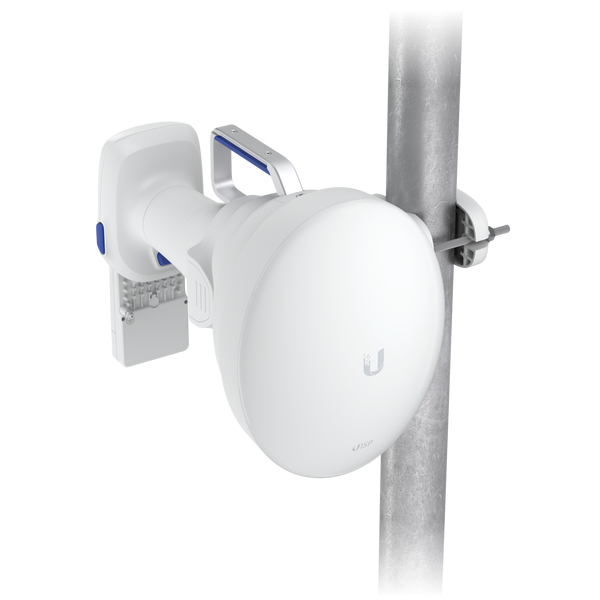

| Mounting Type | Pole mount Alignment Mount (Included) |
| Pole Mount Diameter | ⌀25 to 70 mm (⌀1 to 3") |
| Mechanical Adjustment | ±20° elevation, ±25° azimuth |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
