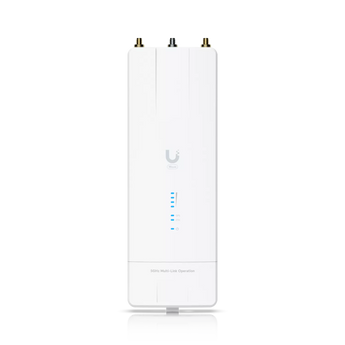

Ubiquiti UISP Wave MLO5 5 Gbps WiFi 7 PtP Radio
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Gen Long-Range Wireless Backhaul
Experience a new era of wireless connectivity with the Ubiquiti UISP Wave MLO5, a high-performance, dual 5 GHz radio engineered for robust, long-distance Point-to-Point (PtP) links. Leveraging cutting-edge Wi-Fi 7 and Multi-Link Operation (MLO) technology, the Wave MLO5 delivers an astounding aggregate throughput of over 5 Gbps, ensuring your network can handle the most demanding applications. This device is the ideal solution for service providers and enterprises seeking to establish high-capacity backhaul where fiber is impractical, bridging large campuses or connecting remote facilities up to 100 km away.
Unprecedented Performance with Wi-Fi 7 and MLO
The core of the Wave MLO5 is its dual-radio architecture combined with Multi-Link Operation (MLO), which allows both 5 GHz radios to function as a single, highly efficient virtual connection. This innovative approach significantly boosts throughput, enhances link stability, and provides redundancy in challenging RF environments. With advanced features like channel puncturing and a dedicated spectral analysis radio, the Wave MLO5 intelligently navigates interference, ensuring optimal performance and reliability in congested areas.
Engineered for Durability and Flexible Deployment
Built to withstand the harshest outdoor conditions, the Wave MLO5 features a rugged, IPX6-rated enclosure made from aluminum alloy and UV-resistant polycarbonate. It offers versatile connectivity with one 10GbE RJ45 port and one 10G SFP+ port, providing flexible uplink options for any network infrastructure. Power is supplied via the included 54V passive PoE adapter. An integrated GPS module ensures precise synchronization for deployment, and compatibility with a wide range of antennas like the UISP Horn, Wave Dish, and airMAX series makes it adaptable to any scenario.
Technical Specifications
| Mechanical | |
| Dimensions | 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9") |
| Weight | 575 g (1.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Weatherproofing | IPX6 |
| Pole Mount Diameter | 25.4 to 50.8 mm (1 to 2") |
| Hardware | |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | 1 GB DDR4 |
| Networking Interface | (1) 10 GbE RJ45 port, (1) 10G SFP+ port |
| RF Connectors | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs/2-pairs |
| Power Supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| GPS | Yes |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| System | |
| Operating Mode | PtP |
| Total Throughput | 5+ Gbps |
| Max. Range | 100 km |
| Encryption | WPA3-PSK (AES) |
| RF | |
| Operating Frequency | 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz |
| MIMO | (2) 2 x 2 |
| Channel Bandwidth | Radio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
