Ubiquiti

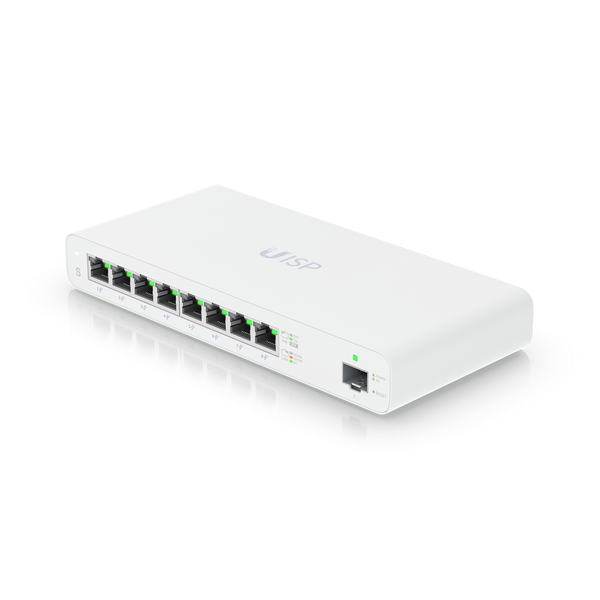

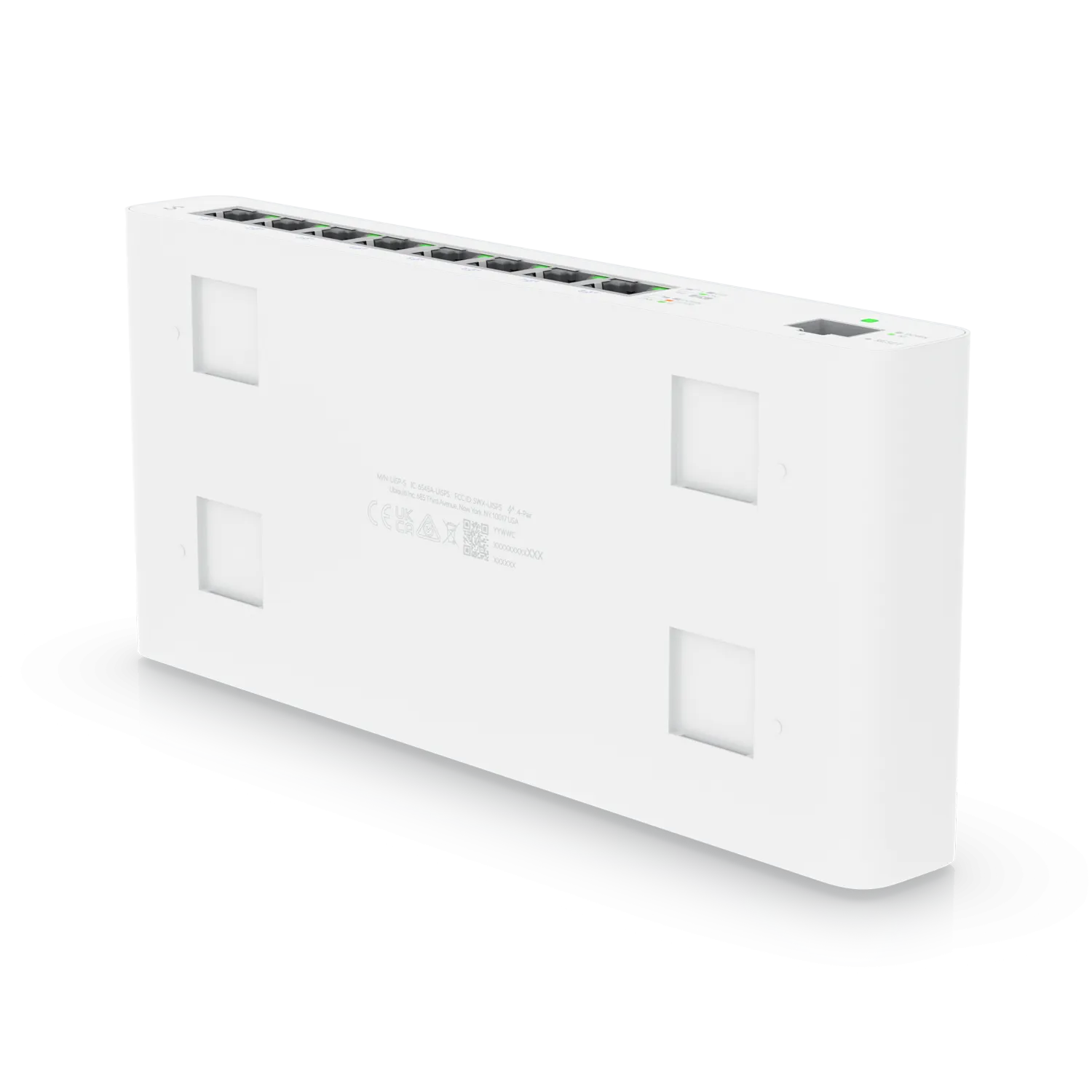

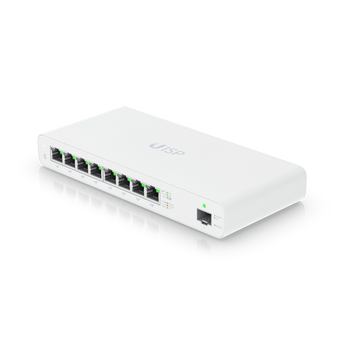

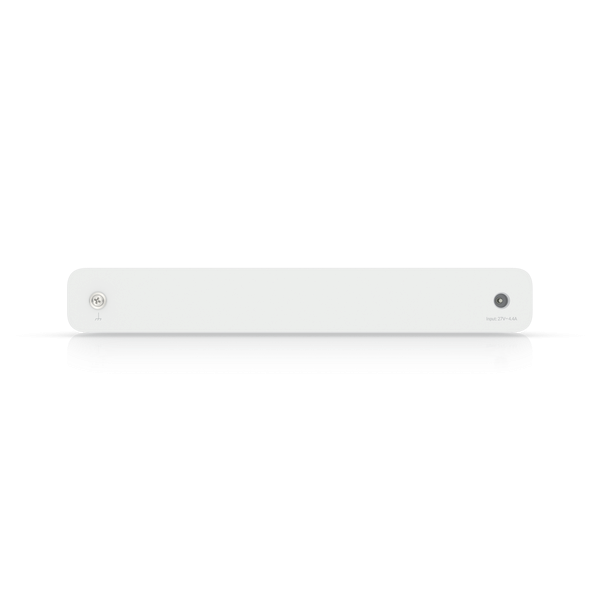

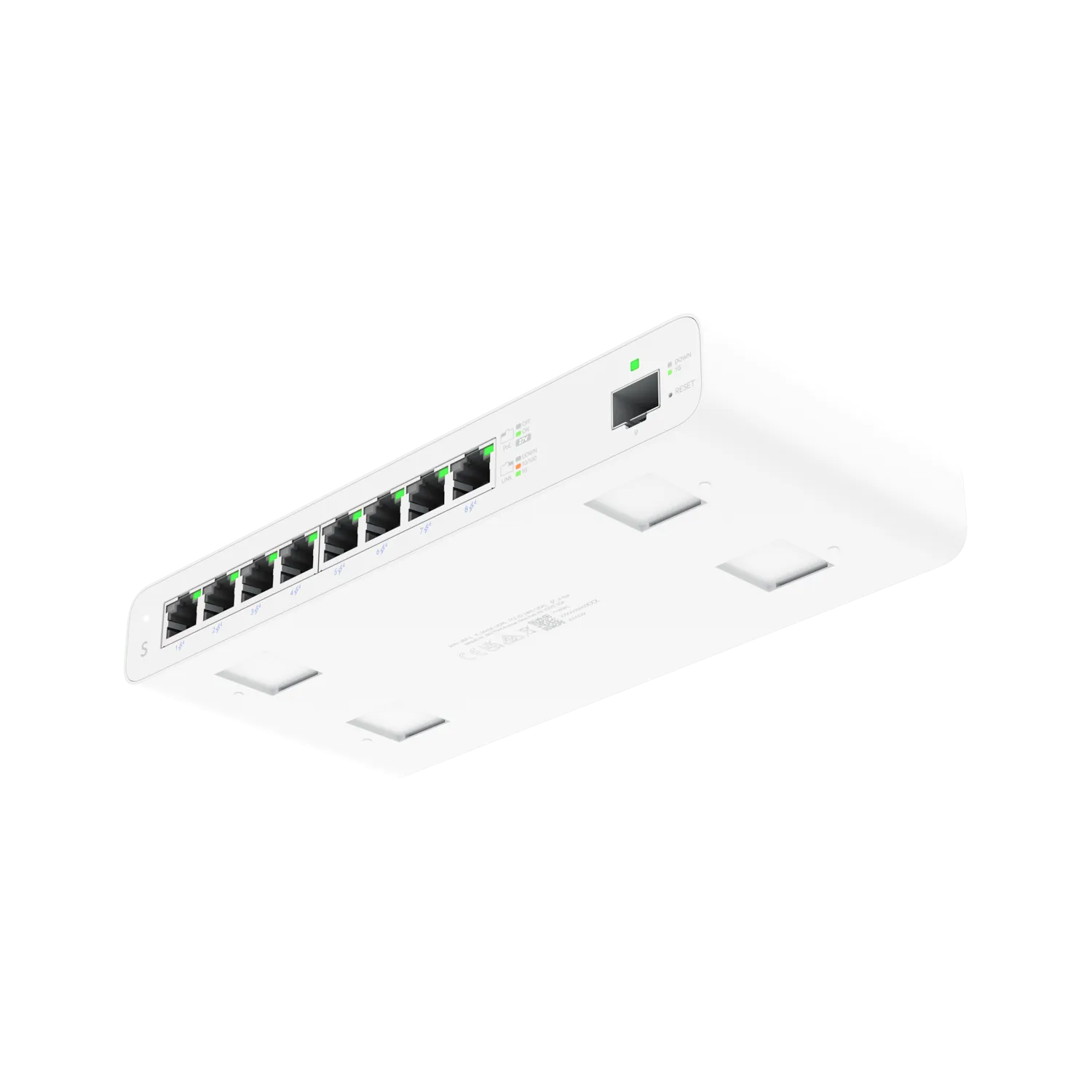

Ubiquiti UISP 8-Port Gigabit PoE Switch with SFP
Pickup available at NexGen Computing
Usually ready in 24 hours
Power Your Wireless ISP Deployments
Engineered specifically for Wireless ISP (WISP) deployments, the Ubiquiti UISP Switch is a fanless, Layer 2 PoE switch designed for performance and reliability. It serves as a cost-effective solution for WISPs aiming to deliver Gigabit wireless speeds to their customers efficiently. This switch integrates seamlessly into the Ubiquiti UISP ecosystem, allowing for centralized management and monitoring of all your UISP devices through a single, intuitive platform.
Robust Connectivity and Power
The UISP Switch features eight Gigabit RJ45 ports that provide 27V passive PoE to power your radios and other network devices. With a substantial total PoE supply of 110W, it delivers consistent power to every device in your service network. For fiber connectivity, an additional 1G SFP port is included for high-speed uplink options. The switch supports both 2-pair and 4-pair PoE modes, offering flexibility for your specific hardware requirements.
Designed for Silent, High-Performance Operation
The fanless, thermal cooling design ensures silent operation, making it suitable for any deployment environment. Despite its compact and quiet build, the UISP Switch boasts a total non-blocking throughput of 9 Gbps and a switching capacity of 18 Gbps, ensuring smooth and reliable data flow across your network. Setup is simplified with Bluetooth-powered configuration via the UISP Mobile app. A wall-mounting kit is included for easy and secure installation.
Comprehensive Specifications
| Hardware | |
| Networking Interface | (8) 10/100/1000 MbE RJ45 Ports (1) 1G SFP Port |
| Management Interface | Ethernet In-Band, Bluetooth BLE |
| Total Non-Blocking Throughput | 9 Gbps |
| Switching Capacity | 18 Gbps |
| Forwarding Rate | 13.392 Mpps |
| Power over Ethernet (PoE) | |
| PoE Interface | (8) 27V Passive PoE Ports (2-pair pins 4, 5+/7, 8- or 4-pair pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total PoE Power Budget | 110W (with included adapter) |
| Max. Passive PoE Wattage per Port | 30W/27VDC |
| Passive PoE Voltage Range | 27VDC |
| Power & Mechanical | |
| Power Method | External AC/DC Adapter (Included) |
| Power Supply | 27VDC, 4.4A |
| Supported Voltage Range | 24 - 28VDC |
| Max. Power Consumption | 8W (Excludes PoE Output) |
| Dimensions | 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14") |
| Weight | 610 g (1.34 lb) |
| Enclosure Material | Polycarbonate |
| ESD/EMP Protection | Air: ± 15 kV, Contact: ± 8 kV |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
