5.8GHz Sector Antenna
21dBi Gain
60º Beamwidth
High-Performance
Ubiquiti UISP airMAX 5.8GHz 21dBi 60º Sector | AM-5AC21-60
Estimated delivery
Includes R 0 already in your cart
Next-Gen Performance for Your Point-to-MultiPoint Network
Upgrade your network's performance with the Ubiquiti airMAX ac 5GHz Sector Antenna. This antenna is engineered for high-capacity, multipoint networks, delivering significant advancements in scalability, noise isolation, and beam performance. It is the next generation of 2x2 MIMO sector antennas from Ubiquiti, designed to integrate seamlessly with Rocket™5ac radios for optimal carrier-class performance. While compatible with RocketM5 models, it is optimized for the Rocket5ac to achieve the highest data rates.
Superior Noise Immunity and Beam Performance
The airMAX ac Sector Antenna is highly resistant to noise interference, making it ideal for co-location deployments. Its innovative deflector design, along with reduced sidelobes and backlobes, effectively rejects interference from other transmitters that may be nearby or on the same tower. This superior noise immunity improves the Signal-to-Noise Ratio (SNR), allowing for the use of higher-order modulation like 256QAM, which translates to a higher data rate for a fixed bandwidth.
Built for the Outdoors

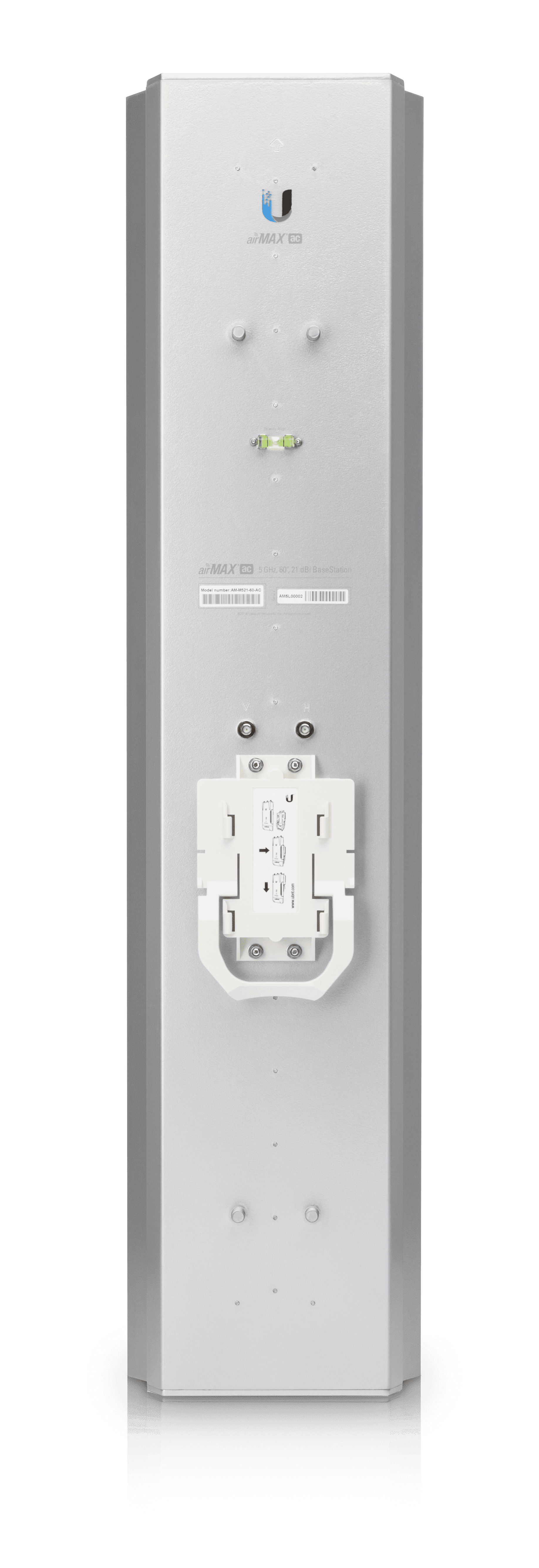

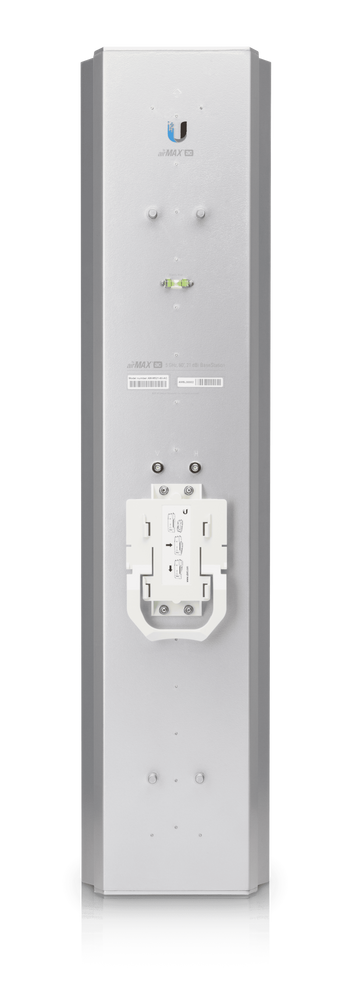

Designed with a robust mechanical design for outdoor applications, this antenna features industrial-strength construction for durability. It can withstand wind speeds up to 200 km/h (125 mph), ensuring reliability in harsh weather conditions. The antenna includes a universal pole mount, a Rocket mount, and weatherproof RF jumpers for a secure and straightforward installation. Every airMAX ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Key Features:
- Frequency: 5.10 - 5.85 GHz
- Gain: 21 dBi High-Gain for long-range connectivity
- Coverage: 60° beamwidth for sector-wide coverage
- Technology: 2x2 MIMO airMAX ac for enhanced performance
- Noise Isolation: Advanced design for co-location deployments
- Construction: Industrial-strength for outdoor durability
- Integration: Plug-and-Play with Rocket™ radios
Technical Specifications
| Model | AM-5AC21-60 |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 21 dBi |
| HPOL Beamwidth | 60° (6dB) |
| VPOL Beamwidth | 60° (6dB) |
| Elevation Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB Min |
| Dimensions | 750 x 173 x 78 mm (29.53 x 6.81 x 3.07") |
| Weight (Mount Included) | 4.8 kg (10.58 lbs) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 391 N @ 200 km/h (88 lbf @ 125 mph) |
| Mounting | Universal Pole Mount, Rocket Mount, and Weatherproof RF Cables Included |
| ETSI Specification | EN 302 326 DN2 |
Manufacturer Technical Data
| Product Spec Sheet |
|
|---|
