Ubiquiti

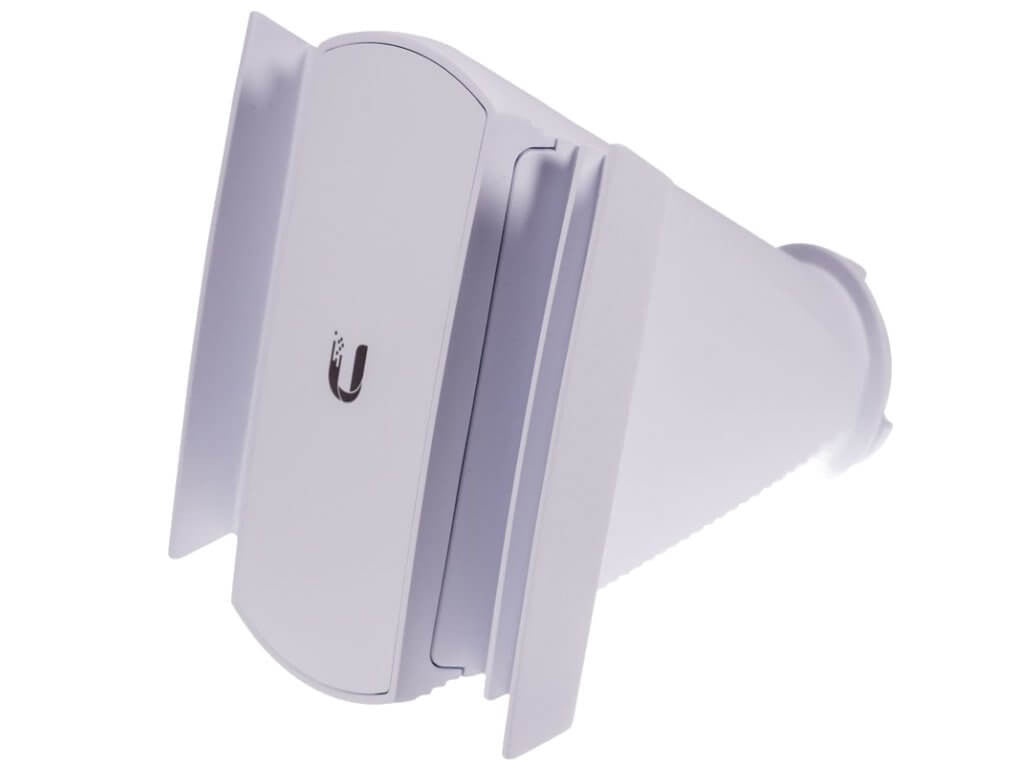

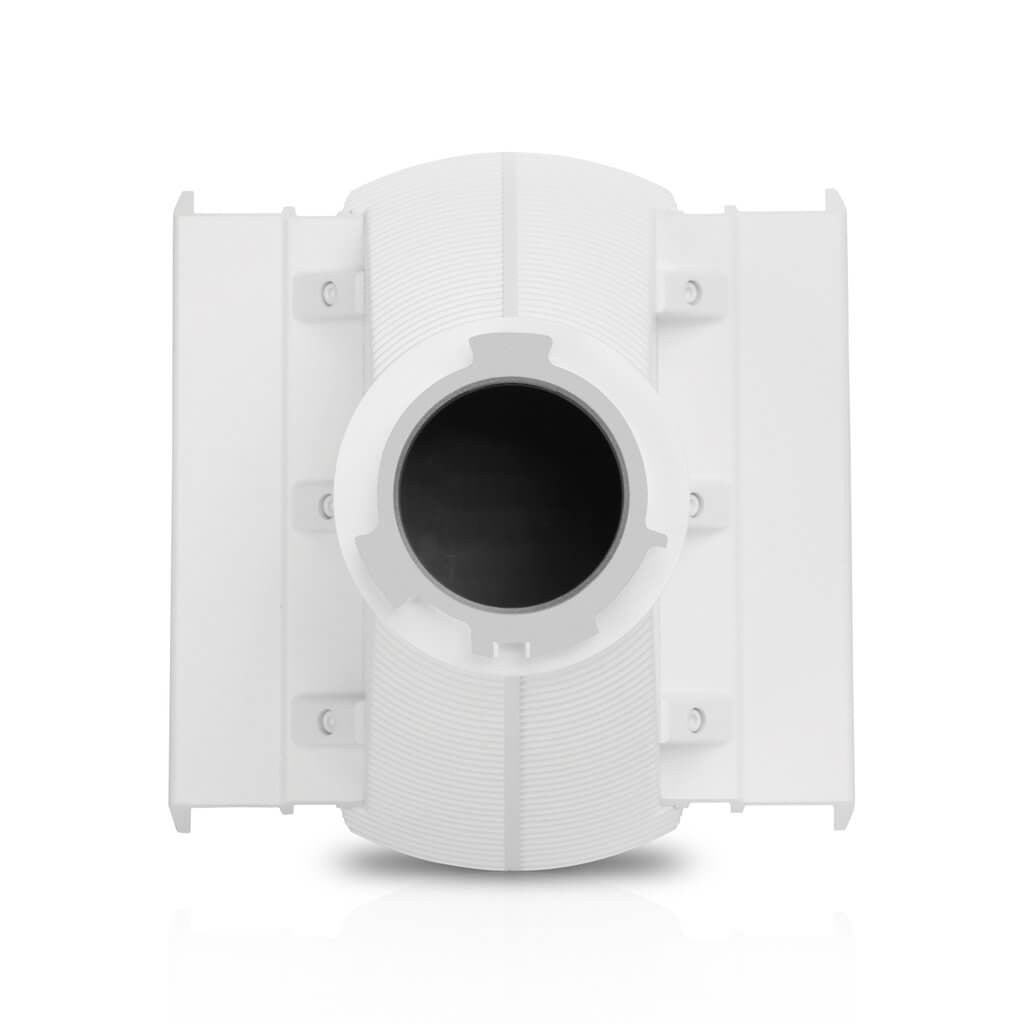

Ubiquiti UISP airMAX AC PrismStation 5GHz 60° Horn Antenna | Horn-5-60
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision Engineered for Superior Wireless Performance
Elevate your network's performance with the Ubiquiti airMAX 5GHz 60° Horn Antenna, meticulously designed for the PrismStation, IsoStation, and airFiber LTU radios. This high-performance isolation antenna is engineered to provide exceptional co-location performance, making it an ideal solution for crowded tower deployments. Its innovative design minimizes interference by naturally attenuating side lobes and offering extremely low back radiation, ensuring a clean and powerful signal. With a single button release mechanism, swapping antennas is effortless, allowing for quick and easy adjustments to your network setup.
Optimized Beam Shaping for Targeted Coverage
The Horn-5-60 is designed for precise radiation angles, offering a 60° beamwidth for both horizontal and vertical polarization. This focused beam shaping is perfect for a wide variety of installation scenarios, ensuring that your wireless signal is directed exactly where it's needed. Whether you are setting up a point-to-point (PtP) or point-to-multipoint (PtMP) network, this antenna provides a perfect balance of wide coverage and concentrated signal strength, enhancing the efficiency and reliability of your wireless infrastructure. The asymmetrical horn design provides the best front-to-back ratio in the industry and the lowest side lobe radiation, making it perfect for cluster sector installations with high co-location demands.
Robust Construction for Demanding Environments
Built to withstand the elements, the Ubiquiti airMAX Horn Antenna boasts a wind survivability of up to 200 km/h (125 mph), ensuring uninterrupted operation in harsh weather conditions. Its durable construction and reliable performance make it a dependable choice for professional installers seeking to build robust and scalable wireless networks. The antenna's compatibility with PS-5AC, IS-5AC, and IS-M5 radios offers flexibility in network design and deployment.
Technical Specifications
| Specification | Details |
| Dimensions | 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73") |
| Weight | 720g (1.6 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 16 dBi |
| HPOL Beamwidth | 60° |
| VPOL Beamwidth | 60° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 50 N @ 200 km/h (11.2 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Compatible Radios | PrismStation (PS-5AC), IsoStation (IS-5AC, IS-M5), airFiber LTU (AF-LTU) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
