Ubiquiti
Ubiquiti UniFi Flex 5 Port Gigabit 1 PoE In 4 PoE Out Switch | USW-Flex
Pickup available at NexGen Computing
Usually ready in 24 hours
Versatile, High-Performance Gigabit Switching Anywhere You Need It
Build and expand your network with the Ubiquiti UniFi Switch Flex, a highly versatile, configurable Layer 2 Gigabit switch engineered for both indoor and outdoor installations. Its compact and weatherproof design makes it the ideal solution for deploying devices such as security cameras, access points, and VoIP phones in any environment, from desktops and ceilings to outdoor poles. The USW-Flex offers robust performance and intelligent switching, all managed through the intuitive UniFi Network Controller software.
Flexible Power over Ethernet (PoE)

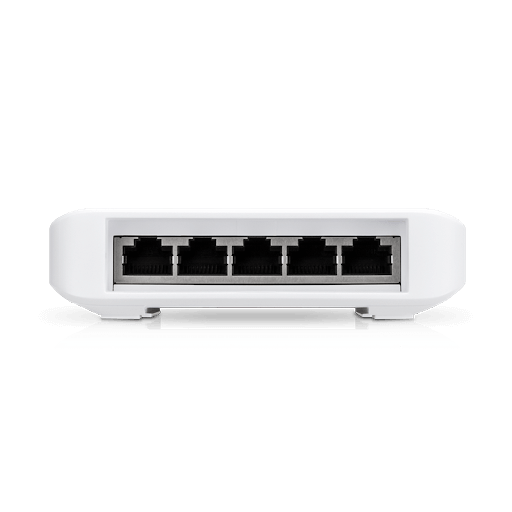

The UniFi Switch Flex features five Gigabit RJ45 ports, including one PoE input port and four PoE output ports, offering significant installation flexibility. It can be powered by an 802.3bt PoE++ switch or a 60W PoE adapter to deliver a total PoE power budget of up to 46W. The four auto-sensing IEEE 802.3af PoE ports provide up to 15W of power per port, perfect for powering a variety of UniFi devices and other PoE-compatible products.
Built for Any Environment
Designed for ultimate adaptability, the USW-Flex can be installed horizontally or vertically in a wide range of locations. Its IP55-rated weatherproof housing ensures it can withstand extreme temperature variations and the elements when installed outdoors. Multiple mounting options are included, such as wall, pole, and desktop mounts, allowing for a clean and secure installation wherever you need to extend your network.
Centralized Management with UniFi Network Controller
Like all UniFi devices, the USW-Flex is seamlessly integrated and managed by the UniFi Network Controller. This powerful software allows you to provision devices, map your network topology, and manage system traffic from a single, centralized interface. Monitor network health, access real-time statistics, and make on-the-fly adjustments to ensure your network is always running at peak performance.
Official Specifications
| Mechanical | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") |
| Weight | 230 g (8.11 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Power Method (Port 1) | PoE Mode 1: 802.3af/at PoE Mode 2: 802.3bt PoE Mode 3: 50V/60W PoE Adapter |
| PoE Out (Ports 2-4) | 802.3af (Pins 1, 2+; 3, 6-) |
| Max. Power Consumption (Excluding PoE Output) | 5W |
| Total PoE Power Budget | Powered by 802.3at: 20W Powered by 802.3bt: 46W Powered by 60W PoE Adapter: 46W |
| Max PoE Wattage per Port | 15.4W |
| Supported Voltage Range | 802.3af: 44 - 57V 802.3at/bt: 50 - 57V |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Environmental | |
| Operating Temperature | With 46W PoE output: -40 to 55° C (-40 to 131° F) With 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
