Ubiquiti

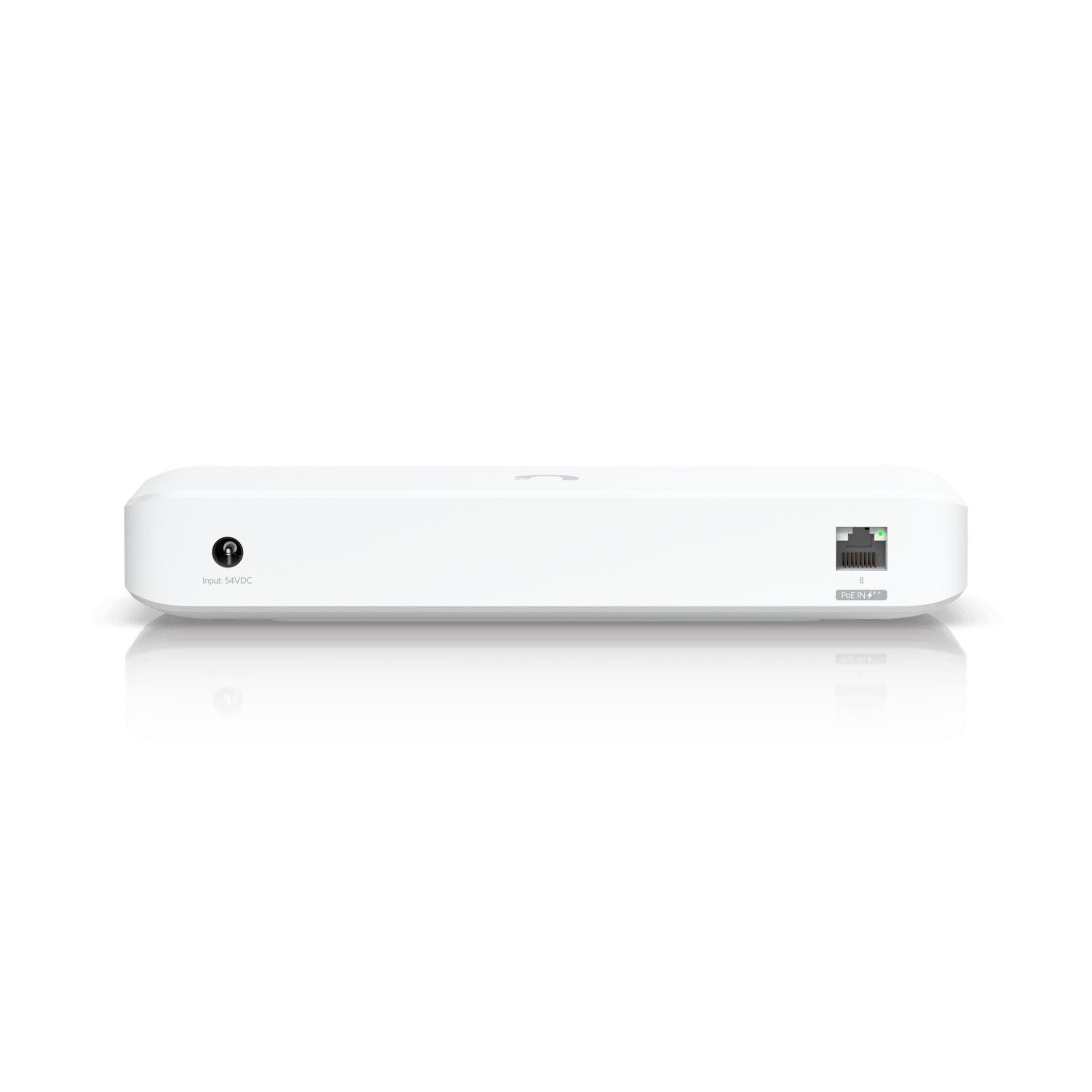

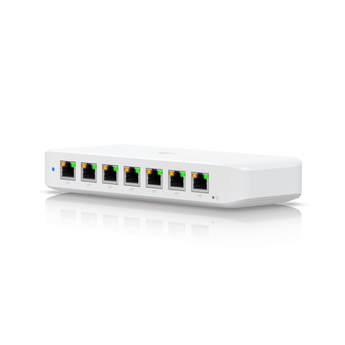

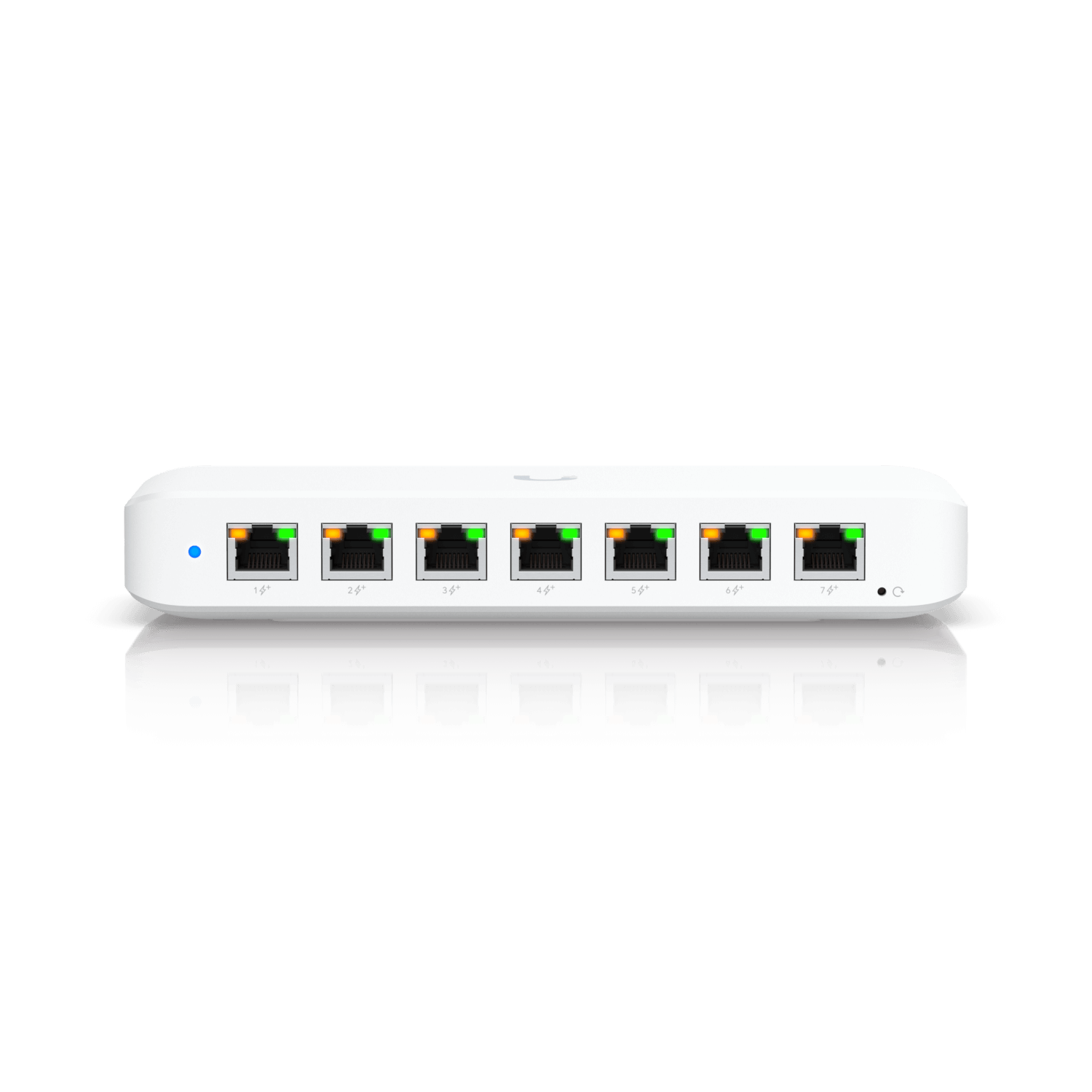

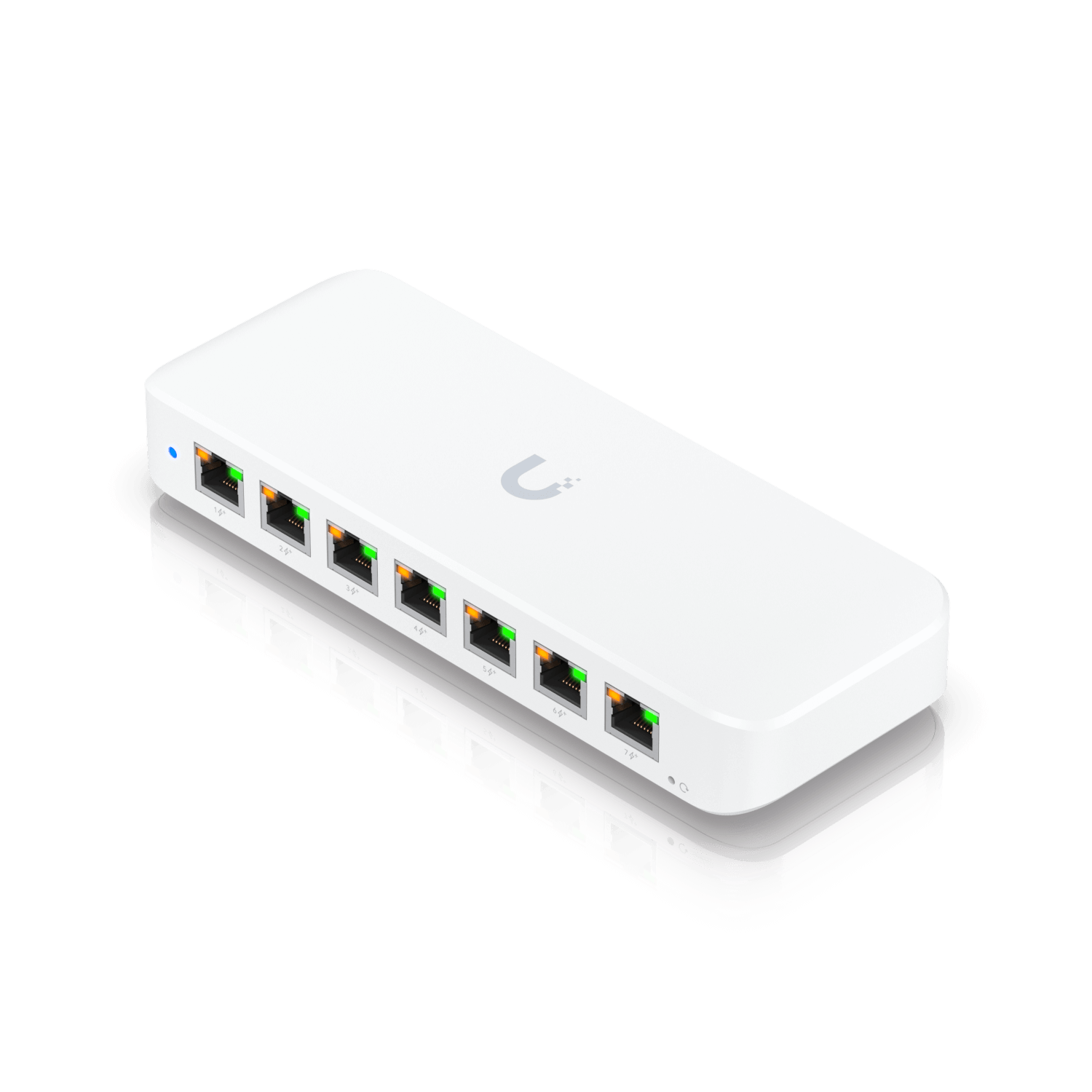

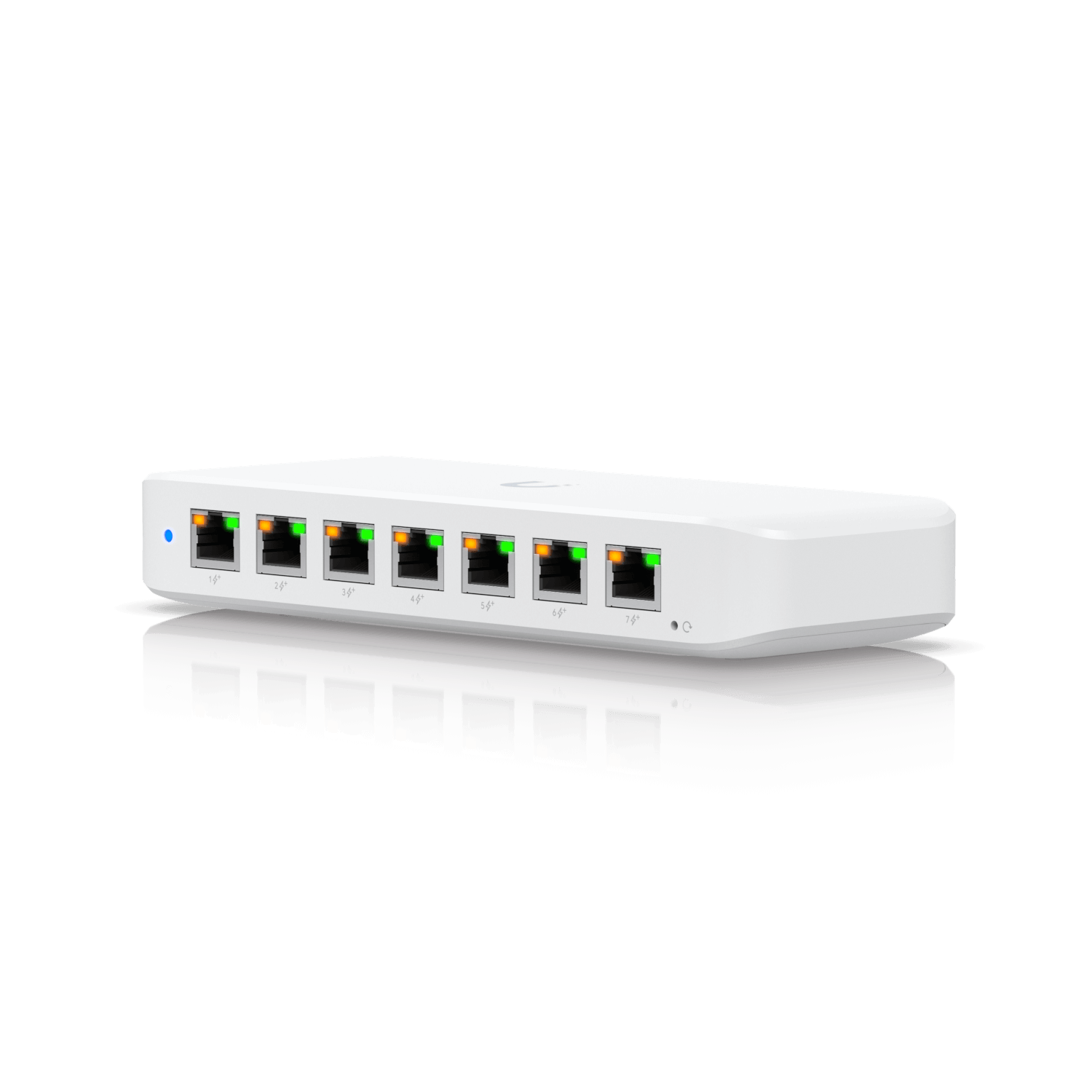

Ubiquiti UniFi Switch Ultra 8-Port PoE+ Gigabit Switch with PoE++ Input
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Versatility in a Compact Design
The Ubiquiti UniFi Switch Ultra (USW-Ultra) is a compact and powerful Layer 2 Gigabit switch, offering a versatile solution for expanding your network. Its fanless, compact design allows for flexible installation on a desktop or wall. This switch is engineered for efficiency and performance, making it an ideal choice for powering devices such as IP cameras, VoIP phones, and access points.
Flexible Powering Options
The USW-Ultra features one PoE++ input port and seven PoE+ output ports, providing robust power distribution to your connected devices. The total PoE availability is dependent on the power source, offering scalability to meet your specific needs. With a PoE++ input, the switch provides up to 42W of total PoE power. Alternatively, using a 60W AC adapter delivers 52W of power, and a 210W AC adapter can supply up to 202W. Please note that a power adapter is not included with the USW-Ultra and must be purchased separately.
Robust Performance and Management
This switch delivers a total non-blocking throughput of 8 Gbps and a switching capacity of 16 Gbps, ensuring smooth data flow across all ports without any packet loss. As part of the UniFi ecosystem, the USW-Ultra is managed through the intuitive UniFi Network application (version 8.0.28 and later), allowing for centralized configuration and monitoring of your network.
Advanced Layer 2 Features
The USW-Ultra supports a range of advanced Layer 2 switching protocols, including port isolation, storm control, port mirroring, and flow control, giving you granular control over your network traffic.
| Mechanical | |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Networking Interface | (8) GbE RJ45 ports |
| PoE Interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Power Method | PoE++ Input AC/DC Adapter (Not Included) |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 9W (Excluding PoE output) with PoE input 8W (Excluding PoE output) with AC adapter input |
| Total Available PoE | PoE++ input: 42W PoE+ input: 16W 60W AC adapter input: 52W 210W AC adapter input: 202W* |
| Max. PoE+ Wattage per Port by PSE | 30W |
| Environmental | |
| Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 8.0.28 and later |
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F).
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
