Uniview

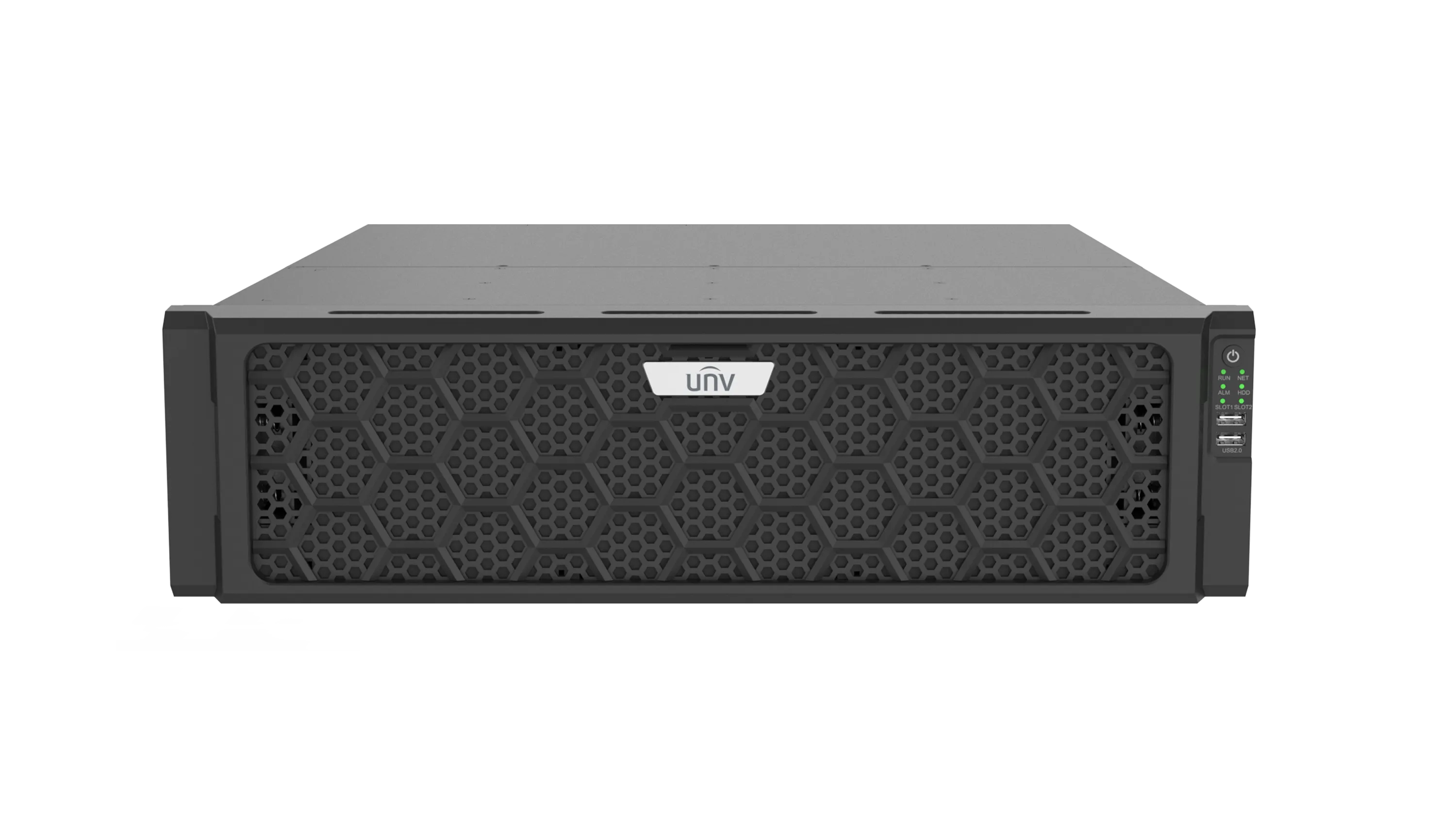

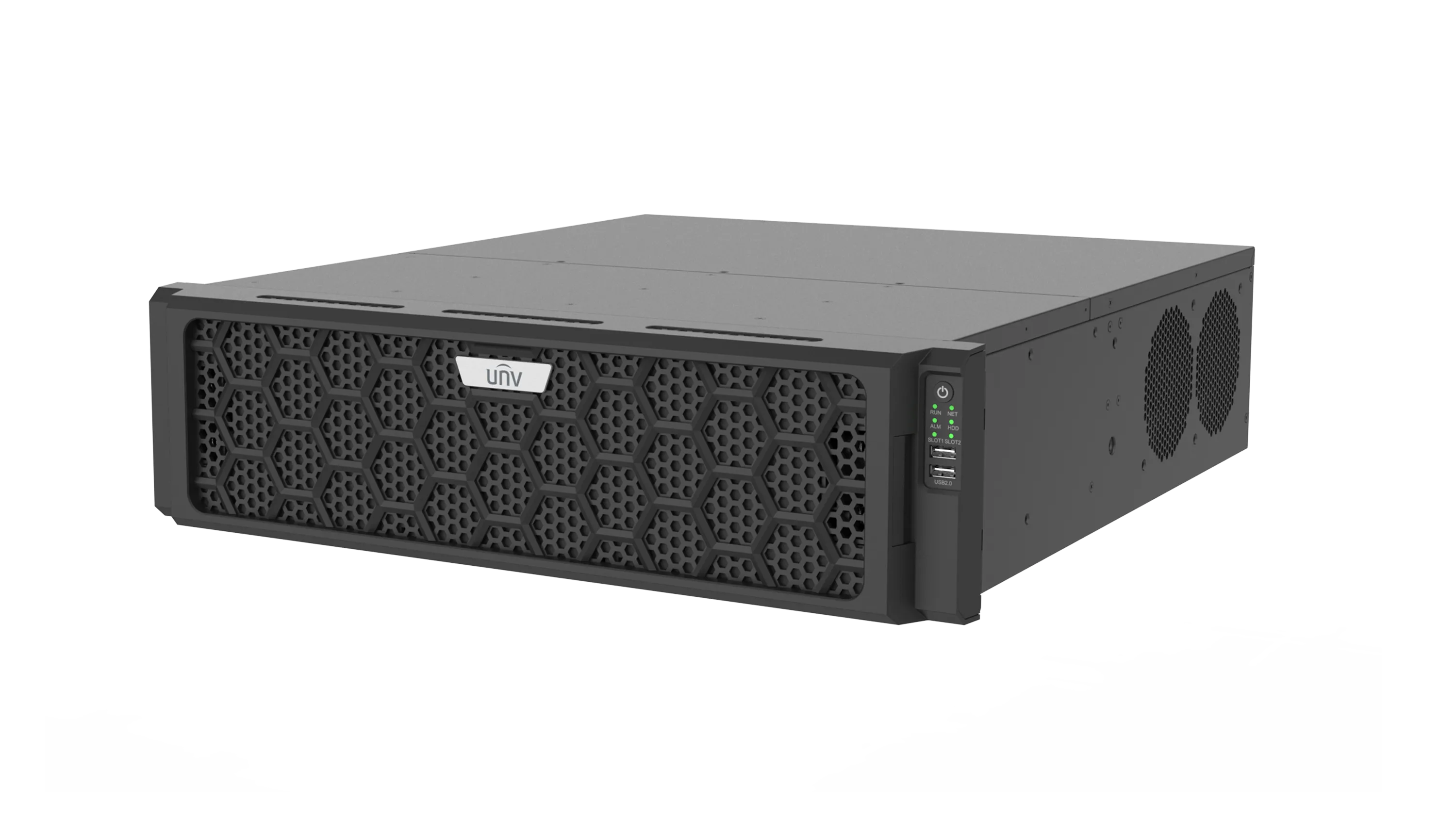

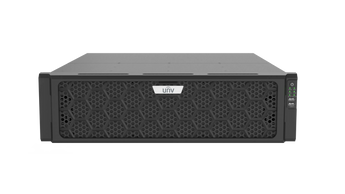

Uniview PRO Series 64-Channel 8K NVR with 16 Hot-Swap HDD Bays and RAID
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Enterprise-Grade Surveillance Power and Massive Storage Capacity
Experience unparalleled surveillance performance with the Uniview PRO Series 64-Channel Network Video Recorder. Engineered for the most demanding, large-scale security applications, this NVR provides a robust and scalable solution for comprehensive monitoring. It supports up to 64 IP camera inputs and features an astonishing 16 internal SATA drive bays, allowing for immense storage capacity. With cutting-edge features like 8K resolution output, extensive RAID support, and intelligent analytics, this recorder is the ultimate cornerstone for your enterprise security system.
Key Features:
- High-Channel Capacity: Supports up to 64 IP channels, with the flexibility to expand to 128, making it ideal for large commercial, industrial, and infrastructure projects.
- Massive, Redundant Storage: Equipped with 16 SATA HDD slots (up to 16TB each) and supports hot-swapping for seamless drive replacement. Extensive RAID 0, 1, 5, 6, 10, 50, and 60 configurations protect your critical data from drive failure.
- Stunning 8K Ultra HD Output: Features dual HDMI outputs, with the primary output supporting resolutions up to 8K (7680x4320) for incredibly detailed live views and playback on advanced displays.
- Advanced Video Compression: Utilizes Ultra 265, H.265, and H.264 video formats to significantly reduce bandwidth and storage consumption without compromising image quality.
- Intelligent AI Analytics: Empower your security with smart features like human and vehicle detection, face detection, intrusion detection, people counting, and traffic monitoring for proactive threat identification.
- Uninterrupted Reliability: ANR (Automatic Network Replenishment) technology ensures continuous recording during network outages. The system also supports N+1 hot spare and optional redundant power supplies for maximum uptime.
Comprehensive Specifications
| Video/Audio Input | |
|---|---|
| IP Video Input | 64-channel (expandable to 128) |
| Two-way Audio | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Video/Audio Output | |
| HDMI/VGA Output | 2 x HDMI, 2 x VGA. Independent outputs supported. |
| HDMI1 Recording Resolution | 8K (7680x4320)/60Hz, 4K (3840x2160)/30Hz, and lower |
| HDMI2 Recording Resolution | 4K (3840x2160)/30Hz, 1920x1080p/60Hz, and lower |
| VGA Recording Resolution | 1920x1080p/60Hz and lower |
| Audio Output | 2-ch, RCA |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Recording Resolution | Up to 32MP |
| Synchronous Playback | 16-ch |
| Hard Disk | |
| SATA | 16 SATA interfaces |
| Capacity | Up to 16TB for each HDD |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| HDD Management | Hot-swap supported |
| External Interface | |
| Network Interface | 2 x RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| USB Interface | Front panel: 2 x USB 2.0, Rear panel: 2 x USB 3.0 |
| Serial Interface | 1 x RS-232, 1 x RS-485 |
| Alarm In/Out | 16-ch / 10-ch |
| General | |
| Power Supply | 100 ~ 240V AC (Redundant power supply optional) |
| Power Consumption | ≤ 50W (without HDD) |
| Working Environment | -10°C ~ +55°C (14°F ~ 131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 482mm × 519mm × 132mm (19.0" × 20.4" × 5.2") |
| Weight (without HDD) | ≤ 10 Kg (22.05 lb) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
