Uniview

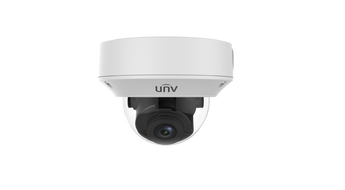

UNV-H.264 - 1.3MP Fixed Dome Camera
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust Surveillance for Demanding Environments
Introducing the Uniview 1.3MP Fixed Dome Camera, a rugged and reliable surveillance solution designed for superior performance in any condition. Engineered to be both vandal-resistant (IK10) and weatherproof (IP66), this camera is built to withstand physical impact and harsh environmental conditions, from -40°C to 60°C. Its robust construction ensures continuous operation, making it the perfect choice for securing outdoor areas, warehouses, parking lots, and other high-risk locations.
Clarity and Versatility, Day or Night
Capture crisp, clear 1.3 Megapixel (1280x960) resolution video at a smooth 30 frames per second. The camera features a versatile 2.8-12mm manual vari-focal lens, allowing you to adjust the horizontal angle of view from a wide 90° to a narrow 28° for precise monitoring of any scene. When darkness falls, the powerful Smart IR technology automatically adjusts to provide clear, low-light surveillance up to 30 meters (98 ft) without overexposing subjects. Digital WDR and 3D Digital Noise Reduction (DNR) further enhance image quality in challenging lighting by balancing contrast and minimizing graininess.
Smart Features and Flexible Integration
This camera is packed with intelligent features to optimize your surveillance. It supports H.264 and MJPEG video compression for efficient bandwidth and storage management. With support for Power over Ethernet (PoE), installation is simplified by using a single cable for both power and data. For added flexibility, it includes a built-in PoE splitter that can output DC 12V power for other devices. The camera is ONVIF compliant, ensuring seamless integration with a wide range of third-party video management systems. Onboard storage is available via a Micro SD card slot (up to 128 GB), and features like 9:16 Corridor Mode and Region of Interest (ROI) allow for customized and efficient monitoring.
Technical Specifications
| Camera | |
| Sensor | 1/3", 1.3 megapixel, progressive scan CMOS |
| Lens | 2.8 ~ 12 mm @F1.4, Manual Zoom/Focus |
| Angle of View (H) | 90.0° (wide) ~ 28° (tele) |
| Shutter | Auto/Manual, 1/6 ~ 1/8000 s |
| Minimum Illumination | Colour: 0.03 Lux (F1.4, 50IRE); B/W: 0.01 Lux (F1.4, 50IRE) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) |
| S/N Ratio | >50dB |
| WDR | Digital WDR |
| Video | |
| Max. Resolution | 1280 × 960 |
| Video Compression | H.264, MJPEG |
| Frame Rate | 960P (1280×960): 30 fps; 720P (1280×720): 30 fps; D1 (720×576): 25 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, QoS, NTP, FTP, HTTP, SNMP, SIP |
| Compatible Integration | ONVIF, IMOS, API |
| Interface | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power Consumption | Max. 6.6 W (PoE: Max. 7.2 W) |
| Power Output | DC12V Power Output With PoE |
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Φ5.8” x 4.4”) |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 90% RH (non-condensing) |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
