Victron

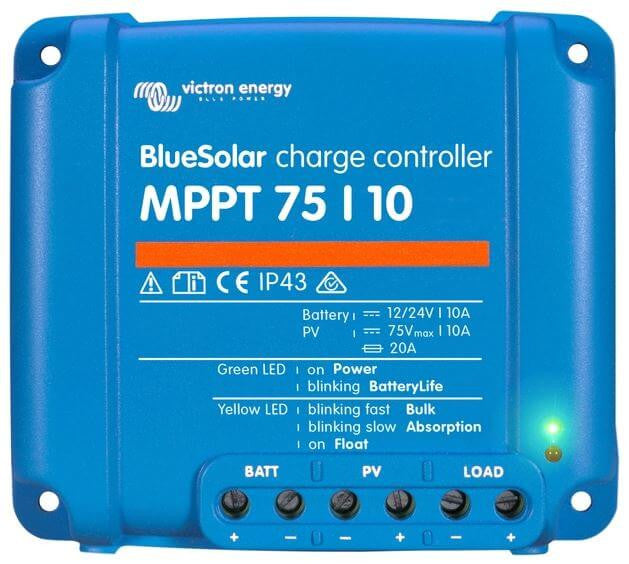

Victron BlueSolar MPPT 75/10 Charge Controller | VIC-BSC7510-MPPT
Pickup available at NexGen Computing
Usually ready in 24 hours
Maximize Your Solar Harvest with Victron's Ultra-Fast MPPT Technology
Unlock the full potential of your solar panels with the Victron BlueSolar MPPT 75/10 Charge Controller. A solar charger's role is to gather energy from your solar panels and store it efficiently in your batteries. The BlueSolar controller utilizes the latest and fastest technology to maximize this energy harvest, ensuring a full charge in the shortest possible time. This intelligent process not only optimizes power but also maintains battery health, significantly extending its lifespan. In conditions with changing light intensity, such as a partially clouded sky, this ultra-fast MPPT controller can improve energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers.
Intelligent Battery Management for Longevity
The innovative BatteryLife feature prevents damage from running your batteries flat. When a solar charge controller cannot fully recharge the battery in a single day, the battery often cycles between a partially charged state and the end of discharge state. This can destroy a lead-acid battery in a matter of weeks or months. The BatteryLife algorithm intelligently monitors the battery's state of charge and, if necessary, slightly increases the load disconnect level day by day until the harvested solar energy is sufficient to recharge the battery to nearly 100%.
Advanced Detection in Partial Shading
In situations with partial shading, the BlueSolar MPPT 75/10 showcases its advanced Maximum Power Point Detection. Conventional MPPTs might lock to a local Maximum Power Point (MPP) that isn't optimal. However, the innovative BlueSolar algorithm will always maximize the energy harvest by locking to the most favorable MPP.
Comprehensive Electronic Protection
This charge controller is equipped with extensive electronic protection. An internal temperature sensor compensates the charging voltage based on the ambient temperature. If the system's temperature rises above 40°C, the controller will automatically reduce its output current to protect itself. It also includes safety measures against overheating, short circuits, and reverse polarity of the solar panels or battery.
| Specification | Value |
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 10A |
| Nominal PV Power, 12V | 145W |
| Nominal PV Power, 24V | 290W |
| Maximum PV Open Circuit Voltage | 75V |
| Max. PV Short Circuit Current | 10A |
| Maximum Efficiency | 98% |
| Self-consumption | 12V: 20 mA / 24V: 10 mA |
| Charge Voltage 'absorption' | 14.4V / 28.8V (adjustable) |
| Charge Voltage 'float' | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV / °C resp. -32 mV / °C |
| Operating Temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Protection Class | IP43 (electronic components), IP22 (connection area) |
| Weight | 0.5 kg |
| Dimensions (h x w x d) | 100 x 113 x 40 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
