Victron

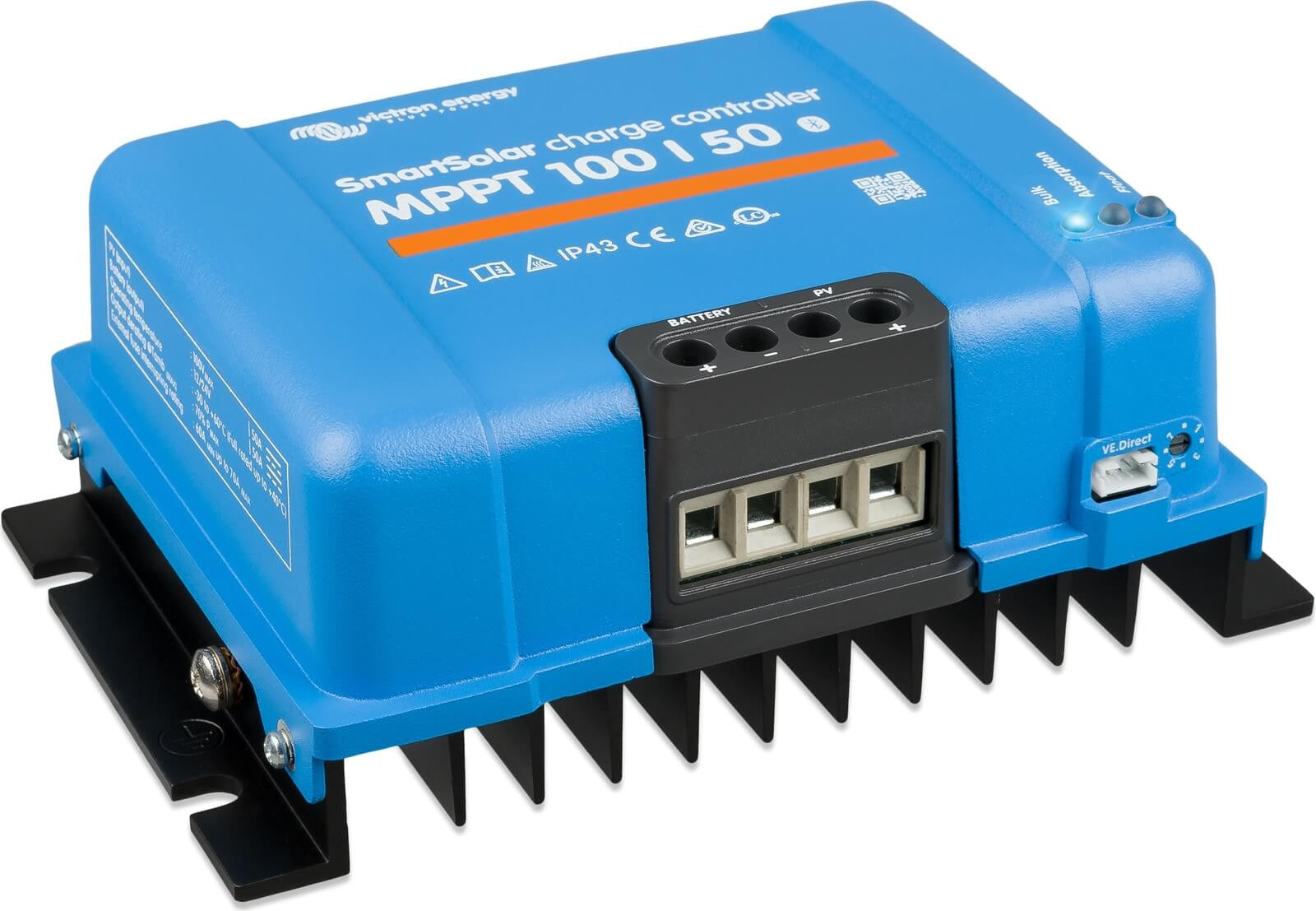

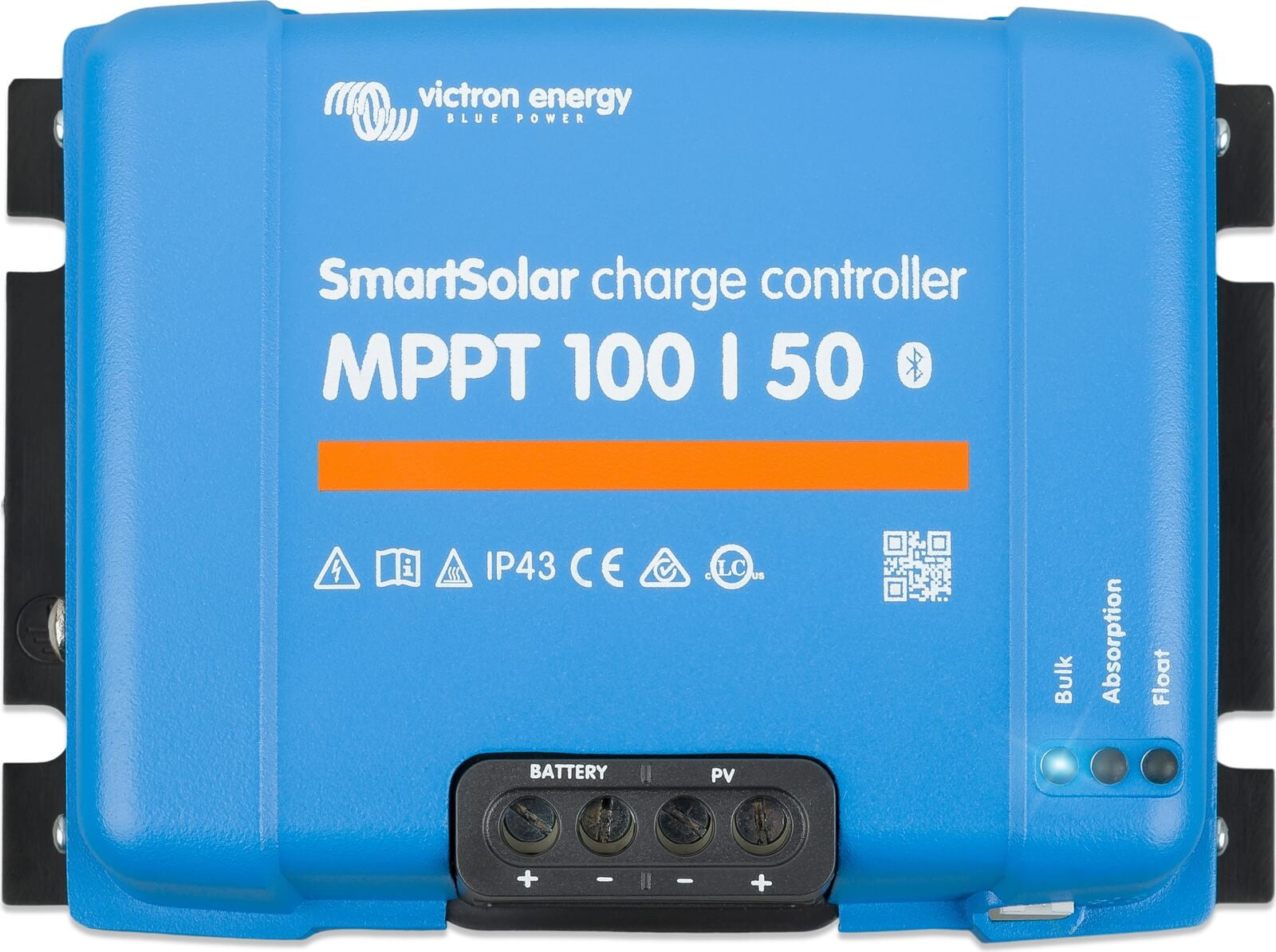

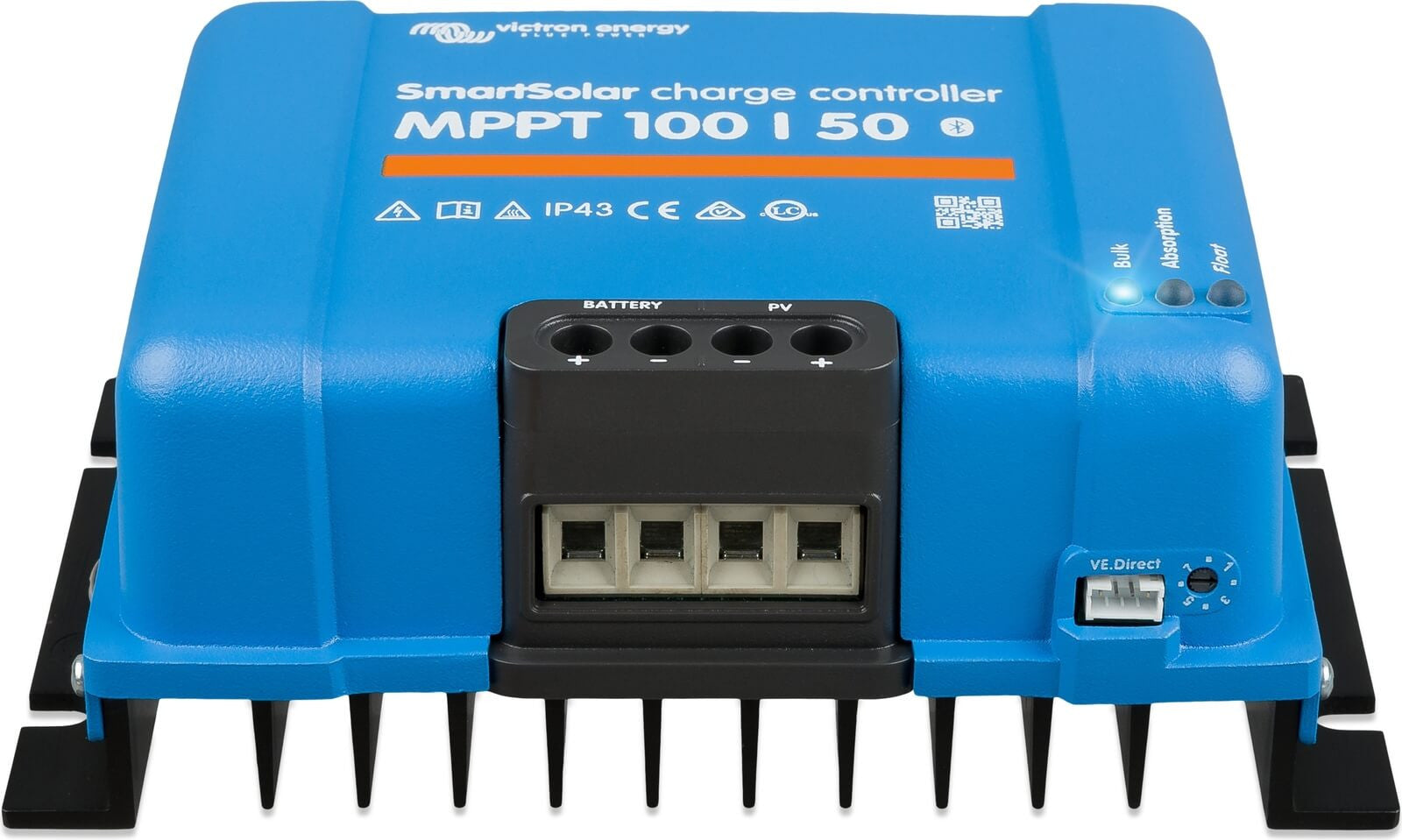

Victron SmartSolar MPPT 100/50 Charge Controller | VIC-SSC10050-MPPT
Pickup available at NexGen Computing
Usually ready in 24 hours
Maximize Your Solar Harvest with Intelligent Charging
Unlock the full potential of your solar array with the Victron SmartSolar MPPT 100/50 Charge Controller. This advanced solar charger utilizes ultra-fast Maximum Power Point Tracking (MPPT) to intelligently harvest every drop of available power from your panels, boosting your energy collection by up to 30% compared to conventional PWM controllers. Even in partially shaded conditions or when light intensity is constantly changing, the SmartSolar's innovative algorithm ensures maximum energy harvest by locking onto the optimal Maximum Power Point (MPP).
Seamless Monitoring and Control with Built-in Bluetooth
The future of solar system management is here. With integrated Bluetooth, you can effortlessly monitor and configure your SmartSolar MPPT 100/50 from your smartphone or tablet using the VictronConnect app. This wireless solution allows you to view real-time data, customize settings, and update the controller's firmware without the need for any additional dongles or accessories. For more advanced setups, the VE.Direct port provides a wired data connection to other Victron devices like the Color Control GX, a PC, or other monitoring systems.
Superior Battery Health and Longevity
The SmartSolar MPPT 100/50 is engineered to extend the life of your batteries. Its intelligent and flexible multi-stage charging algorithm is fully programmable to suit a wide range of battery types, including AGM, Gel, lead-acid, and lithium. The internal temperature sensor compensates for absorption and float charge voltages, ensuring your batteries are charged optimally and protected from over-temperature. This controller can even recover a severely depleted battery, initiating a charge even if the battery has been discharged to zero volts.
Robust and Reliable Performance
Designed for durability, the SmartSolar MPPT 100/50 features extensive electronic protection against over-temperature, short circuits, and reverse polarity of both the PV panels and the battery. With an outstanding conversion efficiency of up to 98% and no cooling fan, it operates silently and reliably. The robust construction ensures full output current up to 40°C (104°F).
Technical Specifications
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 50A |
| Nominal PV Power, 12V | 700W |
| Nominal PV Power, 24V | 1400W |
| Maximum PV Open Circuit Voltage | 100V |
| Maximum PV Short Circuit Current | 60A |
| Maximum Efficiency | 98% |
| Self-consumption | 12V: 30mA, 24V: 20mA |
| Charge Voltage 'absorption' | 14.4V / 28.8V (Adjustable) |
| Charge Voltage 'float' | 13.8V / 27.6V (Adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV / °C resp. -32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating Temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data Communication Port | VE.Direct |
| Enclosure Color | Blue (RAL 5012) |
| Power Terminals | 16 mm² / AWG6 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1.3 kg (2.87 lbs) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.12 x 7.32 x 2.76 in) |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
